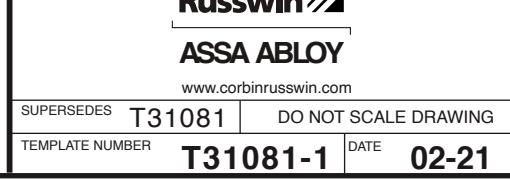

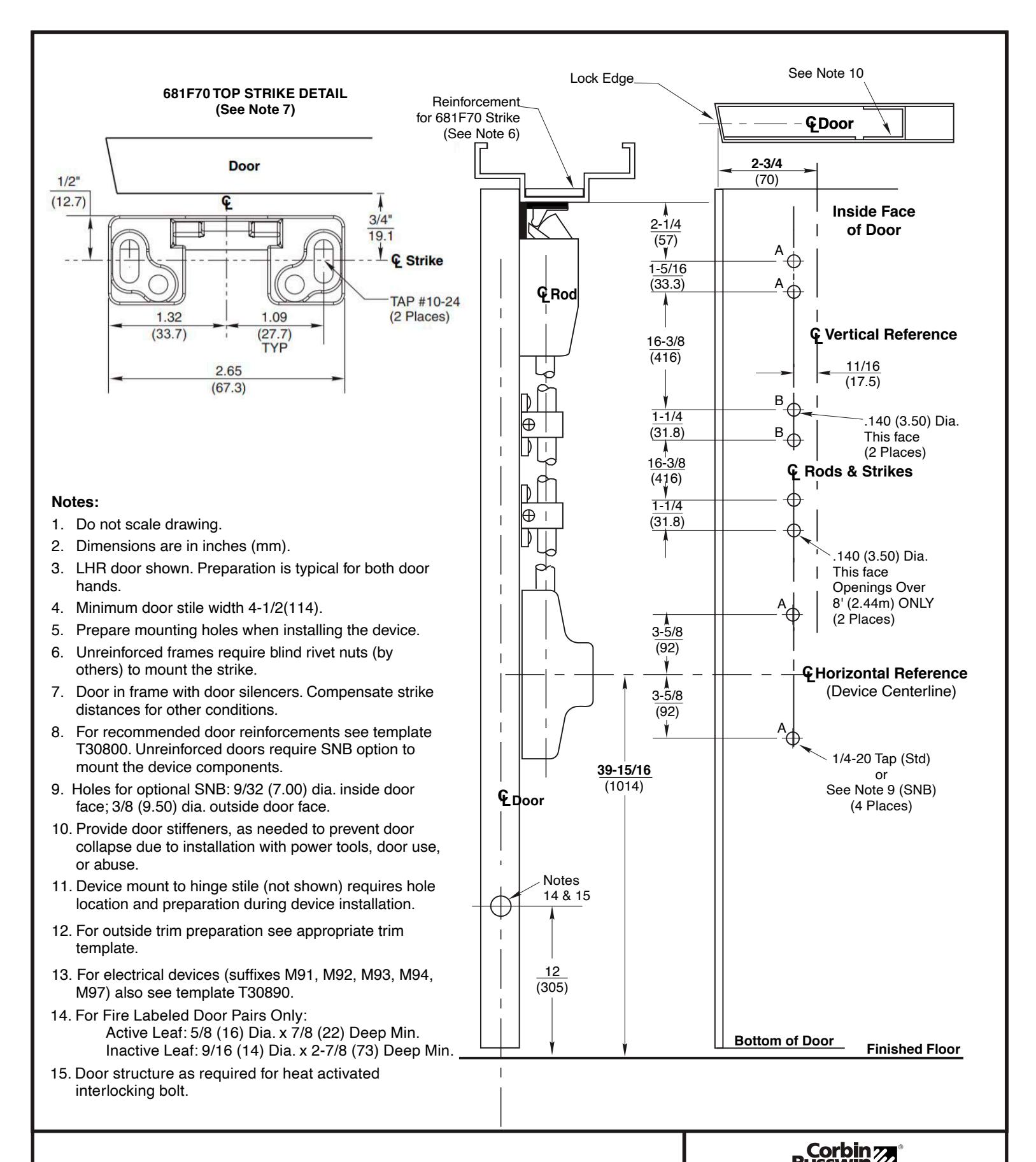

Corbin Russwin ED5470(B) Wide Stile SVR M55 Option Less Bottom Rod Metal Door and Frame Template_T31081 diagram on page 1

ED5470 M55 & ED5470B M55 Series Surface Vertical Rod Exit Devices

For Metal Door & Frame Application Less Bottom Rod (M55 Option)

Corbin Russwin ED5470(B) Wide Stile SVR M55 Option Less Bottom Rod Metal Door and Frame Template_T31081 diagram on page 1
