Corbin Russwin ED5470(B) Wide Stile SVR M107 Option S09 Floor Strike Windstorm Certified Metal Door and Frame wi…_T31000 diag

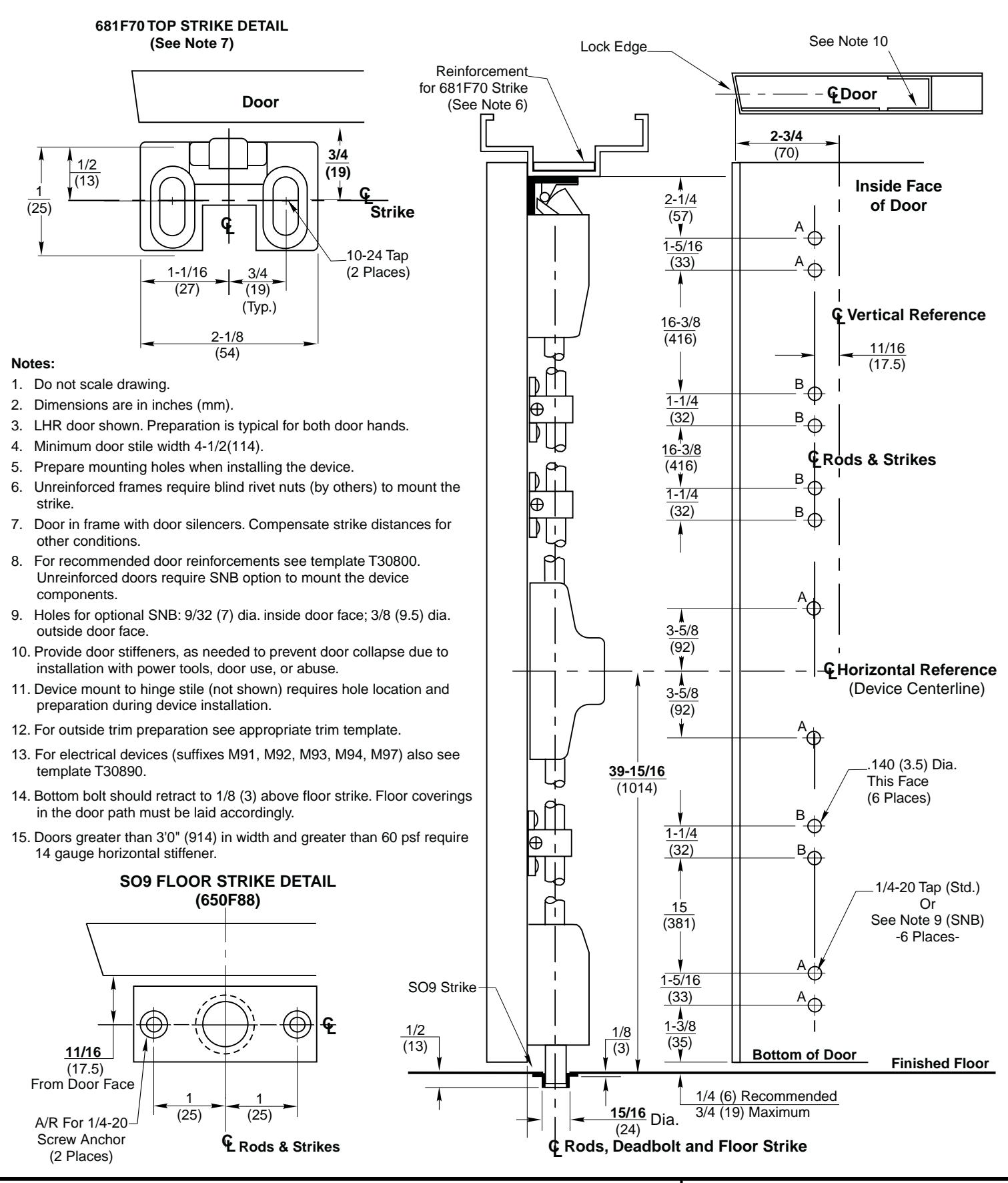

WINDSTORM CERTIFIED ED5470 x M107 Series & ED5470B x M107 Series Surface Vertical Rod Exit Device with SO9 Floor Strike Application for Metal Door and Frame without Threshold

Corbin Russwin ED5470(B) Wide Stile SVR M107 Option S09 Floor Strike Windstorm Certified Metal Door and Frame wi…_T31000 diag

T31000 8-05 DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER DATE
