Corbin Russwin ED5470(B) Wide Stile SVR M107 Option S09 Floor Strike Windstorm Certified Metal Door and Frame wi…_T30999 diag

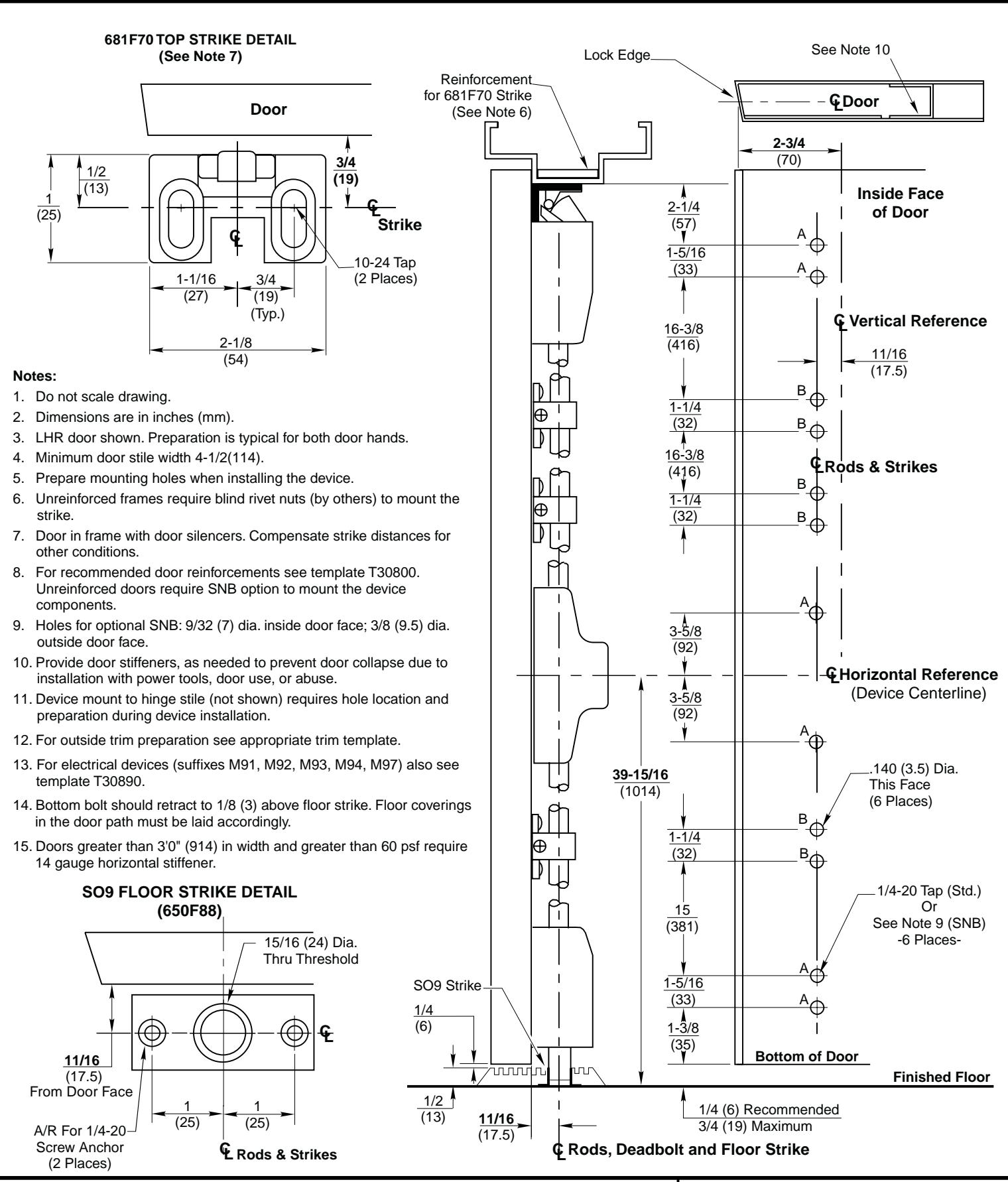

WINDSTORM CERTIFIED ED5470 x M107 & ED5470B x M107 Series Surface Vertical Rod Exit Device with SO9 Floor Strike Application for Metal Door and Frame with 1/2" Threshold

Corbin Russwin ED5470(B) Wide Stile SVR M107 Option S09 Floor Strike Windstorm Certified Metal Door and Frame wi…_T30999 diag

SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER T20000 DATE O OF

T30999

DATE 8-05
