Corbin Russwin ED5470(B) M55 Wide Stile SVR Less Bottom Rod Metal Door and Frame Template

Original Source Document Full PDF Version

Corbin Russwin ED5470(B) M55 Wide Stile SVR Less Bottom Rod Metal Door and Frame Template_T30897 diagram on page 1

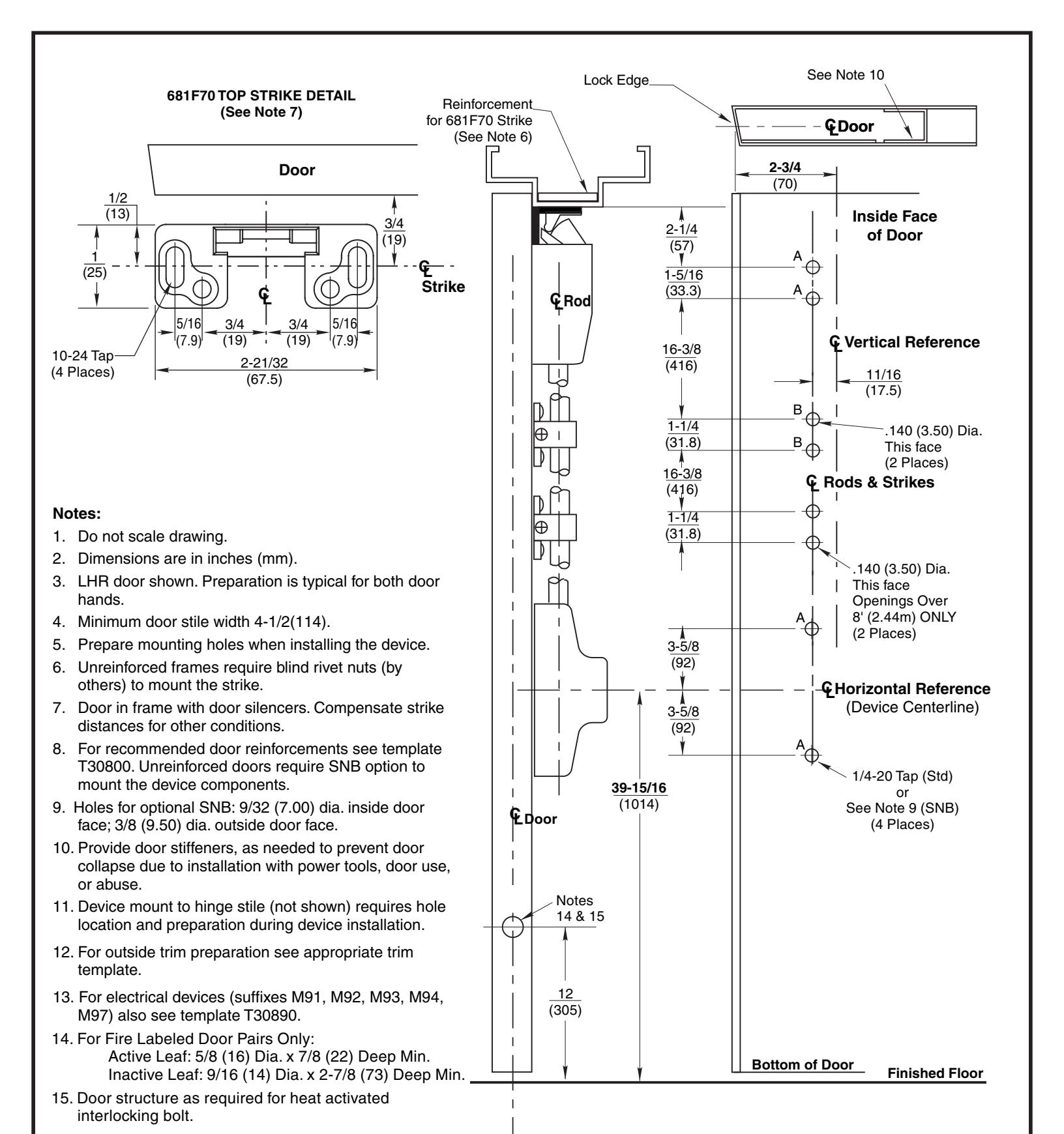

ED5470 M55 & ED5470B M55 Series Surface Vertical Rod Exit Devices

For Metal Door & Frame Application Less Bottom Rod (M55 Option)

DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER DATE www.corbinrusswin.com ® ASSA ABLOY T30897-3

T30897-4

2-21
