Corbin Russwin ED5470(B) H1000 Wide Stile SVR Standard Floor Strike Metal Door and Frame Template

Original Source Document Full PDF Version

Corbin Russwin ED5470(B) H1000 Wide Stile SVR Standard Floor Strike Metal Door and Frame Template_T30894 diagram on page 1

ED5470 H1000 & ED 5470B H1000 Series Surface Vertical Rod Exit Devices

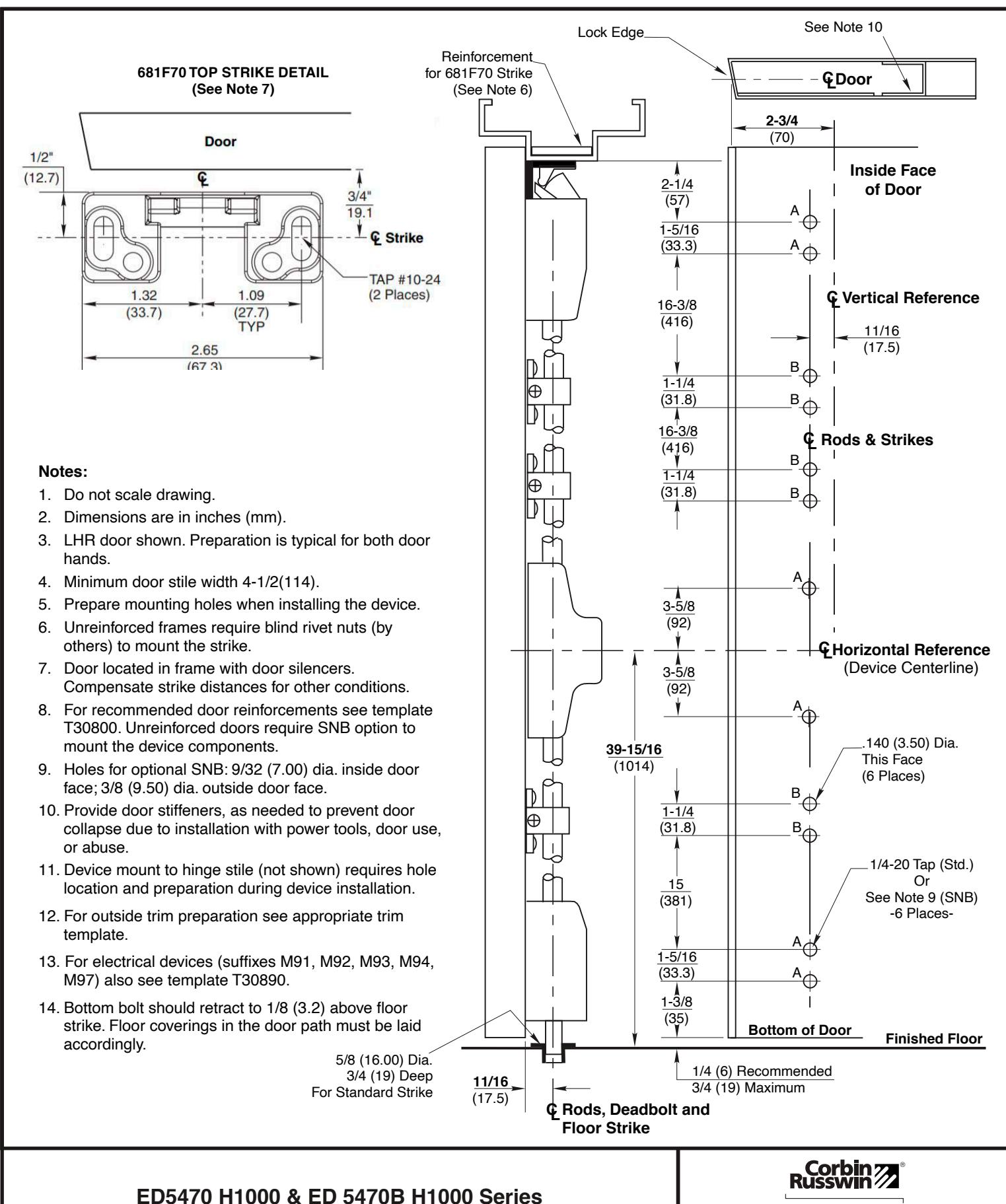

Application to Metal Door and Frame with Standard Floor Strike
