Corbin Russwin ED5470(B) H1000 Wide Stile SVR S09 Floor Strike Wood or Composite Door and H.M. Frame with 1, 2 …

Original Source Document Full PDF Version

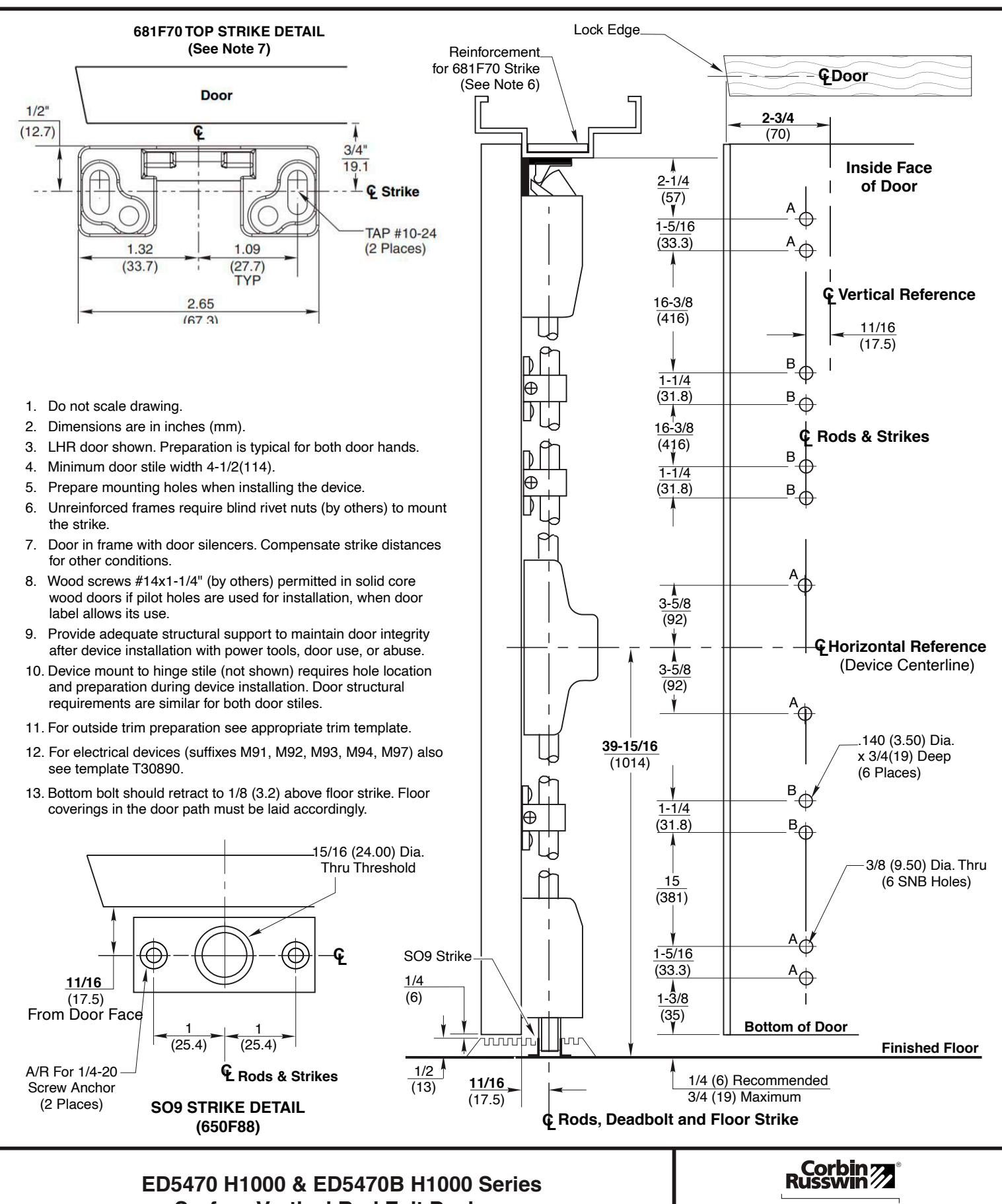

Corbin Russwin ED5470(B) H1000 Wide Stile SVR S09 Floor Strike Wood or Composite Door and H.M. Frame with 1, 2 …_T30899 diagr

Surface Vertical Rod Exit Devices

Application for Wood or Composite Door and HM Frame with 1/2" Threshold and Optional SO9 Floor Strike

T30899-3 T30899-2 02-21 DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER DATE www.corbinrusswin.com ASSA ABLOY
