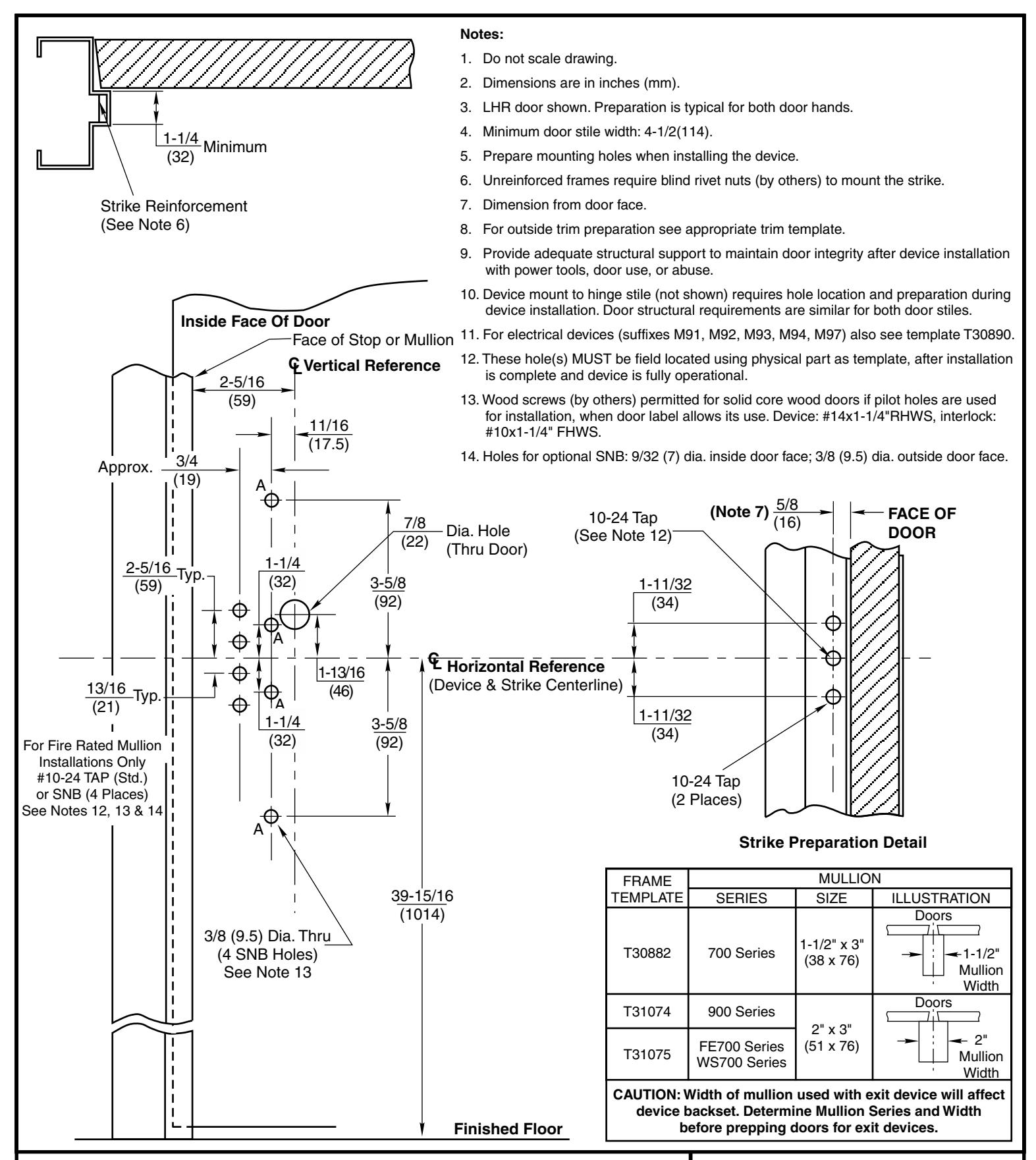

Corbin Russwin ED5202SA Wide Stile Double Cylinder SecureBolt 730F77 Strike Wood or Composite Door and H.M. Fram…_T30983 diag

ED5202SA Series Double Cylinder SecureBolt® Fire Exit Devices with 730F77 Strike

Application for Fire Labeled Wood or Composite Door and H.M. Frame or Mullion

Corbin Russwin ED5202SA Wide Stile Double Cylinder SecureBolt 730F77 Strike Wood or Composite Door and H.M. Fram…_T30983 imag

JPERSEDES T30983-3 DO NOT SCALE DRAWING

TEMPLATE NUMBER T30983-4 DATE 11-18
