Corbin Russwin ED5200SA Wide Stile SecureBolt M107 Option 710F458 Strike Windstorm Certified Metal Door and Fram…

Original Source Document Full PDF Version

Corbin Russwin ED5200SA Wide Stile SecureBolt M107 Option 710F458 Strike Windstorm Certified Metal Door and Fram…_T30996 diag

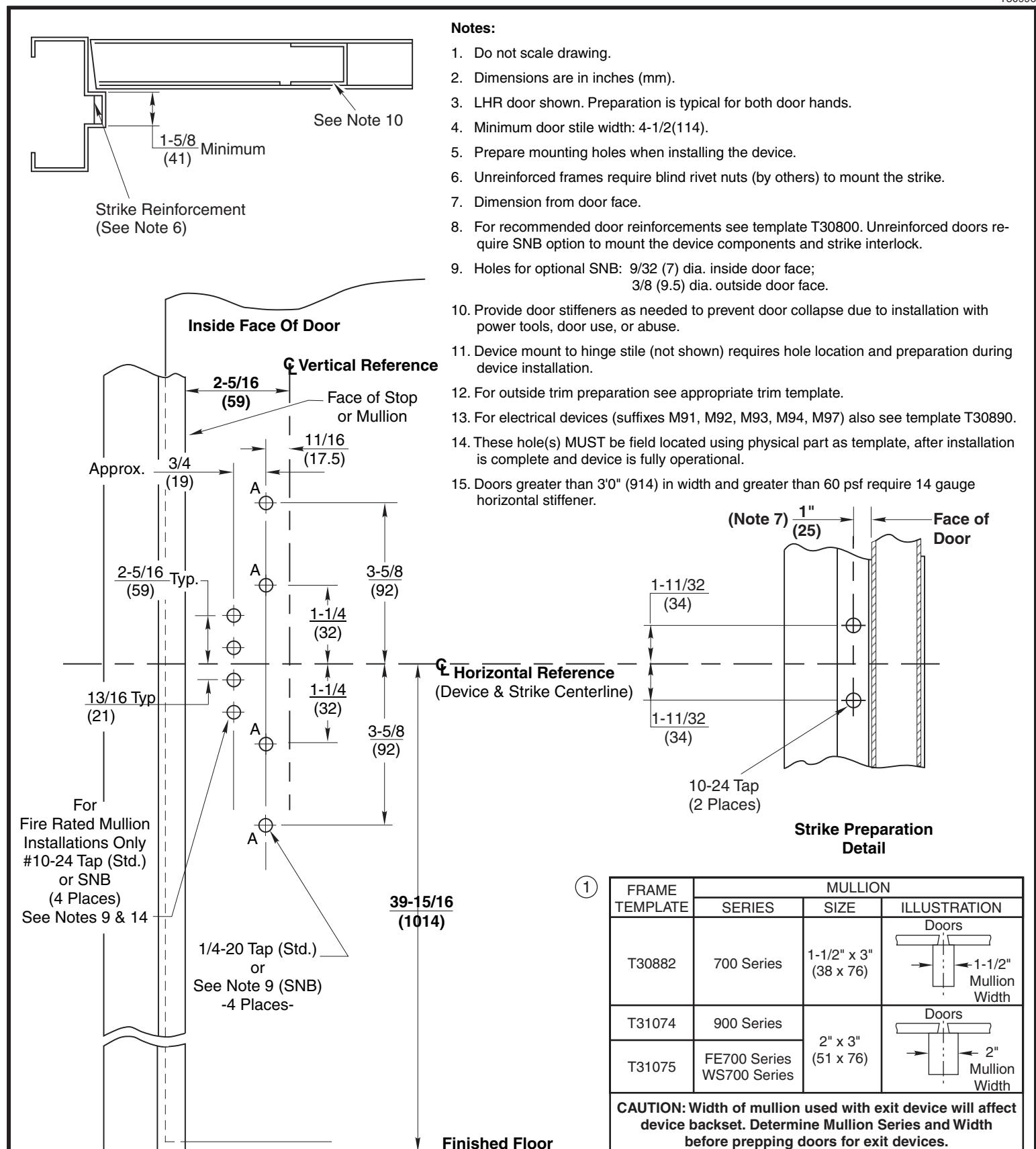

WINDSTORM CERTIFIED ED5200SA X M107 Series SecureBolt™ Fire Exit Device with 710F458 Strike

Application for Fire Labeled Metal Door and Frame or Mullion

Corbin Russwin ED5200SA Wide Stile SecureBolt M107 Option 710F458 Strike Windstorm Certified Metal Door and Fram…_T30996 diag

www.corbinrusswin.com

SUPERSEDES T30996 DO NOT SCALE DRAWING

TEMPLATE NUMBER

T30996-1

02-08
