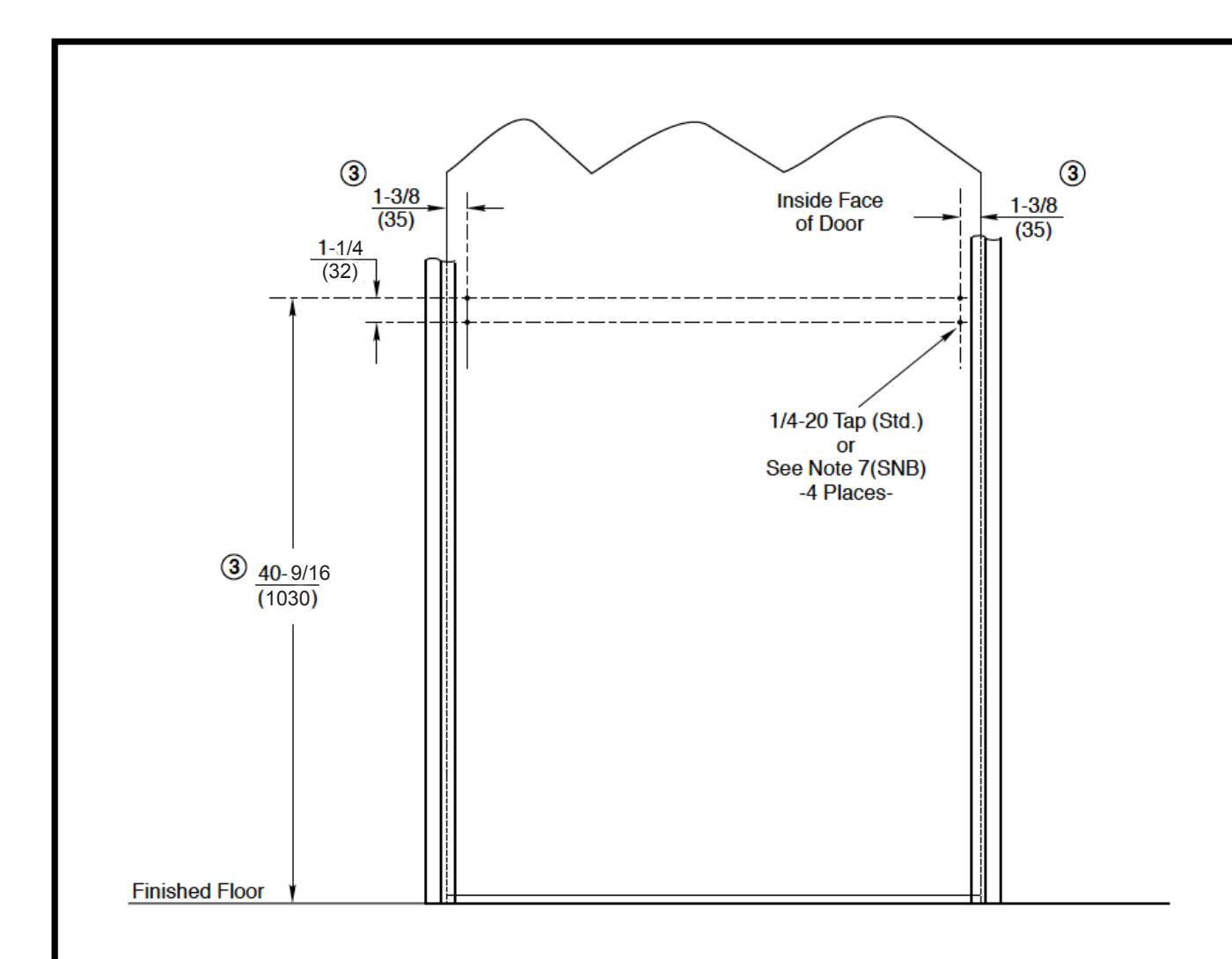

Notes:

• Do not scale drawing.
• 2. Dimensions are in inches (mm).
• 3. Minimum Stile Width: 2 (51).
• 4. Maximum door Width: 42 (1067)
• 5. Prepare mounting holes when installing the hardware.
• For recommended door reinforcements see template T30800. Unreinforced doors require SNB option to mount the hardware
• 7. Holes for optional SNB:9/32 (7.00) Dia.Inside door face; 3/8 (9.50) Dia. Outside door face.
• 8. Provide door stiffeners as needed to prevent door collapse due to installation with power tools, door use, or abuse.
