TH957
Heavy Duty Thumbpiece Trim For use with ED5000 Series Exit Device
Metal, Wood or Composite Doors
For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
TH957 Heavy Duty Thumbpiece Trim
For ED5000 Series Exit Device
Installation Instructions

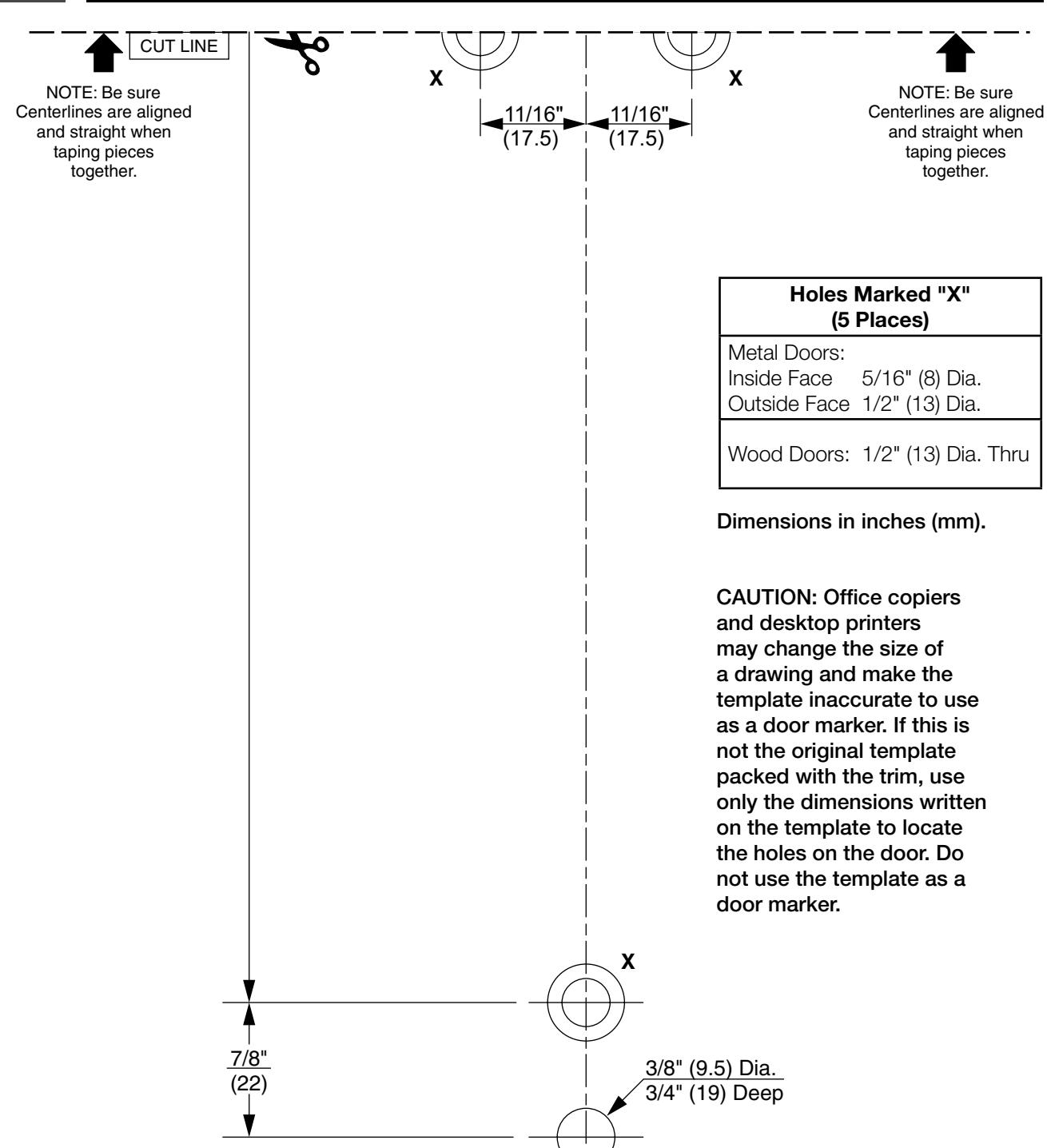

11/16" (17.5) 11/16" (17.5) 3-5/8" (92) 3-5/8" (92) 9-15/16" (252) CL HORIZONTAL REFERENCE (DEVICE AND TRIM) CL VERTICAL REFERENCE (TRIM) DOOR OUTSIDE FACE TAPE LINE Pair arrows with "template bottom"arrows and tape along Tape Line to assemble complete door marker. Pair arrows with"template bottom"arrows and tape along Tape Line to assemble complete door marker. X X 1-1/2" (38) Dia. 1-1/4" (32) Deep (6) 1/4" 1/2" (13) Dia. Thru 1 Template Top CAUTION: Office copiers and desktop printers may change the size of a drawing and make the template inaccurate to use as a door marker. If this is not the original template packed with the trim, use only the dimensions written on the template to locate the holes on the door. Do not use the template as a door marker. Dimensions in inches (mm). DOOR OUTSIDE FACE Holes Marked "X" (5 Places) Metal Doors: Inside Face 5/16" (8) Dia. Outside Face 1/2" (13) Dia. Wood Doors: 1/2" (13) Dia. Thru
TH957 Heavy Duty Thumbpiece Trim
For ED5000 Series Exit Device
Installation Instructions
2 Template Bottom
3 Trim Assembly
1. Check cylinder components.
NOTE: Cylinders longer than 1-1/8" (29) will require collars. (Figure 2)
2. Assemble cylinder.
Insert cylinder housing prongs into matching notches of escutcheon.
Pass cylinder tailpiece through cylinder collar (when required) and slot in cylinder housing cam. Fasten cylinder using two (2) mounting screws. DO NOT OVERTIGHTEN SCREWS. Figure 4
|
Corbin Russwin
Cylinder Collar Chart |
|
|---|---|
| Cylinder Length | Collar |
| 1-1/8" (29mm) | None |
| 1-1/4" (32mm) | 654F07** |
| 1-1/2" (38) | 654F08** |
**Specify Finish Door
4 Installation

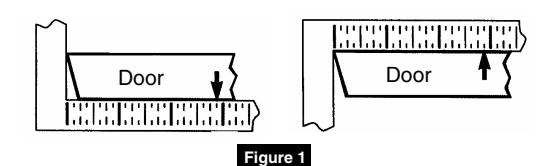

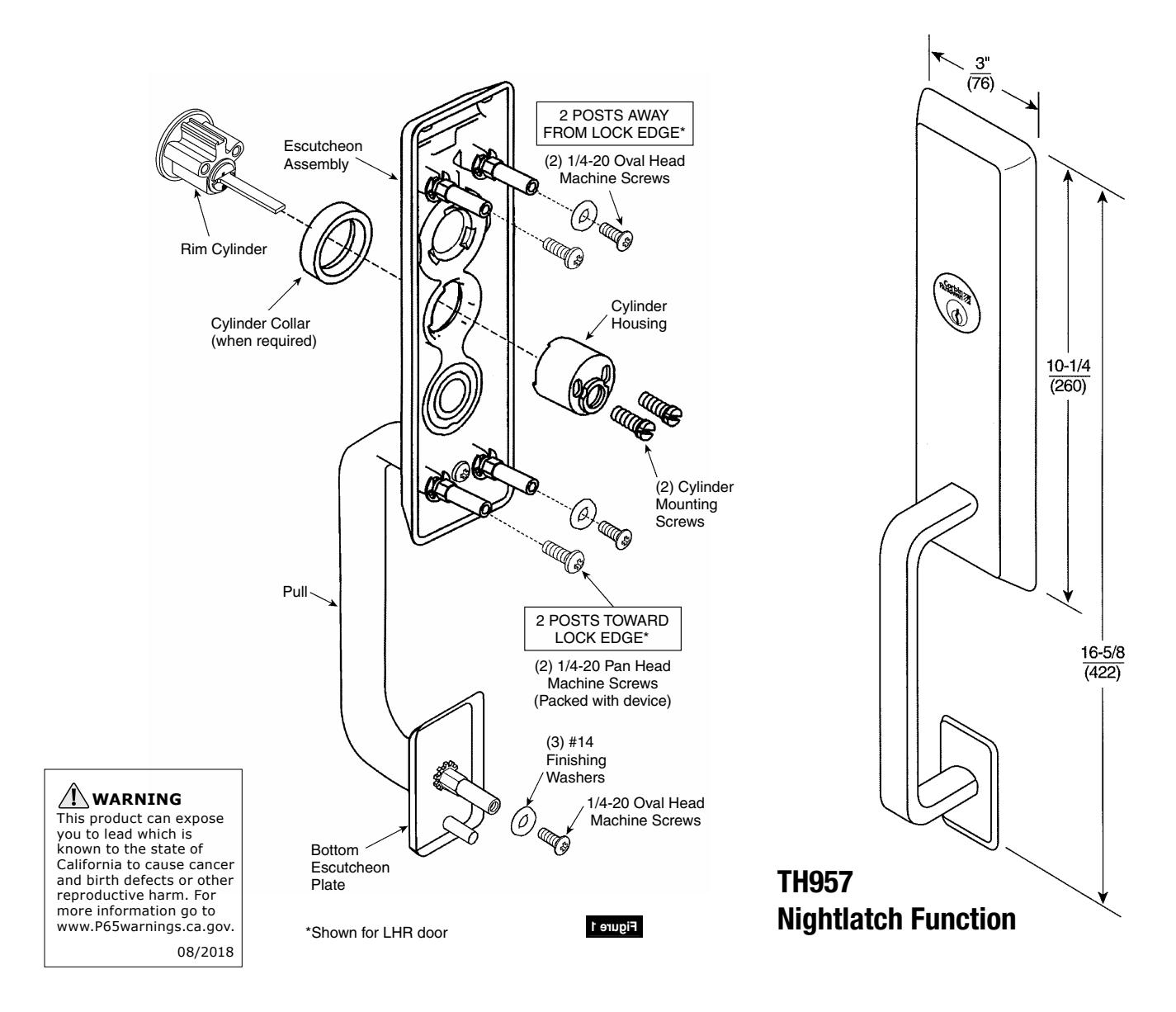

- 1. Assemble trim. (Figure 1)
- 2. After marking door inside face for device location (Device Instructions), transfer "Vertical Reference Centerline" from inside to outside door face. (Figure 3)
- 3. Transfer "Horizontal Reference Centerline" from inside to outside door face.
- 4. Align trim template and tape to outside door face. (pages 6 and 7)
- 5. Spot holes and prepare door for trim.
- 6. Mount trim to door through holes "B". Fasten, finger tight only, with three (3) screws and washers seating on door, as shown. (Figure 4) Bottom screw and washer engages lower post on pull.
NOTE:

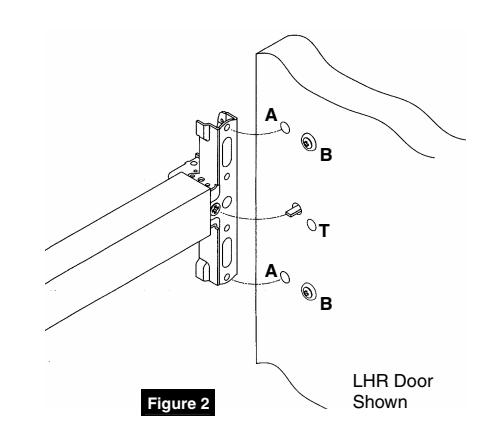

- Device is bolted to trim using holes "A" (closest to door lock edge).
- Trim spindle "T" engages with vertical cross hole of cam slot.
- Screws and washers bolt trim to door using holes "B".

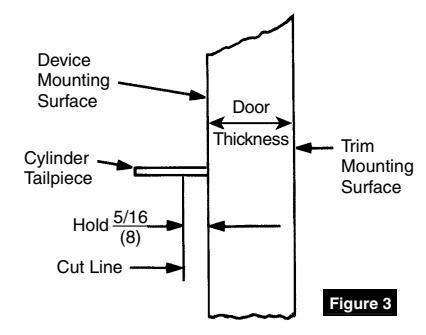

- 7. Cut cylinder tailpiece as shown. (Figure 5)
NOTE:
- Measure from device mounting surface (door face or shim surface).
- Cylinder tailpiece (T) engages with cross hole of cam slot.
- 8. Seat device so that cylinder tailpiece engages cam slot, as shown. (Figure 4) Continue as shown in device instructions.
