Template Instructions

ED5000 Series Exit Device Plastic Template Instructions FM 275 10/18

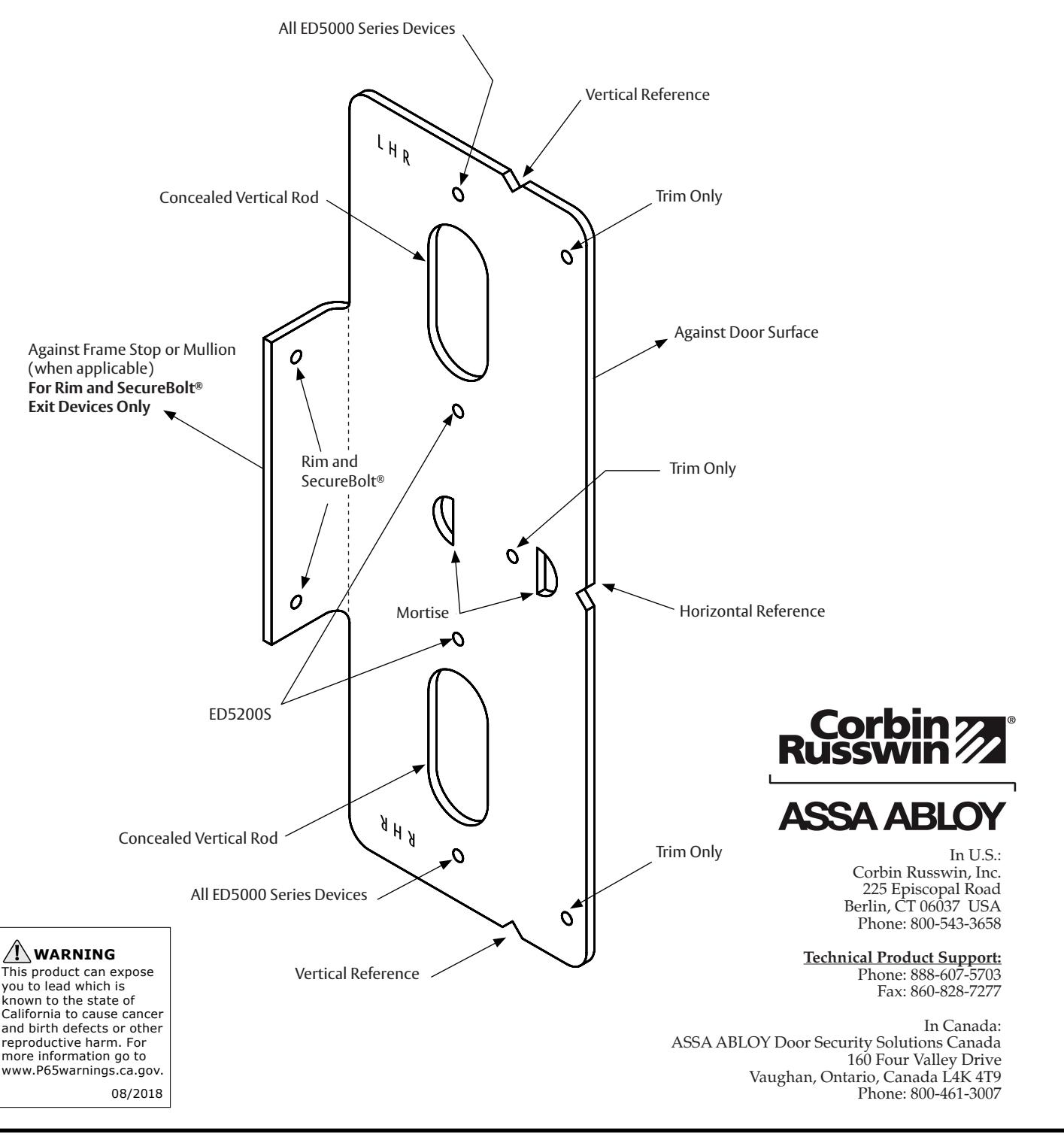

For use in conjunction with instruction sheets and door marker templates packed with exit device. Holes and slots are identified below by exit device series and trim. Prep door and frame for only those features required for the exit device being installed.
