ED5202 (A) Series

Double Cylinder

Rim Exit Device

Important

For use in conjunction with Corbin Russwin 955 Series trim

For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com (617417360) FM218 05/18

• 1. Follow 955 Series trim installation instructions. Substitute cylinder housing assembly with Double Cylinder Trim Housing Assembly supplied with device. (Figure 2) Continue with trim mounting instructions.
• 2. Follow ED5200 (A) mounting instructions supplied with device. Once complete, continue with Double Cylinder instructions below.
• 3. Pre-assemble cylinder through cylinder collar, active head cover, and cylinder housing as shown on cover page. Secure cylinder housing to cylinder with two (2) 10-24 x 3/4" cylinder screws. Keyway position should be vertical with plug in lower side of cylinder. (Figure 3)
• 4. Assemble active head cover to device by inserting cylinder tailpiece into lazy cam slot of Double Cylinder Trim Housing Assembly (Figure 2) (tailpiece length to be adjusted as needed for non-interference with opposing trim cylinder). Install and tighten two (2) 8-32 x 1/4" cover screws to active head cover.
• 5. Check for proper functional operation of trim and exit device.

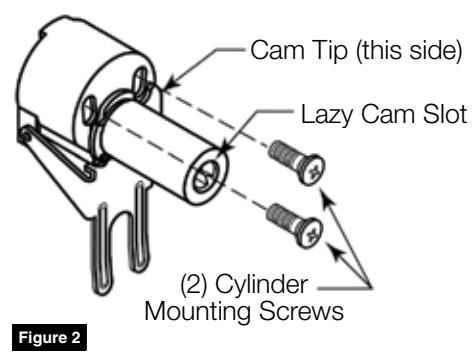

Double Cylinder Trim Housing Assembly (supplied with device)
