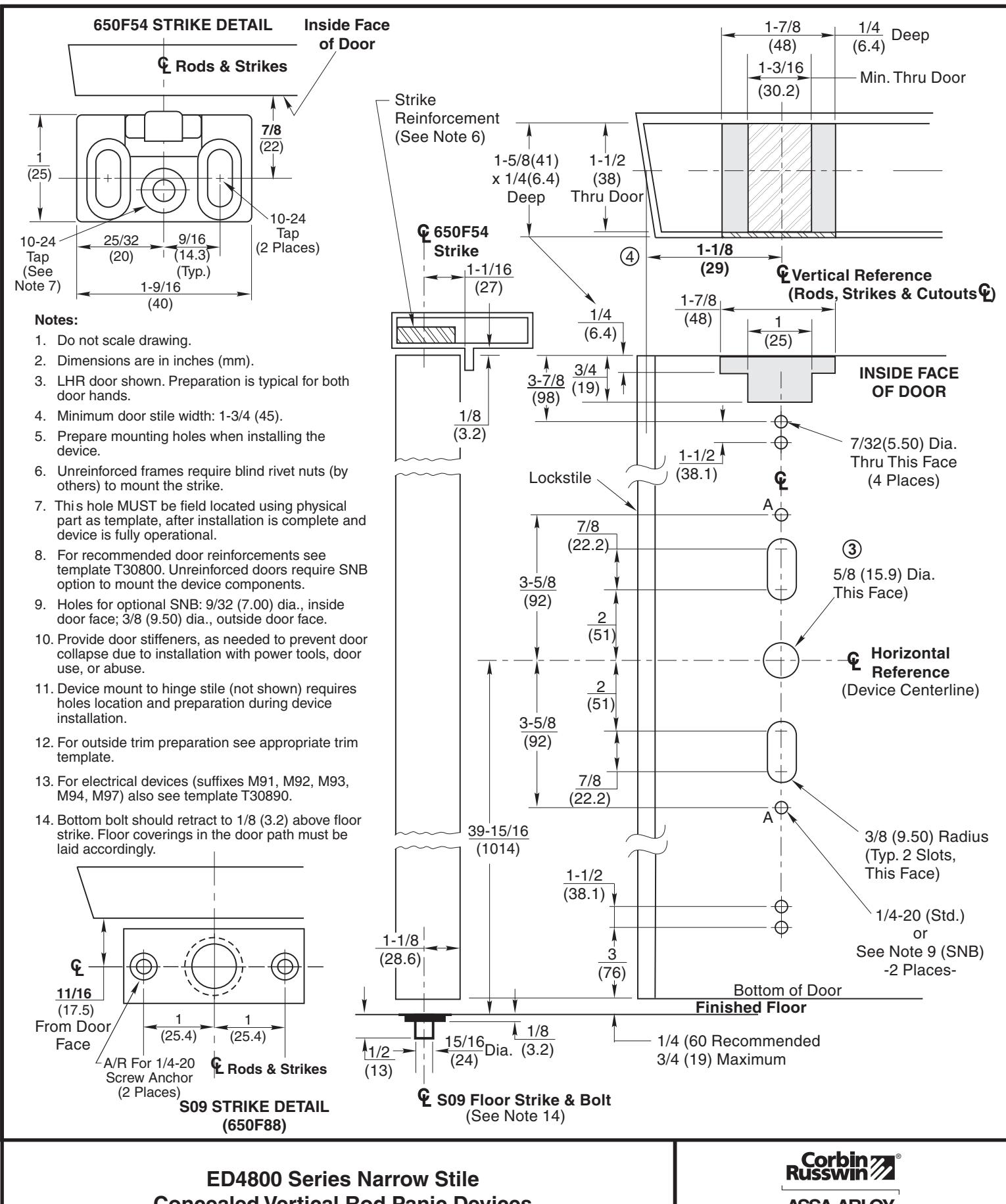

Corbin Russwin ED4800 Narrow Stile CVR S09 Floor Strike Aluminum Door and Blade Stop Frame Template_T30880 diagram on page 1

Concealed Vertical Rod Panic Devices

Application for Aluminum Door and Blade Stop Frame With SO9 Floor Strike

assa abloy DO NOT SCALE DRAWING T30880-3 TEMPLATE NUMBER T30880-4 05-09
