Corbin Russwin ED4400M(A) Narrow Stile SVR S09 Floor Strike Optional SNB Wood or Composite Door and H.M. Frame w…_T31155 diag

ED4400M & ED4400MA Series Surface Vertical Rod Exit Devices with Optional SNB

1/2

(13)

11/16

(17.5)

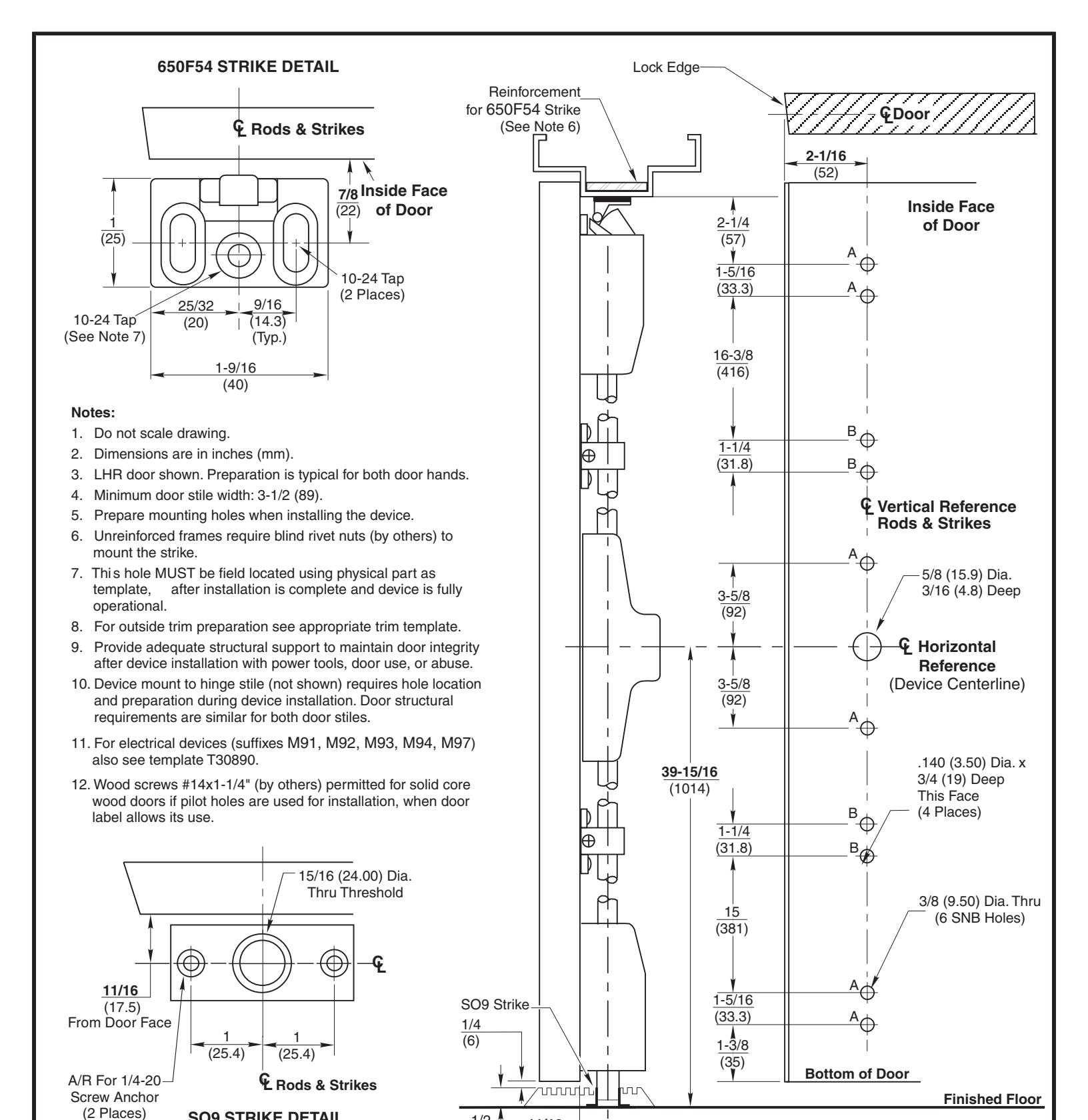

Application for Wood or Composite Door and H.M. Frame with 1/2" Threshold and S09 Optional Floor Strike

Corbin Russwin ED4400M(A) Narrow Stile SVR S09 Floor Strike Optional SNB Wood or Composite Door and H.M. Frame w…_T31155 diag

C Rods, Deadbolt and Floor Strike

SO9 STRIKE DETAIL

(650F88)
