Notes:

• 1) Do not scale drawing.
• 2) Dimensions are in inches(mm).
• 3) LHR active pair shown. Preparation is typical for both hands.
• 4) Minimum door stile width: 3-1/2 (89).
• 5) Prepare mounting holes when installing the device.
• 6) For square door edges, or other center clearance, compensate locating dimensions as required to maintain strike to device distance shown.
• For recommended door reinforcements see template T30800. Unreinforced doors require SNB option to mount the hardware.

• 8) Holes for optional SNB: 9/32(7.00) dia., inside door face; 3/8(9.50) dia., outside door face.
• Provide door stiffeners, as needed to prevent door collapse due to installation with power tools, door use, or abuse.
• Device mount to hinge stile (not shown) requires holes location and preparation during device installation.
• 11) For trim preparation see appropriate trim template.
• 12) For electrical devices (suffixes M91, M92, M93, M94, M97) also see template T30890.

assa abloy

T31152

DO NOT SCALE DRAWING

05-09

SUPERSEDES

TEMPLATE NUMBER

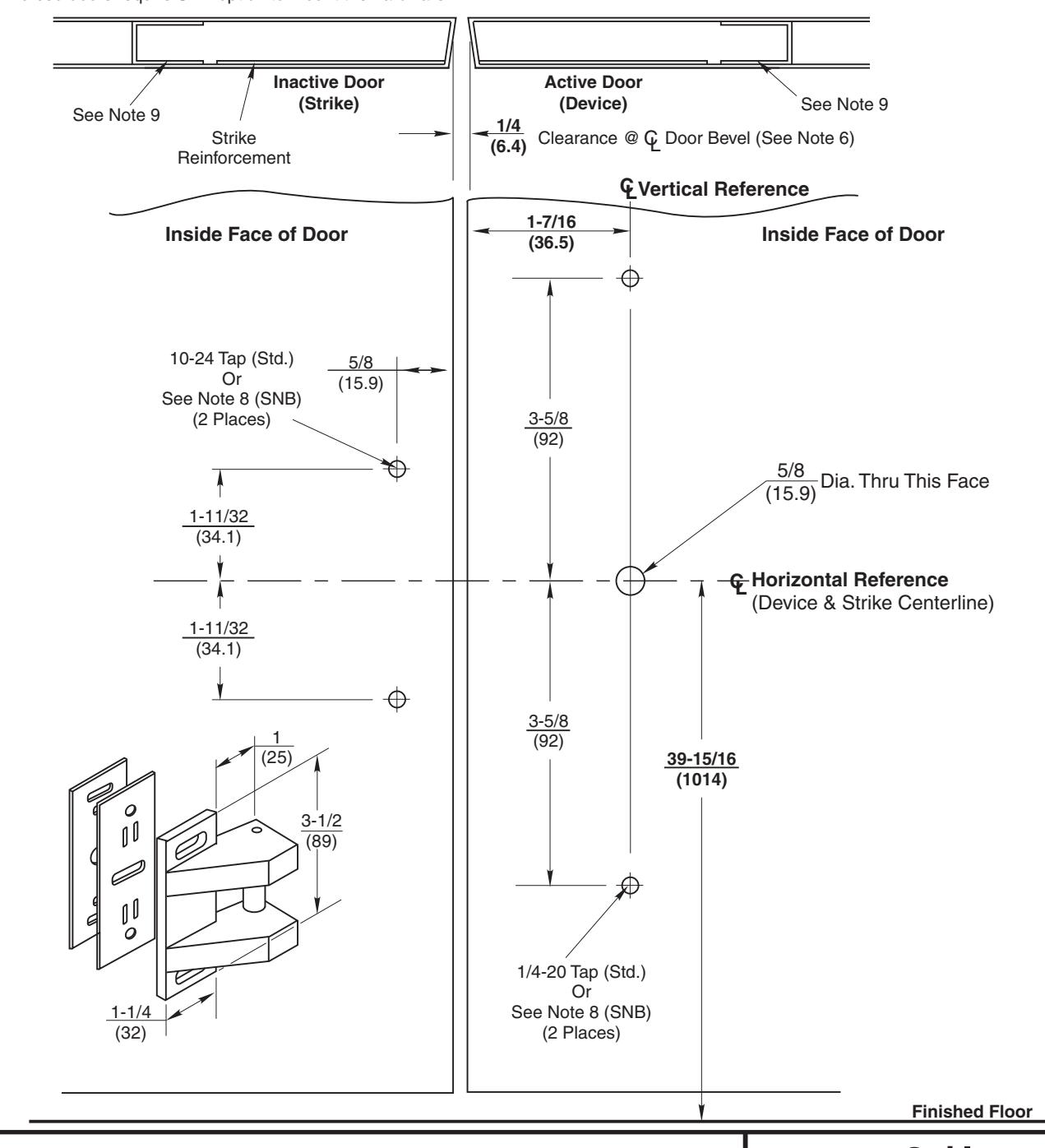

ED4200SM Series SecureBolt™ Exit Devices Optional S02 Strike and SNB

Application to Pair of Metal Doors without Mullion

(Not for Fire Labeled Devices)
