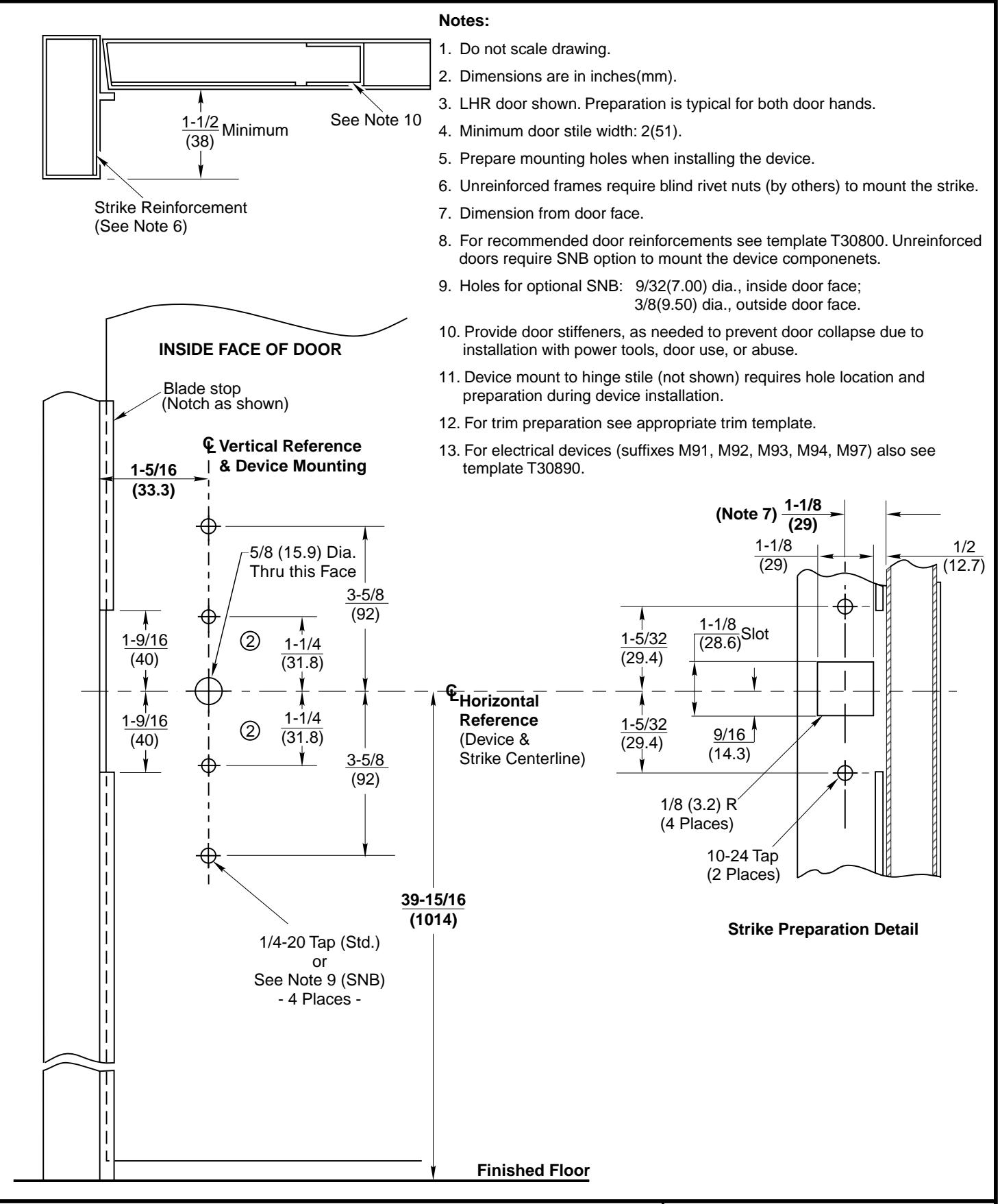

Corbin Russwin ED4200S Narrow Stile Rim 650F31 Strike Aluminum Door and Blade Stop Frame Template_T30926 diagram on page 1

ED4200S Narrow Stile Security Deadbolt Rim Panic Devices Application for Aluminum Door and Blade Stop Frame with 650F31 Strike

Corbin Russwin ED4200S Narrow Stile Rim 650F31 Strike Aluminum Door and Blade Stop Frame Template_T30926 image on page 1

DO NOT SCALE DRAWING SUPERSEDES T30926-1

T30926-2 8-06 TEMPLATE NUMBER DATE
