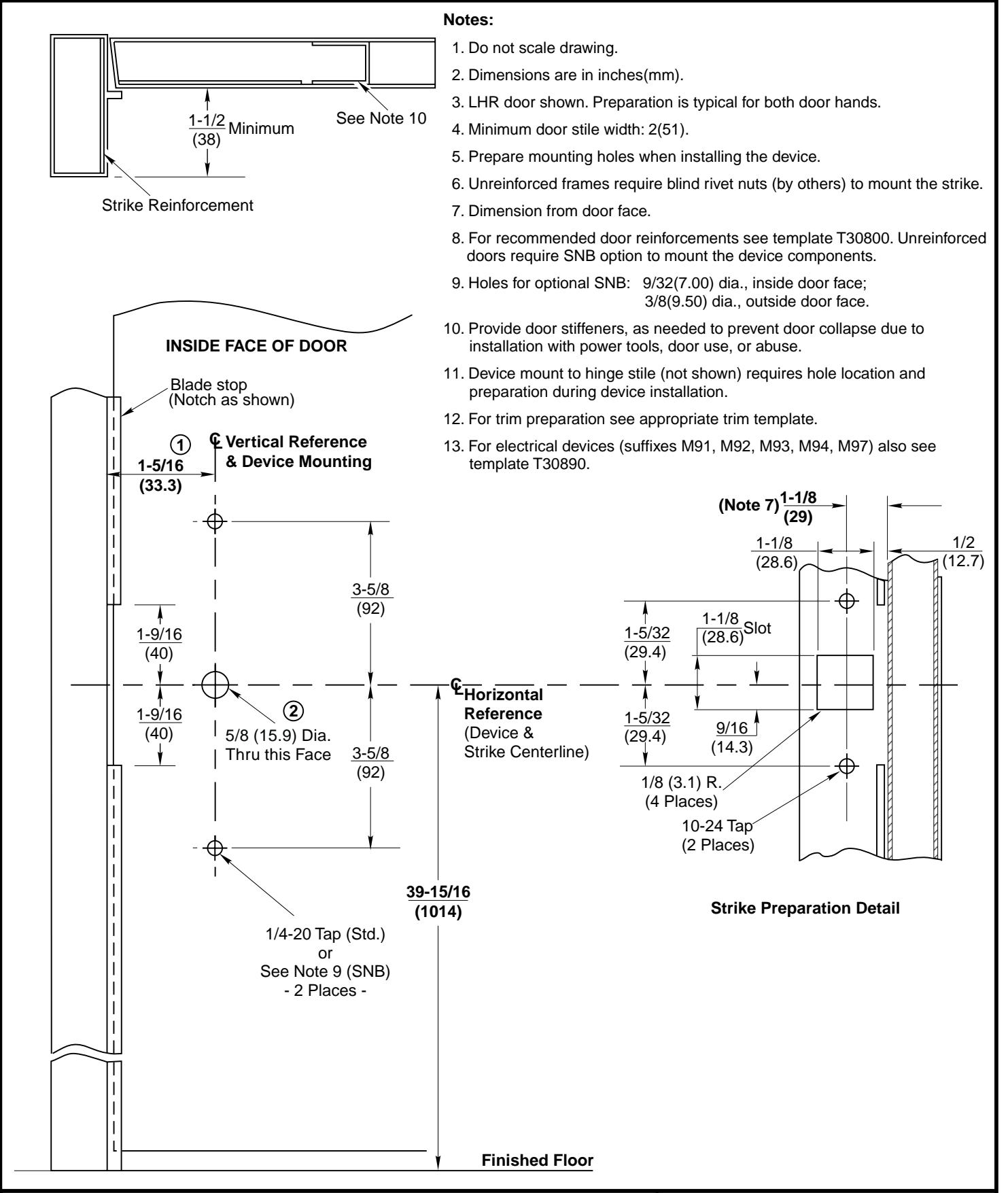

Corbin Russwin ED4200 Narrow Stile Rim 650F31 Strike Aluminum Door and Blade Stop Frame Template_T30874 diagram on page 1

ED4200 Series Narrow Stile Rim Panic Devices with 650F31 Strike

Application for Aluminum Door and Blade Stop Frame

Corbin Russwin ED4200 Narrow Stile Rim 650F31 Strike Aluminum Door and Blade Stop Frame Template_T30874 image on page 1

www.corbinrusswin.com

T30874-1

DO NOT SCALE DRAWING SUPERSEDES

3-01

T30874-2 TEMPLATE NUMBER DATE
