DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

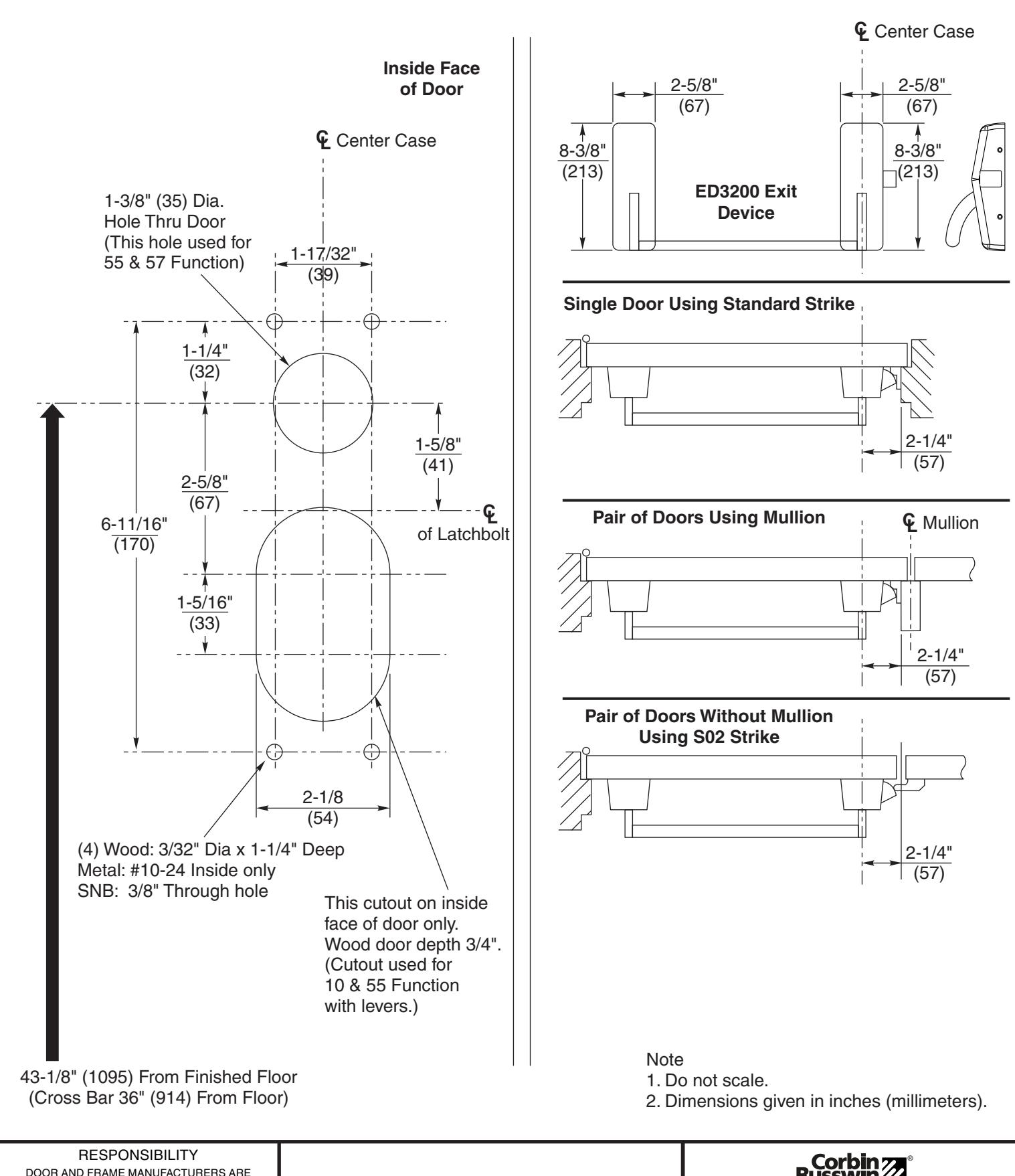

ED3200(A) Rim Exit Device Wood and Metal Doors

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES DO NOT SCALE DRAWING T31220-2

TEMPLATE NUMBER

T31220-3 08-15 DATE
