Corbin Russwin ED2400(A), ED5400(A) Wide Stile SVR Metal Door Template

Original Source Document Full PDF Version

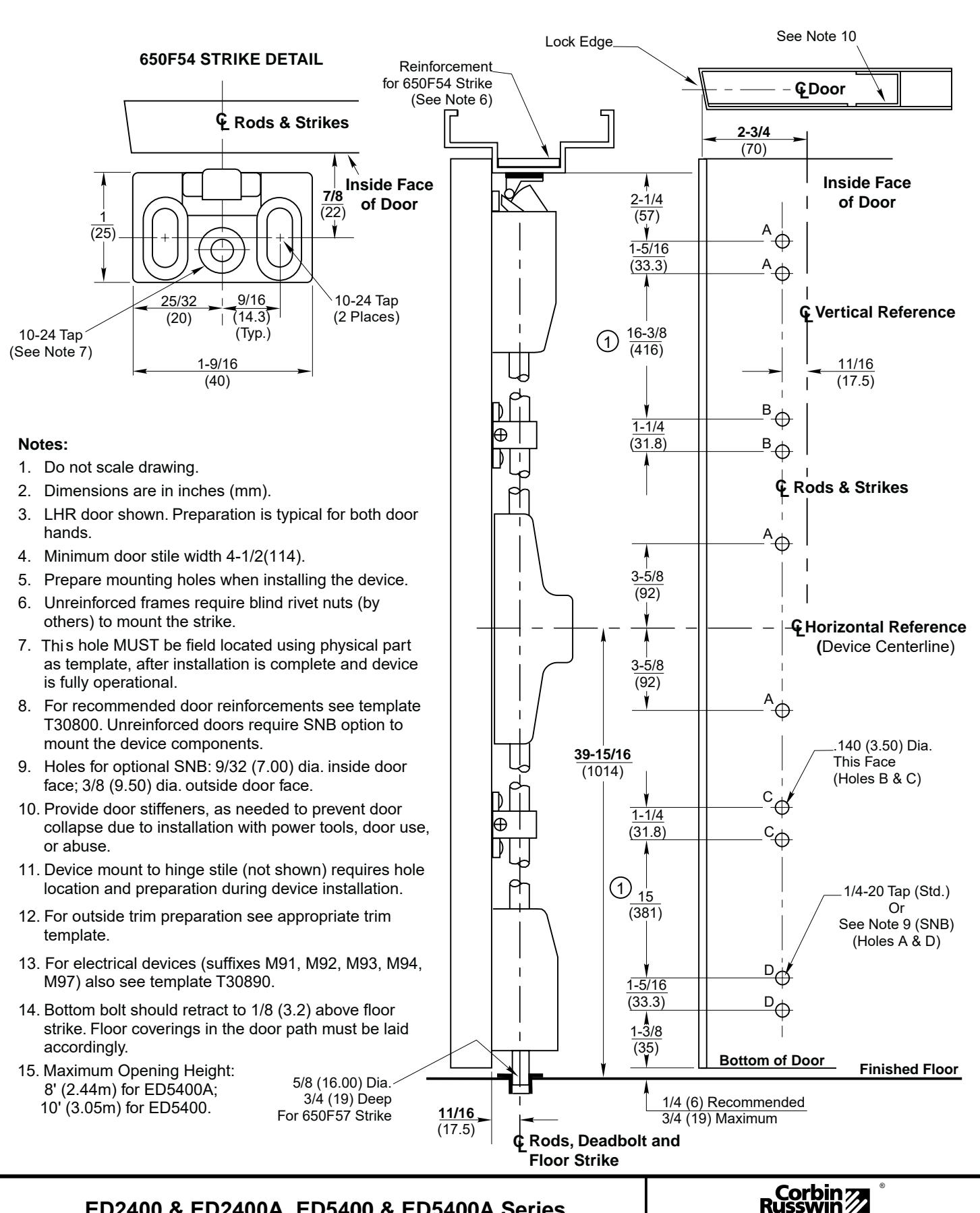

Corbin Russwin ED2400(A), ED5400(A) Wide Stile SVR Metal Door Template_T30803 diagram on page 1

ED2400 & ED2400A, ED5400 & ED5400A Series Surface Vertical Rod Exit Devices

Standard Application for Metal Door and Frame

TEMPLATE NUMBER www.corbinrusswin.com

assa abloy SUPERSEDES T30803-1 DO NOT SCALE DRAWING DATE 10-22

T30803-2
