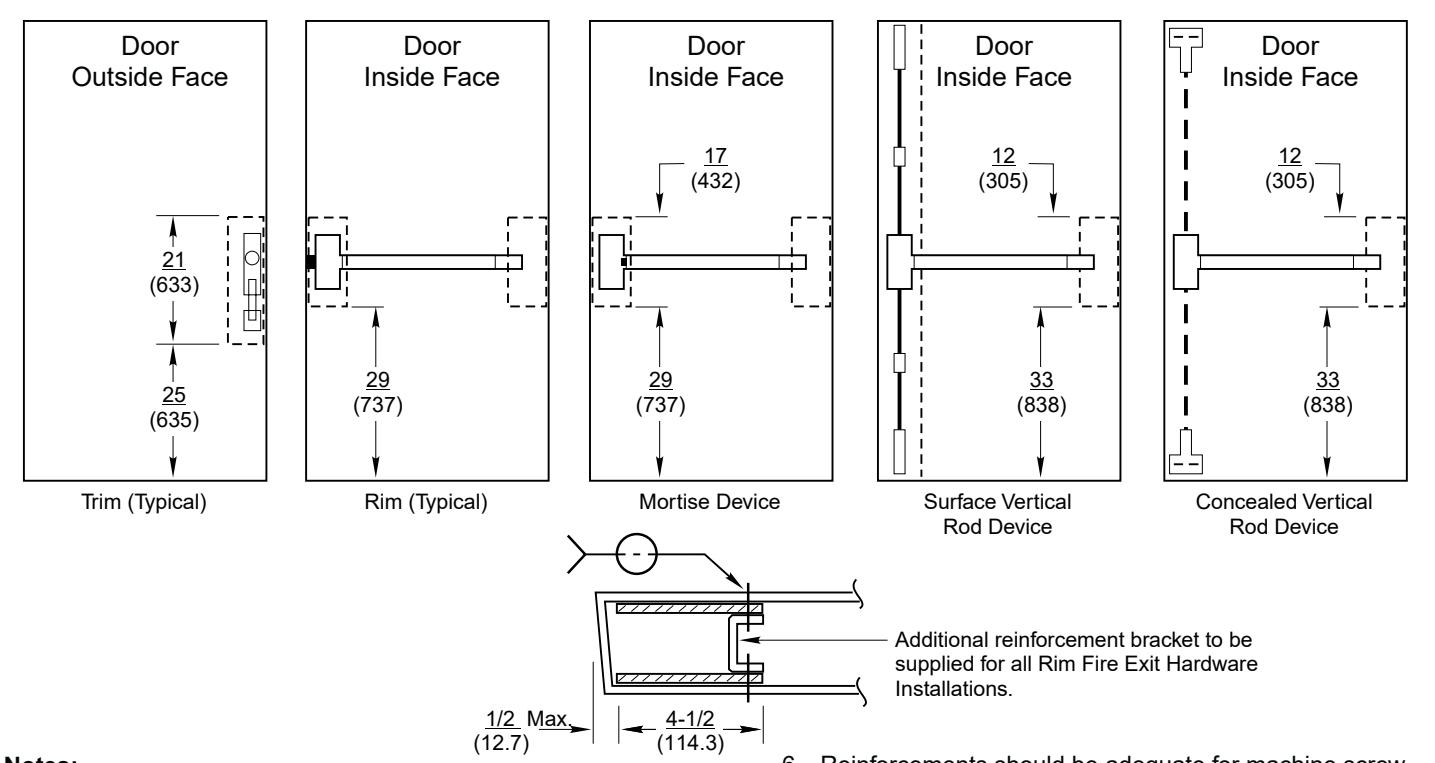

Notes:

• 1. Do not scale drawing. Dimensions are in inches (mm).
• 2. Position reinforcements according to hand of door. LHR door shown.
• 3. Refer to specific device and trim templates for additional reinforcements, cutouts and mounting hole requirements.
• 4. Provide 4-1/2" (114.3) wide or full stile width reinforcements.
• 5. Outside door face, bridge or channel reinforcement, required when outside trim is used.
• 6. Reinforcements should be adequate for machine screw holes (minimum engagement of 3 full threads). Maximum thickness 5/32 (4) for door skin and reinforcement.
• 7. Shields recommended for mortise lock installations.

Issue No. Customer's Name Customer's Order No.				Date Job Name
Device	Template No.	Strike	Template No.	Trim	Template No.	Misc.	Template No.
ED2000, ED4000, & ED5000 Series						®
Master Reinforcement Template For

Exit Devices and Trim

www.corbinrusswin.com

T30800-2

SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER DATE

T30800-1

10-22
