Notes:

  • 1. Dimensions given in inches and (mm).
  • 2. Backset is measured from centerline of bevel which is centerpoint of door thickness.

TEMPLATE CROSS REFERENCE
DESCRIPTION TEMPLATE
CL3300 Series Cylindrical Lever Lock T30684
CL3500 Series Cylindrical Lever Lock T31001
CL3800 Series Cylindrical Lever Lock T31005

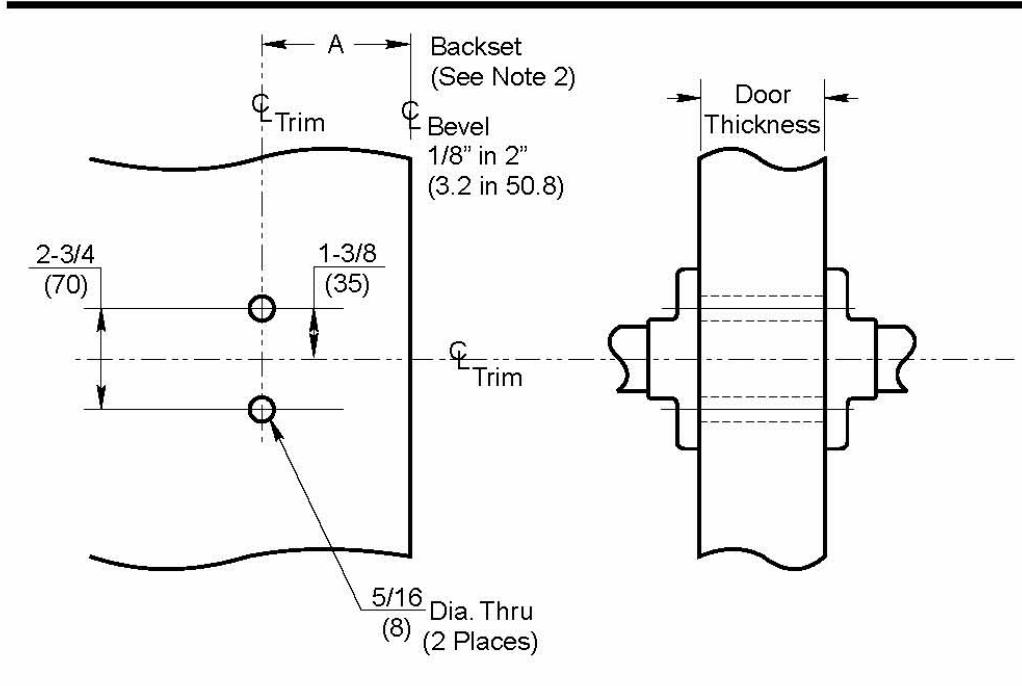

← A → C Trim Backset
(See Note 2)
Bevel
1/8" in 2"
(3.2 in 50.8) 		Door
Thickness
2-3/4 1-3/8 (35) C
Trim
5/1 6 Dia. Thru
)
(2 Places)

HALF DUMMY TRIM CL3350, CL3550, CL3850

(2)

BACKS SET A
2-3/4 (69.9) Regular
3-3/4 (95.3) Optional
5 (127) Ориона

Corbin Russwin Dummy Trim for CL3300, CL3500, and CL3800 Series 50 and 70 Functions Template_T30685 diagram on page 1

FULL DUMMY TRIM CL3370, CL3570, CL3870

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

CL3350 - CL3550 - CL3850 CL3370 - CL3570 - CL3870

Dummy Trim

www.corbinrusswin.com

Do Not Scale Drawing Supersedes

T30685-2 Dr.

Template Number Date 7-11 T30685-3
