← Corbin

Notes:

  • 1. Dimensions given in inches and (mm).
  • 2. Backset is measured from centerline of bevel which is centerpoint of door thickness.
  • 3. Rose and lever dimensions vary by design.
  • 4. Metal door reinforcement to be at least equivalent to that shown on ANSI A115.2.

TEMPLATE CROSS REFERENCE
DESCRIPTION TEMPLATE
CL3100 Series VR Lever Lock T31193

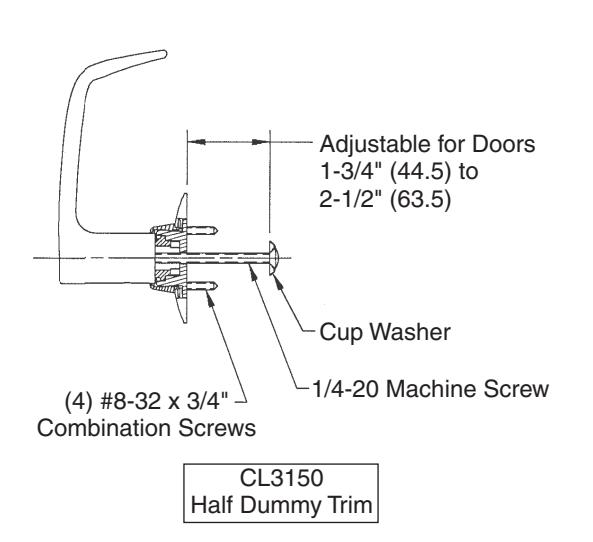

Corbin Russwin Dummy Trim for CL3100 Series 50 and 70 Functions Template_T31194 image on page 1

Corbin Russwin Dummy Trim for CL3100 Series 50 and 70 Functions Template_T31194 image on page 1

CL3170 Full Dummy Trim

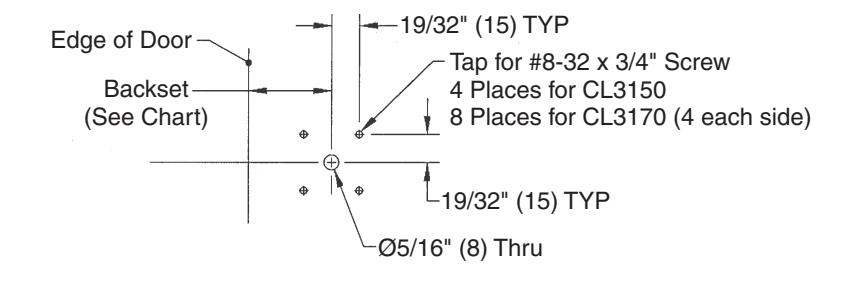

Corbin Russwin Dummy Trim for CL3100 Series 50 and 70 Functions Template_T31194 diagram on page 1

Suggested Detail of Door Preparation

BACKSETS
2-3/4" (70) 3-3/4" (95) 5" (127)
Standard B334 Option B500 Option

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

CL3150, CL3170 Dummy Trim

® ASSA ABLOY

www.corbinrusswin.com SUPERSEDES DO NOT SCALE DRAWING

T31194 03-12 DATE TEMPLATE NUMBER
