Corbin Russwin Dummy Trim for CK4300 Series Wood or Metal Doors (see ANSI, BHMA A156.115) Template

Original Source Document Full PDF Version

Notes:

1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
2. Door prep with 2-3/4" (70) backset meets ANSI/BHMA A156.115 standards for steel doors and ANSI/BHMA A156.115W standards for wood doors.
3. Dimensions given in inches and (mm).

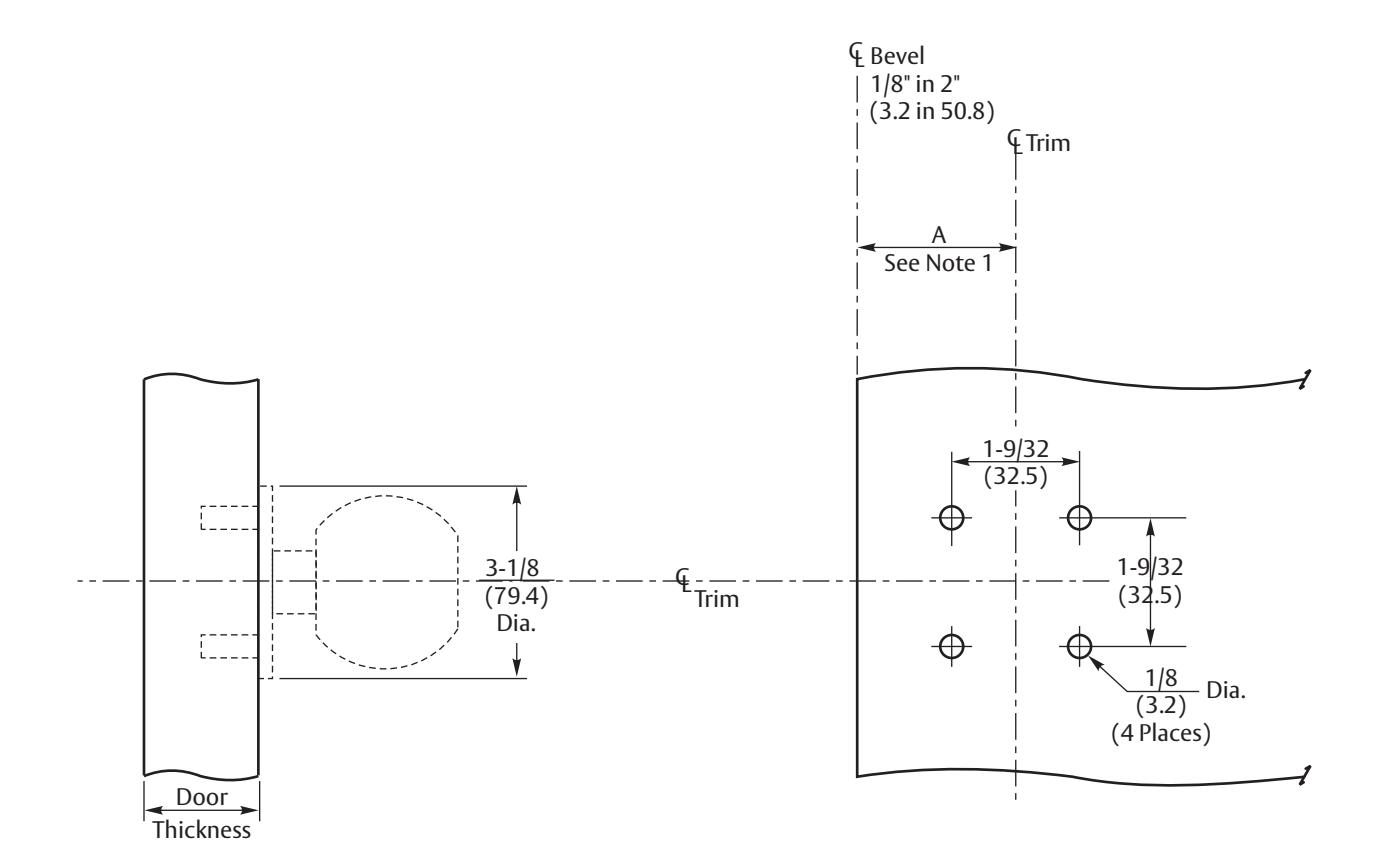

Corbin Russwin Dummy Trim for CK4300 Series Wood or Metal Doors (see ANSI, BHMA A156.115) Template_T31239 diagram on page 1

Backset Dim. "A"
2-3/4 (69.9)	Regular
2-3/8 (60.3)	Optional

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

CK4300 Series Grade 1 Knob Locks Dummy Trim Wood or Metal Door Preparation (See ANSI/BHMA A156.115) T31239 03-16 DATE
