DC8000 Series Heavy-Duty Door Closer

Corbin Russwin DC8000 Series Door Closer Superior Door Control Sell Sheet_45343 image on page 1

keep taiking. We're listening.

Superior Door Control

Corbin Russwin DC8000 Series Door Closer Superior Door Control Sell Sheet_45343 diagram on page 1

DC8000 Series

Heavy-Duty Door Closer

Corbin Russwin DC8000 Series Door Closer Superior Door Control Sell Sheet_45343 image on page 2

Keep talking. We're listening.

We invite you to add your ideas to our "Team Design Initiatives," an ongoing dialog with our customers and installers that results in better products, better business relationships, and more satisfied customers.

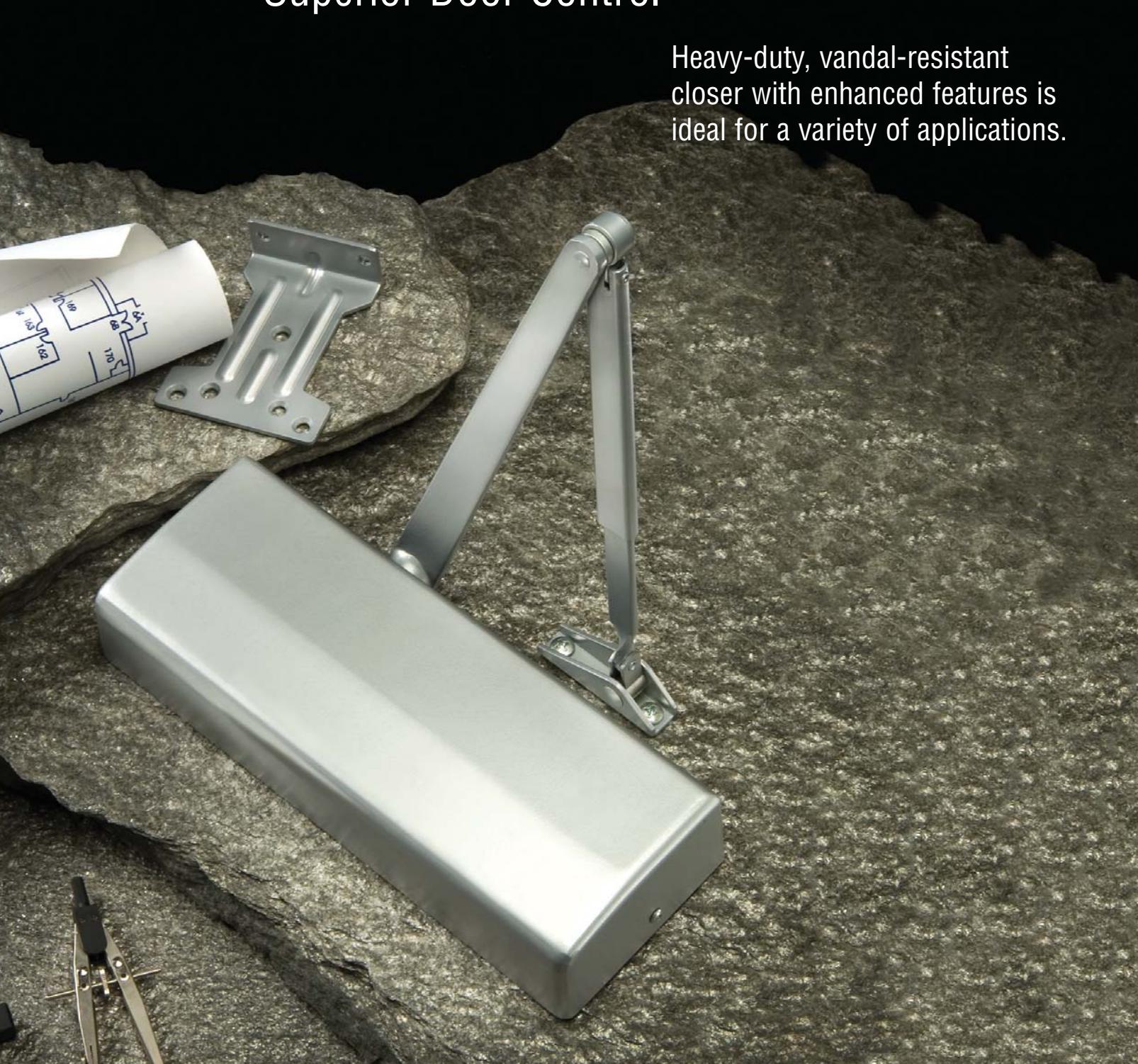

DESCRIPTION Corbin Russwin's DC8000 series door closers offer heavy-duty, vandal-resistant construction with enhanced features and innovative design. With a cast-iron closer body, forged heavy-duty steel arms, and a 1-1/2" piston bore diameter, the DC8000 is ideal for doors where high traffic, abuse and vandalism are common.

APPLICATIONS The DC8000 is perfect for institutional and commercial buildings, retail complexes, hospitals, school or universities. A cover design offering a 2-1/4" projection presents an attractive, streamlined appearance.

COMPLETE ARM OFFERING Closers are tri-packed for regular arm, top jamb or parallel arm mounting, allowing the convenience of one closer to be stocked for a variety of applications. A full compliment of heavy-duty arms are also available, including the Unitrol® by Norton®. The Unitrol (formerly the Heavy-Duty Spring Stop), offers the most controlled stop available with a surface door closer.

INSTALLATION The Universal QUIK-INSTALL® bracket guarantees quick and accurate installation. Retrofit plates allow easy replacement for existing door closers without modifying the door prep.

FEATURES

  • Cast-iron closer body

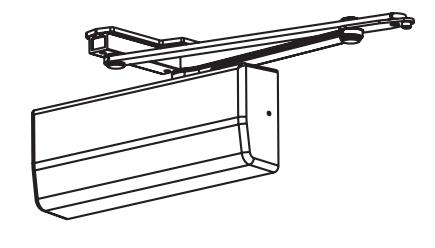

  • Tri-packed assembly (regular arm, top jamb and parallel arm mounting)
  • Non-handed
  • Heavy-duty, forged steel arms
  • Track applications
  • Universal QUIK-INSTALL® mounting bracket

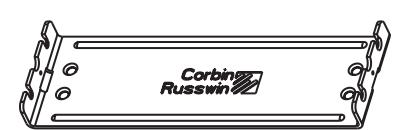

  • Retrofit plates
  • Multi-sized (adjustable spring sizes 1 through 6
  • Factory sized units (available upon request)
  • 1-1/2" piston bore diameter
  • 2-1/4" projection

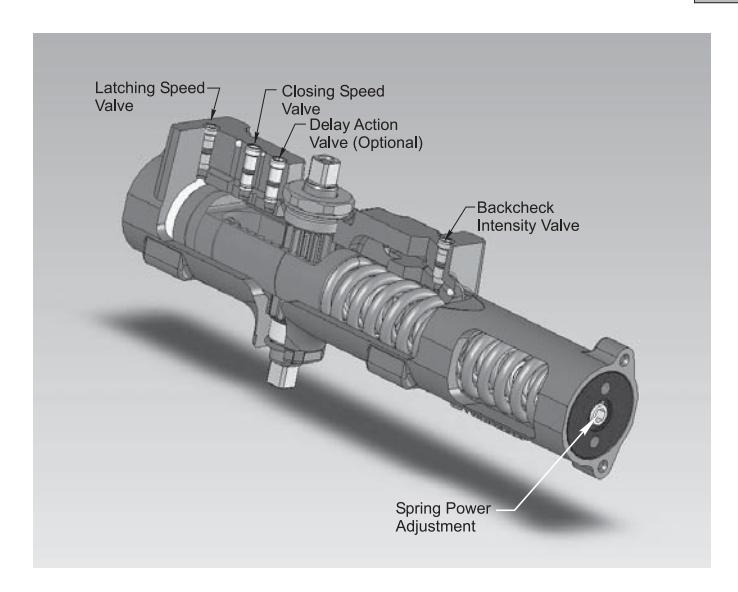

  • Captured valves
  • Door swings up to 180° (conditions permitting)

CERTIFICATIONS

ANSI/BHMA A156.4, Grade 1 certified ADA compliant UL10C and UBC 7-2c

Corbin Russwin DC8000 Series Door Closer Superior Door Control Sell Sheet_45343 image on page 2

Corbin Russwin DC8000 Series Door Closer Superior Door Control Sell Sheet_45343 image on page 2

Corbin Russwin DC8000 Series Door Closer Superior Door Control Sell Sheet_45343 image on page 2

For more information

please contact your local Door Security Solutions representative or visit our website at

www.corbinrusswin.com

Corbin Russwin DC8000 Series Door Closer Superior Door Control Sell Sheet_45343 image on page 2

Security. Innovation. Vandal-resistance.

Corbin Russwin DC8000 Series Door Closer Superior Door Control Sell Sheet_45343 image on page 2

CORBIN RUSSWIN PRODUCTS:

Pyramid Locking System KeyWizard™ Key Control Software Access Control Devices Electrified Systems Components Mortise Locks Cylindrical Locks Exit Devices

Door Closers
