MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

offset pivots, or center pivots. 2. Dimensions given in inches and (mm).

4. Auxiliary door stop required, by others.

3. Minimum Top Rail: 5 (127)

NOTES:

RH SHOWN LH OPPOSITE

Closer To Be Installed In A True Horizontal CAUTION: Position To Ensure Proper Closer Performance.

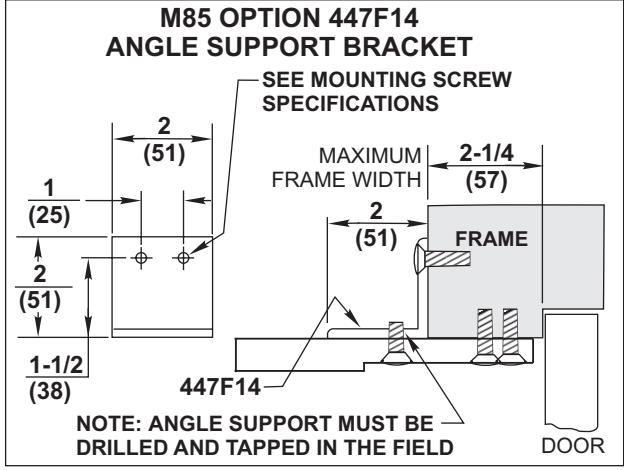

MOUNTING SCREW SPECIFICATIONS ARM AND QUIK-INSTALL™ BRACKET

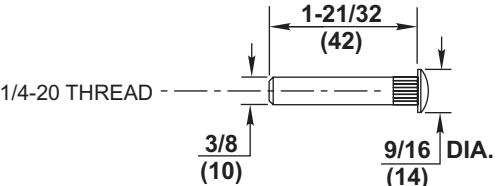

#12-14 self-drilling screw. 1/8 (3) diameter pilot hole Sex nuts, furnished required for Wood when ordered Applications. 1/4-20 THREAD

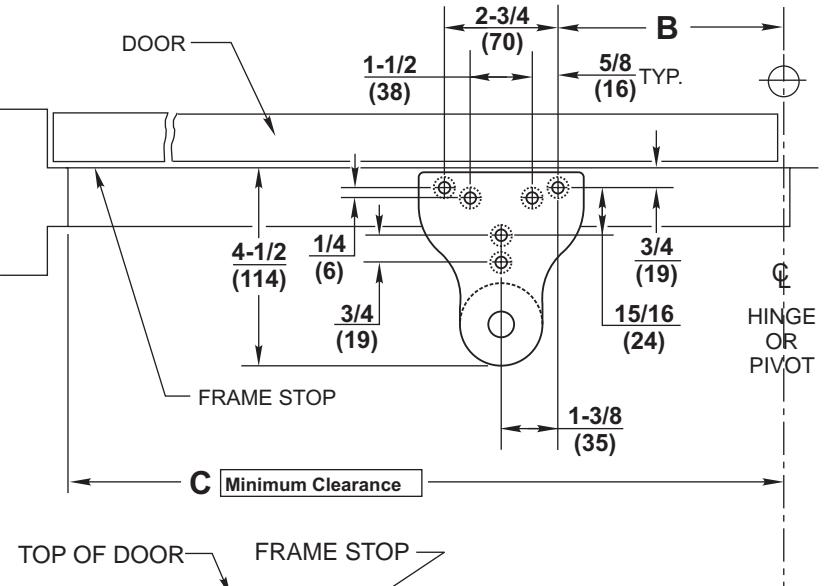

MAXIMUM Application C В OPENING Quick Install™ Soffit Bracket Clearance Bracket NON 7-7/8 11-5/8 27-3/4 90° (200)(295)(705)A.D.A 3-7/8 7-5/8 23-5/8 180° (98)(194)(600)

1. Dimensions "A" & "B" apply to centerline of hinge/pivot for butt hinges,

10 (254)

12

(305)

This Side Only (4 Places)

The Habitat for Humanity®

1-1/2

(38)

(25)

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC8210 Series x A3

(25)

Parallel Arm Mounted Surface Door Closer

Corbin Russwin

ASSA ABLOY

www.corbinrusswin.com Do Not Scale Drawing

Dr. Template Number T31055 04-08
