MOUNTING INFORMATION
Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.
RH SHOWN LH OPPOSITE
Closer To Be Installed In A True Horizontal CAUTION: Position To Ensure Proper Closer Performance.
MOUNTING SCREW SPECIFICATIONS
#12-14 self-drilling screw. 1/8 (3) diameter pilot hole required for Wood Applications.

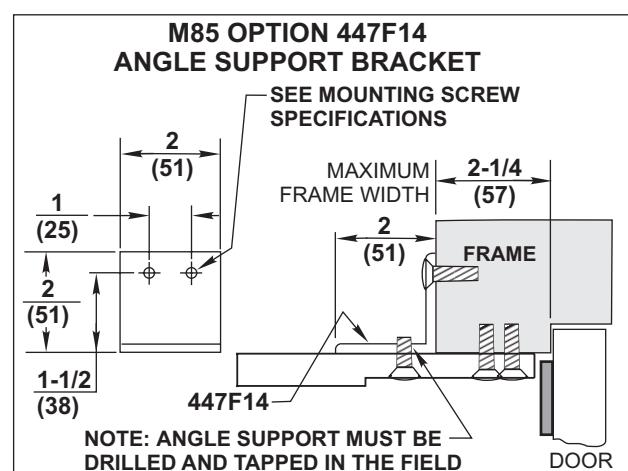

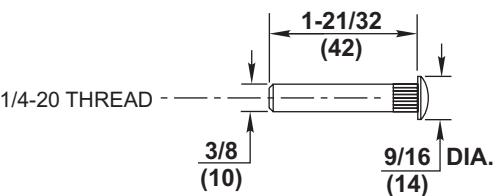

ARM AND QUIK-INSTALL™ BRACKET Sex nuts, furnished when ordered
1/4-20 THREAD
Drill thru 9/32 (7) Enlarge to 3/8 (10) Dia. This Side Only (4 Places)
NOTES:
- 1. Dimensions "A" & "B" apply to centerline of hinge/pivot for butt hinges, offset pivots, or center pivots.
- 2. Dimensions given in inches and (mm).
- 3. Minimum Top Rail: 2-1/2 (64)
- 4. Auxiliary door stop required, by others.
| Application | Α | В | С | |
|---|---|---|---|---|
| OPENING | Drop Plate | Soffit Bracket | Clearance | |
| 90° |
NON
A.D.A. |
7-1/2
(191) |
11-5/8
(295) |
27-3/4
(705) |
| 180° | 4 |
3-1/2
(89) |
7-5/8
(194) |
23-5/8
(600) |
12 (305)
The Habitat for Humanity®
TOP OF DOOR
5-3/4
(146)
(10)
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
DC8210 Series x A3 X 754F25
754F25
Drop Plate

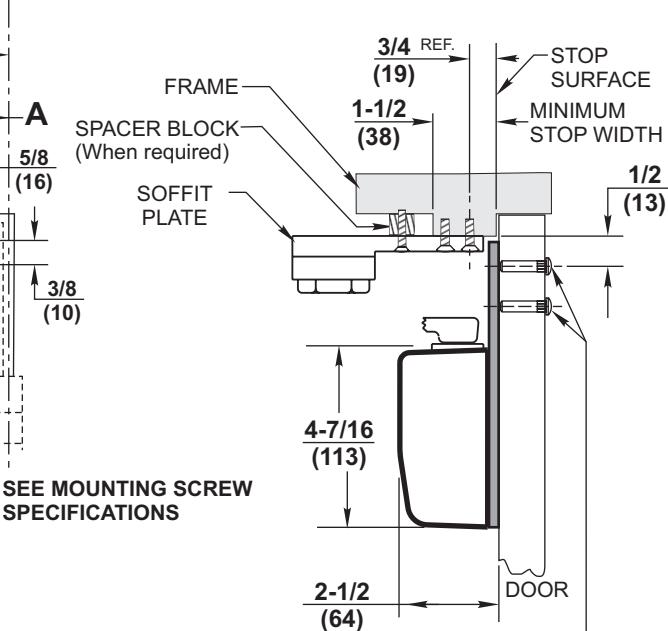

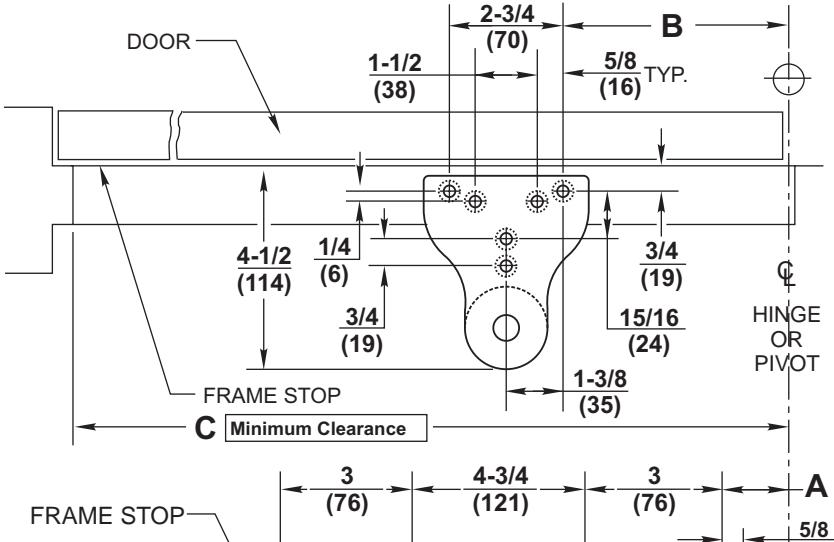

Parallel Arm Mounted Surface Door Closer with 754F25 Drop Plate
