MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

offset pivots, or center pivots. 2. Dimensions given in inches and (mm).

4. Auxiliary door stop required, by others.

3. Minimum Top Rail: 5 (127)

marks on soffit plate

NOTES:

RH SHOWN LH OPPOSITE

Closer To Be Installed In A True Horizontal CAUTION: Position To Ensure Proper Closer Performance.

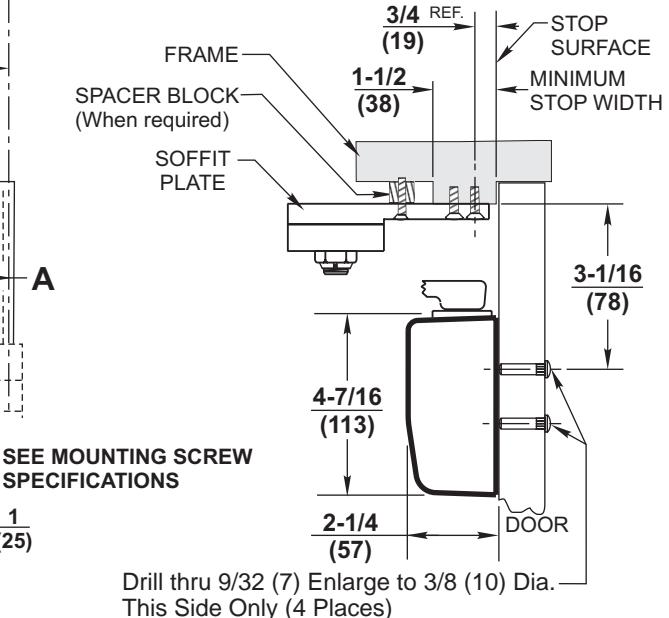

MOUNTING SCREW SPECIFICATIONS

#12-14 self-drilling screw. 1/8 (3) diameter pilot hole required for Wood

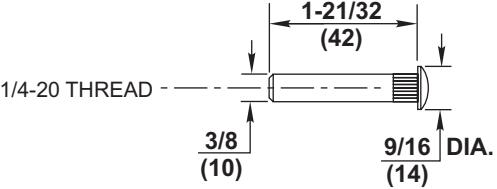

Sex nuts, furnished when ordered

ARM AND QUIK-INSTALL™ BRACKET

Applications. 1-21/32 1/4-20 THREAD

MAXIMUM Application B OPENING Quick Install Soffit Bracket Clearance Bracket 27 7-1/4 11 NON 90° (184)(279)(686)A.D.A 7 3-1/4 23 180° (178)(584)(83)

6. Friction Hold Open arms cannot be used on fire doors..

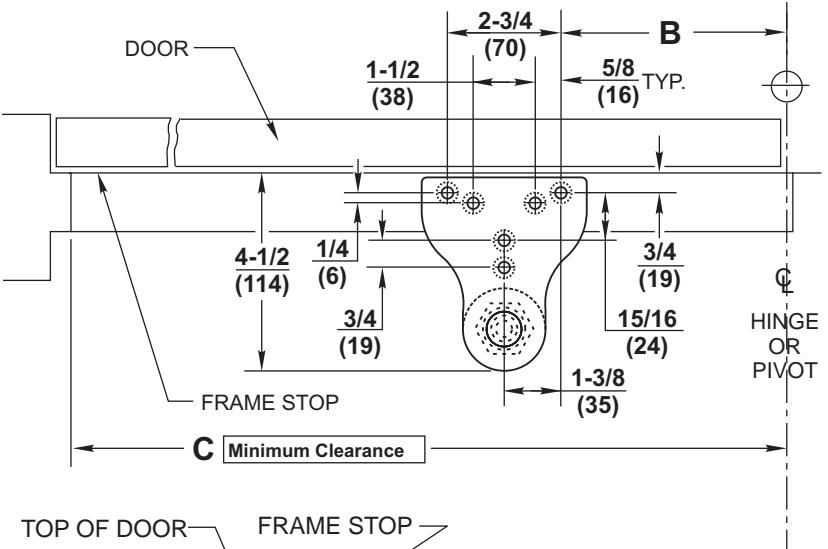

1. Dimensions "A" & "B" apply to centerline of hinge/pivot for butt hinges,

5. Friction Hold Open arms are handed and not reversible. See handing

10

(254)

(305)

🍿 Habitat for Humanity®

1-1/2

(38)

(25)

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC8210 Series x A14

(25)

Parallel Arm Mounted Surface Door Closer By Friction Hold Open Heavy Duty Arm

Corbin Russwin

ASSA ABLOY

www.corbinrusswin.com Do Not Scale Drawing Dr.

Template Number T31065 04-08
