MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

offset pivots, or center pivots. 2. Dimensions given in inches and (mm).

4. Auxiliary door stop required, by others.

3. Minimum Top Rail: 5 (127)

marks on soffit plate

NOTES:

RH SHOWN LH OPPOSITE

Closer To Be Installed In A True Horizontal CAUTION: Position To Ensure Proper Closer Performance.

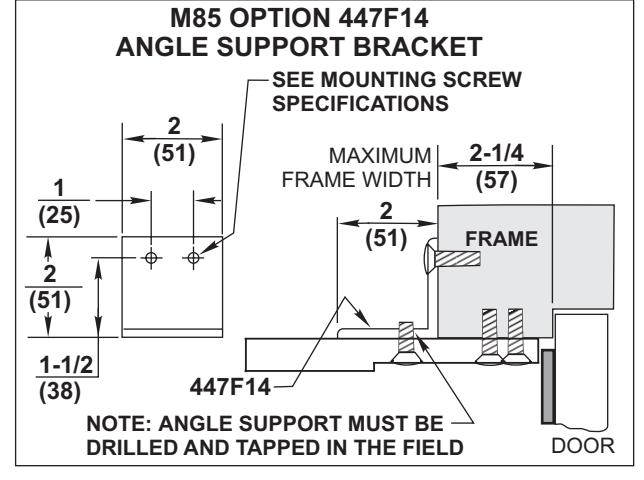

MOUNTING SCREW SPECIFICATIONS ARM AND QUIK-INSTALL™ BRACKET

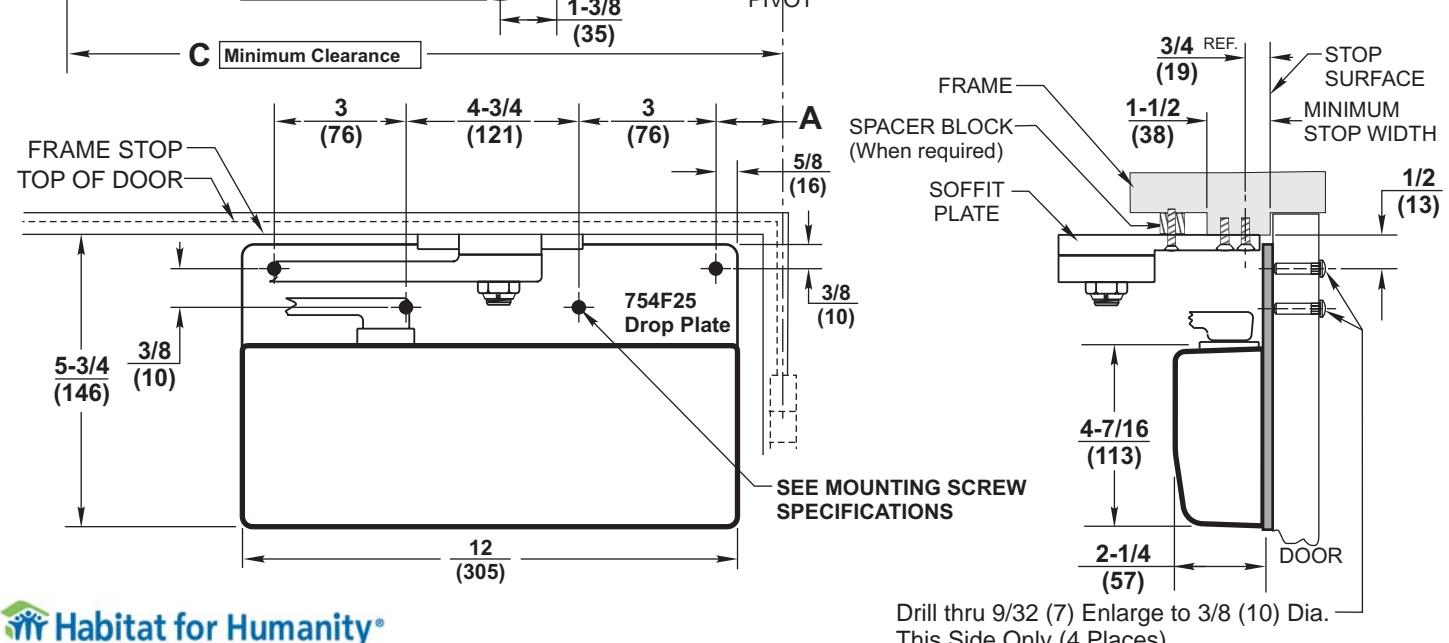

Corbin Russwin DC8000 Series DC8210 Surface Door Closer with A14 Arm Parallel Arm Mounting 754F25 Plate Template_T31066 image

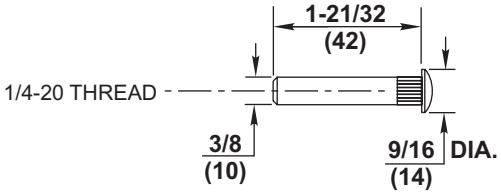

#12-14 self-drilling screw. 1/8 (3) diameter pilot hole Sex nuts, furnished required for Wood when ordered Applications.

6. Friction Hold Open arms cannot be used on fire doors.. MAXIMUM Application B C OPENING Drop Plate Soffit Bracket Clearance 6-3/4 27 NON 11 90° (171)(279)(686)A.D.A 2-3/4 7 23 180° (178)(584)(70)

1. Dimensions "A" & "B" apply to centerline of hinge/pivot for butt hinges,

5. Friction Hold Open arms are handed and not reversible. See handing

Corbin Russwin DC8000 Series DC8210 Surface Door Closer with A14 Arm Parallel Arm Mounting 754F25 Plate Template_T31066 diagr

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC8210 Series x A14 x 754F25

Parallel Arm Mounted Surface Door Closer By Friction Hold Open Heavy Duty Arm with 754F25 Drop Plate

Corbin 7

This Side Only (4 Places)
