MOUNTING INFORMATION

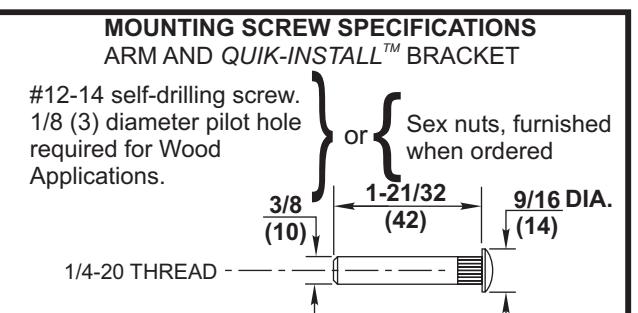

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.
RH SHOWN LH OPPOSITE
Closer To Be Installed In A True Horizontal CAUTION: Position To Ensure Proper Closer Performance.
| - | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Opening |
DOORS 28" TO 32"
615F52 NHO ARM (A11) 615F51 HO ARM (A12) |
|||||||||
|
HOLD DEAD
OPEN STOP |

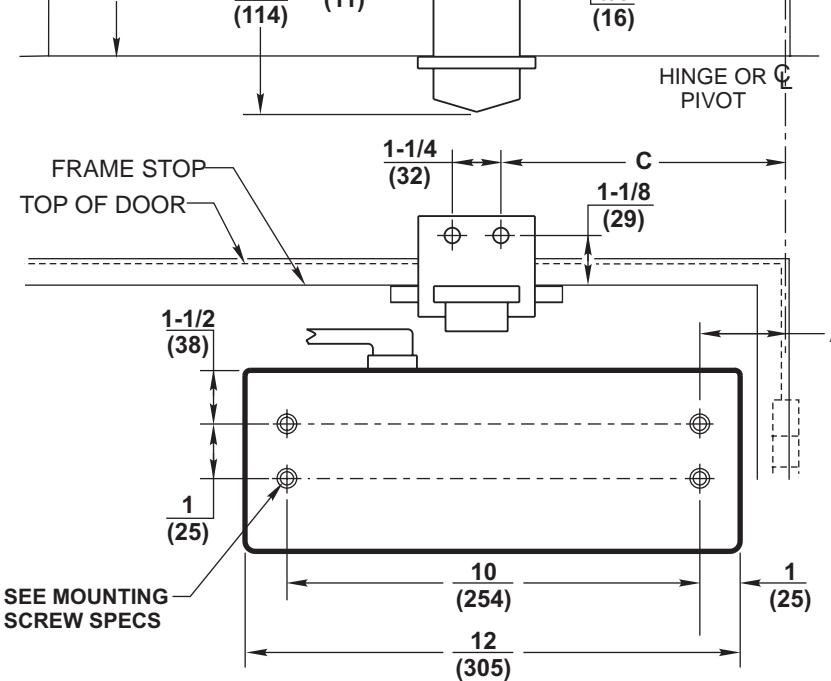

Dim. A | Dim. B | Dim. C | |||||||
| 85° | 90° | 5-3/4 (146) | 9-3/4 (248) | 10-1/2 (267) | ||||||
| 90° | 95° | 5-1/4 (133) | 9-1/4 (235) | 10 (254) | ||||||
| 95° | 100° | 4-3/4 (121) | 8-3/4 (222) | 9-1/2 (241) | ||||||
| 100° | 105° | 4-3/8 (111) | 8-3/8 (213) | 9-1/8 (232) | ||||||
| 105° | 110° | 4 (102) | 8 (203) | 8-3/4 (222) | ||||||
| 110° | 115° | 3-3/4 (95) | 7-3/4 (197) | 8-1/2 (216) | ||||||
|
DOORS 33" TO 41
"
615F54 NHO ARM (A11) 615F53 HO ARM (A12) |
||||||||
|---|---|---|---|---|---|---|---|---|
| Dim. A | Dim. B | Dim. C | ||||||
| 8-1/8 (206) | 11-7/8 (302) | 12-5/8 (321) | ||||||
| 7-5/8 (194) | 11-3/8 (289) | 12-1/8 (308) | ||||||
| 7-1/8 (181) | 10-7/8 (276) | 11-5/8 (295) | ||||||
| 6-5/8 (168) | 10-3/8 (264) | 11-1/8 (283) | ||||||
| 6-1/4 (159) | 10 (254) | 10-3/4 (273) | ||||||
| 6 (152) | 9-3/4 (248) | 10-1/2 (267) | ||||||
| П | DOOKS 42 10 46 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 615F56 NHO ARM (A11) | |||||||||||
| 615F55 HO ARM (À12) | |||||||||||
| Din | 1. A | Dim. B | Dim. C | ||||||||
| П | 10-1/4 | (260) | 14-1/4 | (362) | 15 | (381) | |||||
| 9-3/4 | (248) | 13-3/4 | (349) | 14-1/2 | (368) | ||||||
| 9-1/8 | (232) | 13-1/8 | (333) | 13-7/8 | (352) | ||||||
| 8-1/2 | (216) | 12-1/2 | (318) | 13-1/4 | (337) | ||||||
| 8 | (203) | 12 | (305) | 12-3/4 | (324) | ||||||
| 7-5/8 | (194) | 11-5/8 | (295) | 12-3/8 | (314) | ||||||

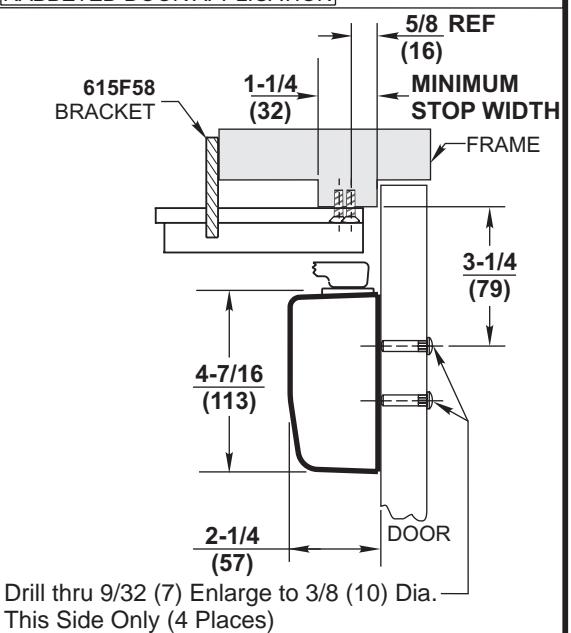

1-1/4
MINIMUM
1/2
(13)
RABBET WIDTH
5/8 REF
3-1/4 (79)
(16)
DOODS 42" TO 48"
NOTES:
- 1. Dimensions given in inches and (mm).
- 2. Minimum Top Rail: 5 (127).
- 3. Frame Reveals 1-7/8 (48) to 4-5/8 (117)
- 4. These dimensions apply to the centerline of hinge/pivot for butt hinges or offset pivots.
- 5. A12 arms cannot be used on fire doors.
REVEAL
<u> </u>
7/16
(11)
4-1/2
TYP Habitat for Humanity®
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
DC8210 Series x A11/A12
A11 or A12 Push Side Parallel Arm Mounted Surface Door Closer with Standard Reinforcing Bracket 615F58
ASSA ABLOY
www.corbinrusswin.com
Do Not Scale Drawing Dr. Date Template Number T31060 04-08
