MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

1. Dimensions given in inches and (mm). 2. Minimum Top Rail: 6-3/4 (171)

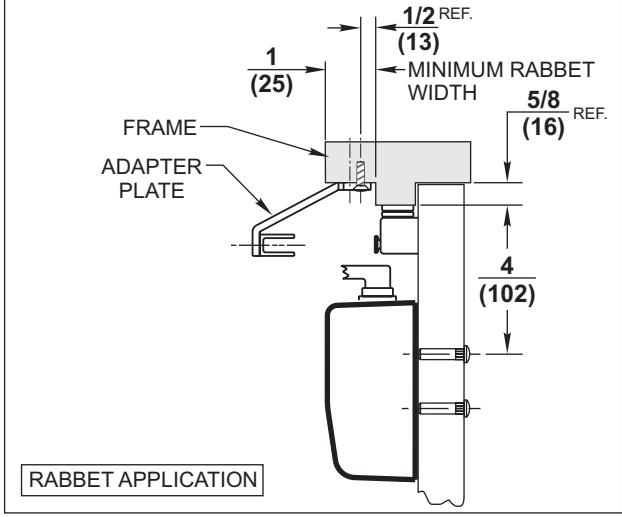

Minimum Top Rail (Rabbet Application): 6-1/8 (156).

NOTE: Overhead stop will limit door opening to 110°.

3. 130° to 150° maximum door opening depending on arm adjustment.

4. To obtain extra closing force, add 3" (76) to dimensions marked by

asterisk (*). This will limit degree of opening to 90° to 95° depending

NOTES:

RH SHOWN LH OPPOSITE

Closer To Be Installed In A True Horizontal CAUTION: Position To Ensure Proper Closer Performance.

MOUNTING SCREW SPECIFICATIONS

M83 OFFSET BRACKET & QUIK-INSTALL™ BRACKET #12-14 self-drilling screw.

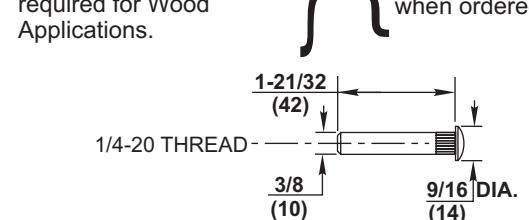

1/8 (3) diameter pilot hole required for Wood

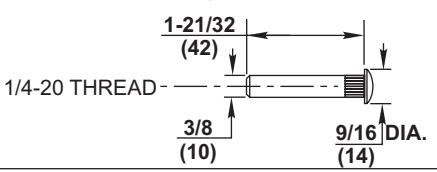

Sex nuts, furnished when ordered

STOP

SURFACE

1/2 REF.

(13)

FRAME

(4 Places)

The Habitat for Humanity®

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC8210 Series x M83

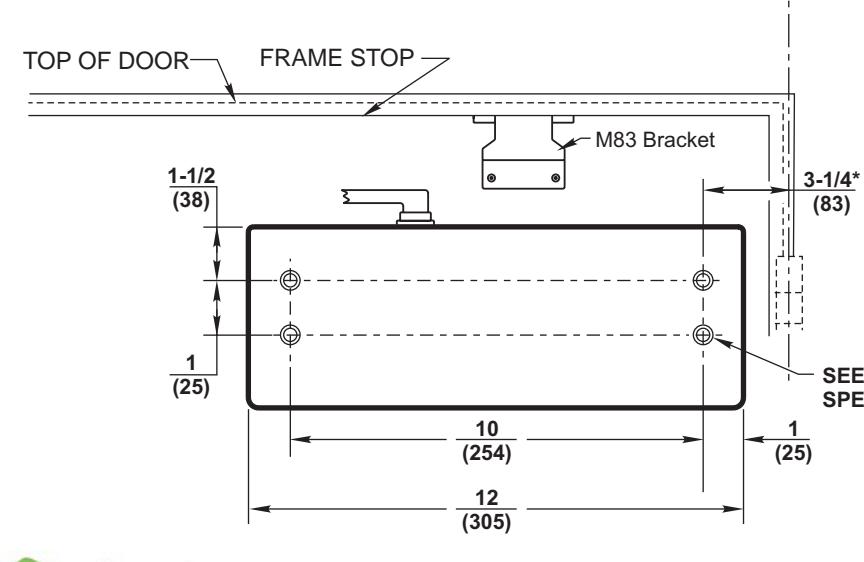

Surface Door Closer Parallel Arm Mounting By M83 Offset Angle Bracket for Use With Auxiliary Stops

Corbin 7

ASSA ABLOY

www.corbinrusswin.com Do Not Scale Drawing Dr.

Template Number 04-08 T31050
