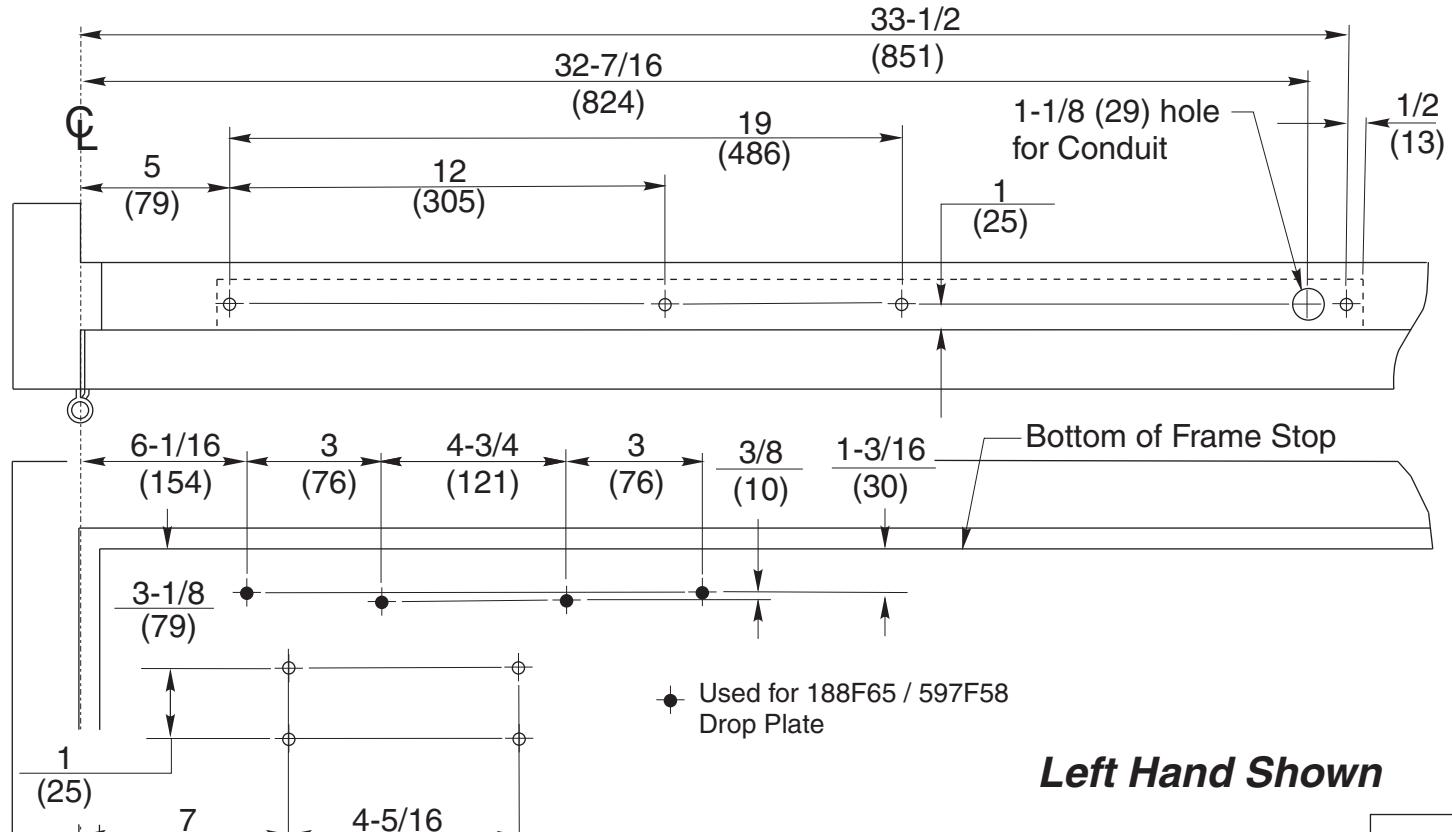

Mark and Drill Holes

NOTES:

From centerline of pivot point to end of track and hook-up box is 33-1/2 (851).

(110)

Left hand door shown.

(178)

• Do not scale drawing.
• Dimensions given in inches (mm).
• Hold Open angle between 85° and 110°.

Preparation for Fasteners
Fasteners	Door or Frame	Drill Sizes
Self-Drilling	Aluminum or Metal	No drill required
Screw	Wood (see Note)	3-16" (4.3mm)
1/4"-20 machine screw	Metal	Drill #7 (.201" dia) Tap 1/4"-20

Note: Wood doors/frames MUST have pilot hole when using Self-Drilling Screws.

DC62940 ET Series Companion Unit

For Installations of a Combination Door Closer - Holder with Single Point Hold Open Stop (Push) Side Mounting

-800-543-3658 Corbin Russwin ASSA ABLOY

TEMPLATE NUMBER T31117

05-09
