Product Catalog

Introduction

DC6000

Table of Contents

Introductions 2
Features3 -5
Mountings6-7
Arms Options8-10
Mounting Brackets 11
Brackets and Covers12-13
Size, Weight, Handing14-15
Helpful Terms 16
How to Order 17
Quick Codes18-19
Specifications20-21

Applications

Corbin Russwin's history combines high-quality product and innovative design. That tradition continues with the Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire door openings.

Quality

More than meets the eye…The design of the DC6000 Series incorporates internal advantages engineered to provide consistent quality operation. Double O-rings, a robust spring tube design and captured valves ensure longevity.

Security

Engineered to meet high security standards, the DC6000 Series offers a full array of security features. Heavy-duty arms offer increased strength for high-use, high-abuse situations. Captured valves and optional Torx® security screws also assist in security situations by making the closer tamper resistant.

Key Advantages

• Heavy-duty forged arm
• Spring-adjust
• Captured valves
• Self-drilling screws
• Quik-Install™ bracket
• Cast iron body
• Powder painted arms

www.corbinrusswin.com

Overview Features

DC6000 DC6000 Series

Versatility

Conditions vary from job to job, but a top-quality product that is dependable, easy to install and versatile is a must. The DC6000 Series door closer is the solution. A variety of features makes this the choice for quick installation and longevity. Corbin Russwin offers a wide variety of arms, tracks and special brackets to meet special header/ frame conditions. The small footprint and unobtrusive cover are additional advantages to a versatile line of closers.

Features	Benefits
Exceeds 25 Million Cycles	Ensures dependability and long life
Closer Arms	Forged steel main arm for strength and durability Full complement to meet most installation demands
	Environmentally safe process
Powder Painted Arms	Greater corrosion resistance
Cover Options	Plastic covers - painted finishes Metal covers - painted or plated finishes
Cast Iron Body	Strong and durable; withstands expected abusive conditions
Captured Valves	Reduces possibility of valve removal
Spring Adjust	Easier to adjust for optimum power setting
Springs	Chrome silicon wire, triple set for longer life
Closer Fluid	Extended temperature oil with friction-reduction additives
Self-Drilling Screws	Easier, quicker installation
Quik-Install™ Bracket	Easier installation of closer body

Features

DC6000

DC6200 - Multi-Sized DC6400 - Sizes 1-6, half size adjustable

Features

Spring Power

DC6200 closers: multi-sized; fully adjustable sizes 1 through 6. DC6400 closers: sizes 1 through 6; half-size adjustability. For recommended sizes, see page 14.

Handing

Non-handed (with the exception of some arms and accessories).

Body

Cast-iron case with seamless cold headed steel spring tube.

Arm

Standard: forged steel. Arm options pages 8-10.

Spindle

Heat-treated steel with a crowned gear set for increased efficiency.

Piston

1-3/8" diameter; precision machined, heattreated steel.

Springs

Chrome silicon wire.

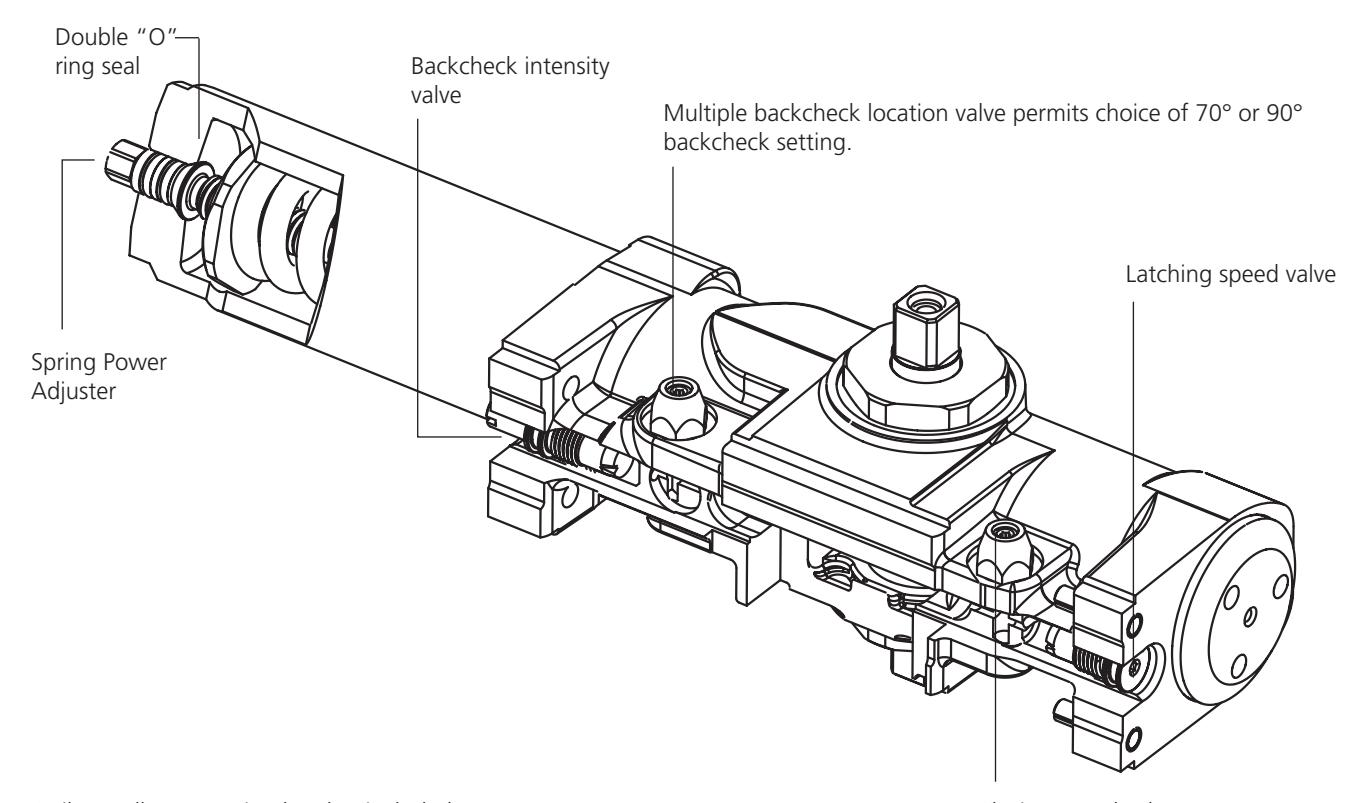

Valves

Latching speed valve standard.

Closing speed valve standard.

Multiple backcheck location valve and backcheck intensity valve standard.

Delayed action valve optional. Delayed action preset for 20 seconds. Between 90° and 70° for all mountings. To order specify M71.

Seals

"O" rings.

Fluid

Standard: high lubricity extreme temperature hydraulic fluid.

Degree of Opening

Up to full 180° opening standard for regular, top jamb and parallel arm mountings, conditions permitting.

Power Adjustment Arm Bracket

15% adjustment standard.

Cover

Standard: plastic V-O flame rated cover. Optional: full metal cover; specify M73 x hand.

Mountings

Standard: regular or top jamb. Parallel arm or tri-style packaging: specify DC6210 or DC6410.

Optional mountings available; see Mountings, page 6.

Mounting Bracket

Quik-Install™ mounting bracket standard.

Fasteners

Standard: self-drilling screws. Optional: sex nuts and bolts (SNBs); specify M54.

Corrosion Protection

Painted protective coating on all metal surfaces for use in corrosive environments.

Security Package

Includes heavy-duty parallel or regular arm, full metal cover and security Torx® machine screws. Specify M87 x arm x hand. See pages 8-12 for arm options.

Warranty

30-year limited warranty. Refer to Corbin Russwin price book for details.

Certification/Compliance

Barrier-Free Code Compliance

The DC6000 Series Door Closers listed below conform to the 5 lbf. maximum door opening force requirement for nonfire-rated interior hinged doors, according to:

Americans with Disabilities Act (ADA)

Complies with the Accessibility Guidelines for Buildings and Facilities, Section 4.13.11

ANSI/BHMA

A156.4, Grade 1.

A117.1.

DC6200 DC6412 DC6210 DC6421 DC6220 DC6401 DC6411

These door closers are certified by Corbin Russwin Architectural Hardware to comply with the above standards when properly installed and (if applicable) adjusted, in regular arm, parallel arm and top jamb mountings.

UL10C positive pressure up to 3 hours UL-cUL

Listed for fire and cycle requirements.

Cycles

Exceeds 25 million cycles

CAUTION: Door Closers for Low Opening Force Applications:

Door closers installed in openings required to meet the requirements of the Americans With Disabilities Act or ANSI/BHMA Standard A117.1, when adjusted to meet those requirements, may not provide adequate closing power to dependably close and latch the door based on opening or site conditions.

Features

DC6000

Finishes

Specify	Description
600 (USP)	Primed
BHMA 605 (US3)*	Bright Brass
BHMA 606 (US4)*	Satin Brass
BHMA 611 (US9)*	Bright Bronze
BHMA 612 (US10)*	Satin Bronze
613E	Dark Oxidized Satin Bronze, Equivalent
BHMA 625 (US26)*	Bright Chromium Plated
BHMA 626 (US26D)*	Satin Chromium Plated
689 (SBL)	Silver Aluminum
690 (DBL)	Dark Bronze
691 (LBL)	Light Bronze
693 (FBL)	Black
696 (GBL)	Satin Brass
BSP	Black Suede Powder Coat
WSP	White Suede Powder Coat

^* Metal cover is required for these finishes.

For split finish on closer cover and arm, specify cover finish first, then arm finish. (e.g., DC6200 x 625 x 689).

DC6200 - Multi-Sized DC6400 - Sizes 1-6, half-size adjustable

Quik-Install™ mounting bracket included, see p11 Closing speed valve

Mountings and Applications

DC6000 Series

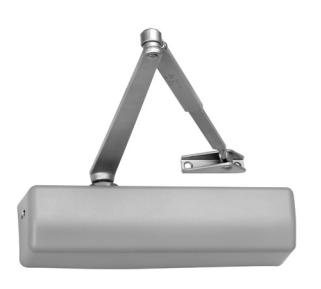

Regular Arm Mounting DC6200, DC6400 Series

Most common mounting, providing the greatest closing efficiency. Closer is mounted on the pull side, with the arm almost perpendicular to the face of the door. Arm bracket is attached to the door frame.

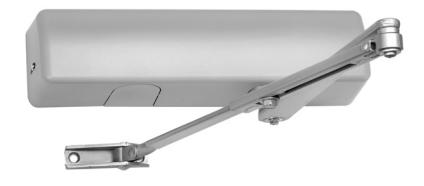

Parallel Arm Mounting DC6210, DC6410 Series

Allows inside application of closer on out-swinging doors. Closer is mounted on the push side, with the arm almost parallel to the face of the door. Arm does not project from the opening.

Top Jamb Mounting DC6220, DC6420 Series

Closer is mounted on the frame on the push side, with the arm perpendicular to the face of the door. Arm bracket is mounted on the door. Minimum 1-3/4" (44mm) top jamb required. Accommodates reveals up to 3-1/4" (83mm).

Track Mounting DC6230, DC6430 Series

Closer is top jamb mounted on the pull side; arm is connected to a door-mounted track. Maximum degree of opening is 110°. Maximum closing power is size 4. Minimum 3" (76mm) frame face required.

Track Mounting DC6240, DC6440 Series

Closer is mounted on push side of door; arm is connected to a stop-mounted track. Maximum degree of opening is 110°. Maximum closing power - size 4.

Contact factory if door weight exceeds 250 lbs.

Mountings

DC6000 Series

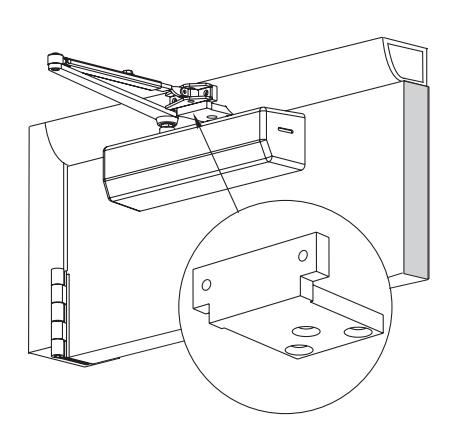

Regular Arm Mounting with Mortise Arm Bracket

Used on inadequately reinforced frames, such as those with bull nose trims.

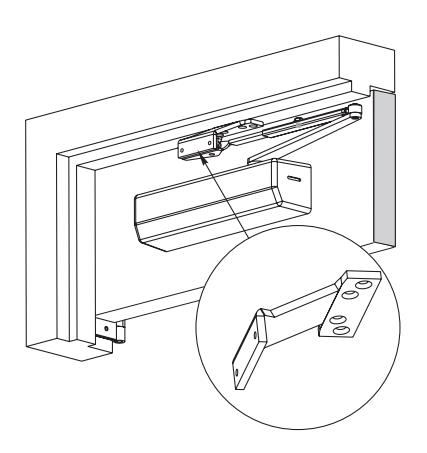

Parallel Arm with Offset Angle Bracket Mounting

Allows parallel arm mounting when used with an overhead door holder.

Parallel Arm Mounting with Flush Transom Bracket

Allows parallel arm mounting on flush transom applications.

Top Jamb Flush Transom Mounting

Closer is top jamb mounted on the push side; arm is attached to the door.

Narrow Frame Mounting

For use when the frame is too narrow for a normal top jamb or top jamb track mounting. (Shown with 188F65 drop plate)

Top Jamb Deep Reveal Mounting

For reveals greater than 3-1/4" (83mm), up to 7-1/4" (184mm).

Arm Options

DC6000

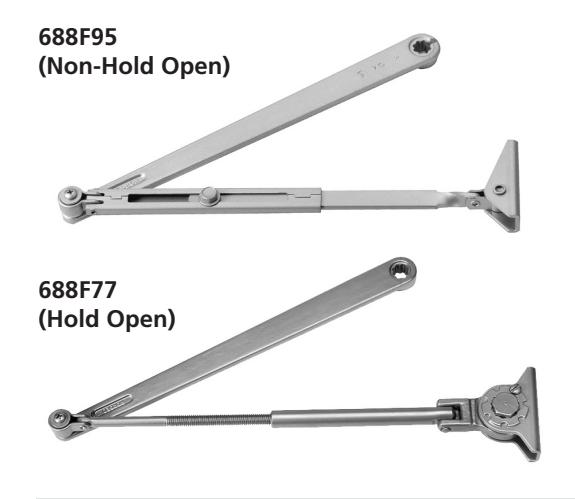

Regular Arm

• Used with regular arm (pull side) and top jamb (push side) mounting
• Available in painted or plated finishes
• Non-hold open arm standard on the DC6200 and DC6400 closers
• Hold open arm optional, specify closer x A1 *

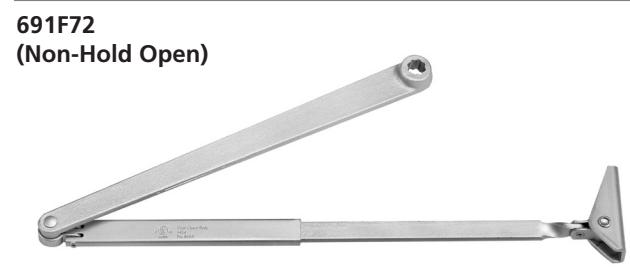

Deep Reveal Arm (3-3/8" (86mm) - 7-1/4" (184mm))

• Accommodates top jamb mounting for reveals up to 7-1/4" (184mm), depending on door and frame conditions
• Mounted on push side
• Available in painted or plated finishes
• Optional on DC6220 and DC6420 closers
• Non-hold open, specify closer x A6
• Hold open, specify closer x A8 *

Non-Hold Open	691F72
Hold Open	691F74

Heavy-Duty Regular Arm

• Recommended for high-use, high-abuse environments
• Tamper-resistant, solid forged steel riveted arm
• Mounted on pull side
• Not available in plated finishes
• Optional on DC6200 and DC6400 closers, specify closer x A10

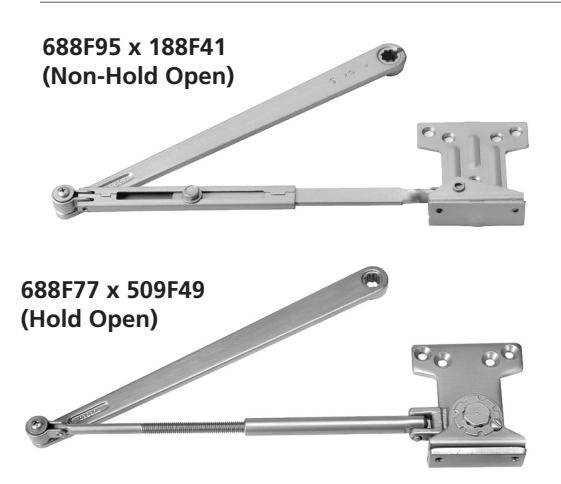

Parallel Arm

• Mounted on push side
• Non-hold open arm combines regular arm with parallel arm mounting bracket
• Available in painted or plated finishes
• Hold open arm combines regular hold-open arm with parallel arm mounting bracket
• Non-hold open arm standard order DC6210 or DC6410 series
• Hold open arm optional, specify closer x A1 *

Specify finish when ordering arms. *Not allowed by code on fire doors.

Arm Options

DC6000

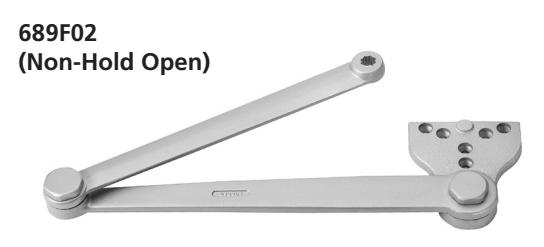

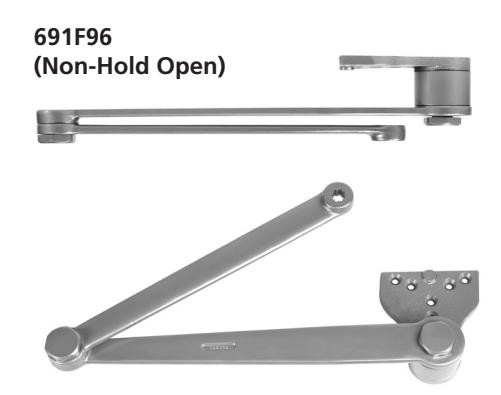

Heavy-Duty Parallel Arm

• Recommended for high-use, high-abuse environments
• Tamper-resistant, solid forged steel riveted arm
• Mounted on push side
• Not available in plated finishes
• Optional on DC6210 and DC6410 closers
• Non-hold open arm, specify closer x A3
• Hold open arm, specify closer x A2 *. Hold-open range 85° to 110°
• For use with overhead stops, specify closer x A13 (see page 10)

Heavy-Duty Reversible Backstop Parallel Arm

• Recommended for high-use, high-abuse environments
• Tamper-resistant, solid forged steel riveted arm
• Mounted on push side
• Not available in plated finishes
• Optional on DC6210 and DC6410 closers
• Field-reversible steel lug restricts degree of opening to protect door, wall and hardware
• Shipped standard as left hand. Handing can be reversed in the field
• Non-hold open arm, specify closer x A4 . Door stop range 85° to 110°
• Hold open arm, specify closer x A5 *. Door stop/hold open range 85° to 110°

(Non-Hold Open)

Refer to page 12 for bracket information

Specify finish when ordering arms. *Not allowed by code on fire doors.

Heavy-Duty Spring Stop Parallel Arm

• Recommended for high-use, high-abuse environments
• Integrates a door closer, shock absorber and auxiliary heavy-duty overhead stop
• Not available in plated finishes
• Hold open*
  • Holder mechanism tension adjustable
• Hold open can be engaged/disengaged with a 1/4 turn of the mechanism with a standard blade type screwdriver
• Optional on DC6210 and DC6410 closers
• Non-hold open arm, specify closer x A11 x door width. Door stop range 85º to 110º.
• Hold open arm, specify closer x A12* x door width. Door stop/hold open range 85º to 110º.

	Model Number
Door Width	Non-Hold Open	Hold Open
28" - 32" (71cm - 81cm)	615F52	615F51
33" - 41" (84cm - 104cm)	615F54	615F53
42" - 48" (107cm - 122cm)	615F56	615F55

Arms and Brackets

DC6000

Heavy-Duty Extra Clearance Parallel Arm

• Recommended for high-use, high-abuse environments
• Provides additional vertical clearance
• Mounted on push side
• Not available in plated finishes
• Optional on DC6210 and DC6410 closers
• Non-hold open arm only, specify closer x A13

Standard Clearance	Closer	With Spacer	Quick Code	Total Clearance
		597F92	M77	2-1/4"
1-3/4"	DC6210	597F93	M78	2-3/8"

Heavy-Duty Parallel Hold Open Arm

• Recommended for high-use, high-abuse environment
• Requires auxiliary stop (by others)
• Handed
• Mounted on push side
• Not available in plated finishes
• Allows door to swing 180º, conditions permitting
• Optional on DC6210 and DC6410 closers
• Hold open arm, specify closer x A14*

Part Number	Handing
692F04	Right Hand
692F05	Left Hand

754F44 Shown

Pull Side Track Arm

• Provides a clean aesthetic look with maximum 110° door swing and a minimum door width of 28"(71cm)
• Mounted on pull side
• Not available in plated finishes
• Non-hold open standard on DC6230 or DC6430 closers
• Hold open, specify closer x A1 *
• Hold open function can be turned on or off using a standard blade screw driver
• Stop/Hold open can be set for 85°, 90°, 95°, or 100°

	Track and Arm	Track Only	Arm Only
Non-Hold Open	754F44	754F09
Hold Open	754F45	754F10	754F16

754F13 Shown

Specify finish when ordering arms or tracks. *Not allowed by code on fire doors.

Push Side Track Arm

• Clean aesthetic look for doors opening a maximum of 110º and a minimum door width of 32" (81cm)
• Mounted on push side
• Not available in plated finishes
• Non-hold open standard on DC6240 and DC6440 closers. For hold open, specify closer x A1 *
• Stop/hold open can be set for 85º, 90º, 95º or 100º
• Hold open function can be turned on or off using a standard blade screw driver

	Track and Arm	Track Only	Arm Only
Non-Hold Open	754F12	754F14
Hold Open	754F13	754F15	754F16

Mounting Brackets

DC6000

188F03

Quik-Install™ Mounting Bracket

• Standard on all closers
• Reduces installation time
• Ensures correct mounting
• Bracket is first mounted to door or frame, then closer is attached
• Bracket size: 1-3/4" (44mm) (vertical) x 6" (152mm) (horizontal)
• Hole spacing: 1" (25mm) (vertical) x 4-5/16" (110mm) (horizontal)

244F17

Mortise Arm Bracket for Regular Arm Mounting

• For regular arm mounting where frame requires reinforcement, i.e., on frames with bull nose trim
• Not available in plated finishes
• Specify closer x M84

188F41

Parallel Arm Non-Hold Open Bracket

• Converts regular arm to parallel arm closer
• Standard with DC6210 and DC6410 closers
• Packed with five screws and 691F78 spacer

509F49

Parallel Arm Hold Open Bracket

• Converts regular arm hold open to parallel arm hold open closer
• Standard with DC6210 x A1 or DC6410 x A1 closer

188F62

Parallel Arm Offset Bracket

• Required when parallel arm is used in conjunction with an overhead door holder
• Specify DC6210 x M83 or DC6410 x M83 closer

Parallel Arm Flush Transom Bracket

• Required when parallel arm mounting is used on a flush transom application
• Not available in plated finishes
• Specify DC6210 x M82 or DC6410 x M82 closer

Specify finish when ordering parts.

Brackets

DC6000

499F30

Flush Transom Bracket

• Available separately for mounting A2, A3, A4, A5, A13 and A14 heavy-duty arms on rabbeted or flush transom conditions
• Not available in plated finishes
• Specify closer x M79

447F14

Angle Support Bracket

• Available separately for mounting A2, A3, A4, A5, A13 & A14 heavy-duty arms on narrow frame or soffit conditions
• Specify DC6210 x M85 or DC6410 x M85 closer

691F78

Spacer Block

• For use where a narrow frame soffit does not provide adequate surface to support the fifth arm bracket mounting hole
• Supplied standard with DC6210 and DC6410 non-hold open closers with A2, A3, A4, A5, A13 and A14 heavy-duty parallel arms

597F92 (1/2") 597F93 (5/8")

Blade Stop Spacer

• Available for use with A2, A3, A4, A5, A13 & A14 heavy-duty arms.
• Specify closer x M77 (597F92)
• Specify closer x M78 (597F93)

Maximum Power Normal Power Hinge location

Power Adjustment Arm Bracket

• Standard on all closers without hold open, except heavy-duty and track type
• In regular arm or top jamb mounting, bracket may be reversed to increase closing power 15%

615F58

Reinforcing Bracket

• Supplied as standard for use with A11 and A12 spring stop arms
• Provides additional support to the soffit plate on installations with door frame reveals from 1-7/8" to 4-5/8" (48 to 117mm)
• Not available in plated finishes

615F59

Deep Reveal Reinforcement Kit

• For use with A11 and A12 spring stop arms
• Used to support the soffit plate on installations with deep frames. Clamps may be used with or without the spacer block, depending on frame conditions
• Not available in plated finishes
• For frames deeper than 4-5/8" (117mm), specify closer x M103

615F60

Flush Partition Bracket

• For use with A11 and A12 spring stop arms where rabbeted or flush transom conditions prevent installation of the soffit plate assembly
• Bracket fastens to the overhead transom to provide a mounting surface for the soffit plate assembly
• Specify DC6210 x M104 or DC6410 x M104 closer

Specify finish when ordering parts.

Covers and Plates

DC6000

597F78

Full Cover

• Standard on all DC6000 series door closers
• Completely covers closer body
• Non-handed
• Dimensions: 11-5/8" (295mm) x 3" (76mm) x 2-3/4" (70mm) deep
• Available in painted finishes only
• Flame rated V-O material compliant with UL10C

Full Metal Cover

• For use in high-abuse applications or when an architectural plated finish is desired
• Specify hand; not field reversible
• Available in painted and plated finishes
• Dimensions: 11-1/2" (292mm) x 2-7/8" (73mm) x 2-3/4" (70mm) deep

Part Number	Handing
603F55	RH/LHR
603F57	LH/RHR

Drop Plate

Permits parallel arm mounting on door when top rail is too narrow to install closer in the regular manner. Minimum 2-5/8" (67mm) top rail required. Jamb mounted where

there is insufficient ceiling clearance for standard mounting or where it is necessary to allow vertical arm clearance for overhead door holders or frame gasketing. To order separately, specify Part No. x Finish.

	Drop Plate
Closer Series	With Full Cover
DC6210, DC6410	597F58
DC6220, DC6420	188F65
DC6240, DC6440	597F58

Door Closer Sizes

DC6000

Factors in Determining Closer Size

1 – Weight and Height of Door

Doors vary in weight from light hollow-core wood doors to heavy metal doors. Door sizes listed in the chart are based on doors of standard weight and height. Extra-light or extra-heavy weight or unusual height must be compensated for. Contact factory if door weight exceeds 250 lbs.

2 – Draft and Wind Conditions

Draft and wind conditions are perhaps the most important factors to consider in determining the closer size required. Sizes listed in the chart apply to normal conditions. Stairwells, air conditioning, building construction, and door location can cause strong draft and wind conditions; these may necessitate adjusting spring power to a larger size or using a closer one size larger.

3 – Location of Closer

The degree of door opening required determines the location of the closer on the door. Closer sizes listed in the chart are based on 180° opening.

4 – Special Conditions

Deep reveals require optional extended arms. A top jamb plate is required when the jamb is too narrow for a normal top jamb mounting.

5 – Code Compliance

A multi-sized, fully adjustable closer such as the DC6200 closer provides the greatest flexibility in balancing barrier-free access, security and life safety codes. However, when a manual closer is installed and adjusted to comply with ADA or any other reduced opening force requirements, it may no longer have sufficient power to close and latch the door reliably.

Recommended Door Closer Sizes
	Door Width
Application	Interior	Exterior, In-Swinging	Exterior, Out-Swinging	Recommended Closer Size
	2'4" (71cm)	—	—	1
	3'0" (91cm)	—	—	2
	3'6" (107cm)	2'6" (76cm)	3'0" (91cm)	3
Regular or Top Jamb	4'0" (122cm)	3'0" (91cm)	3'6" (107cm)	4
	4'6" (137cm)	3'6" (107cm)	4'0" (122cm)	5
	5'0" (152cm)	4'0" (122cm)*	4'6" (137cm)*	6
	2'4" (71cm)	—	—	1
	2'6" (76cm)	—	—	2
	3'0" (91cm)	—	2'6" (76cm)	3
Parallel Arm	3'6" (107cm)	—	3'0" (91cm)	4
	4'0" (122cm)	—	3'6" (107cm)*	5
	4'6" (137cm)	—	4'0" (122cm)*	6

^* Due to half-size adjustability, the DC6400 Series is recommended.

DC6000

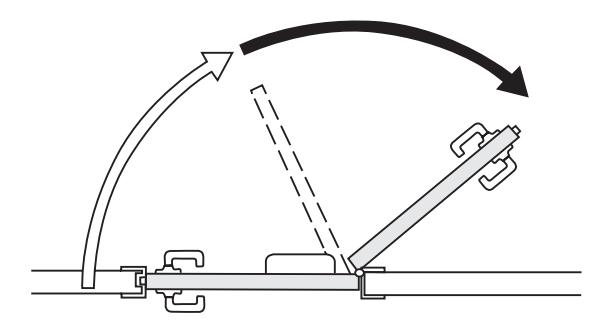

Handing

Refers to the direction a door swings; always determined from the outside of the door.

Regular Mounting

Door: left hand

Closer: left hand pull side

Door: right hand

Closer: right hand pull side

Parallel Arm Mounting

Door: left hand reverse bevel Closer: right hand push side

Door: right hand reverse bevel Closer: left hand push side

Top Jamb Mounting

Door: left hand reverse bevel Closer: right hand push side

Door: right hand reverse bevel Closer: left hand push side

Helpful Terms

DC6000

Backcheck

Slows a door at approximately 70° of the opening cycle, by providing cushioned resistance to a forceful opening. Designed to protect people and objects behind the door and to prevent damage to the closer, hardware, and wall. Intensity can be increased or decreased. Not intended to act as a stop.

Backcheck Location

The point (approximately 70°) in the opening cycle where backcheck takes effect.

Closing Speed

The speed at which a door swings from the full open position to within a few degrees of latching. See Latching Speed.

Corrosion Protection

Additional painted covering on all external parts to deter oxidation and corrosion.

Delayed Action

Slows door closing speed between maximum opening and approximately 70°. Often specified to meet barrier-free codes which require longer closing times. Also used in high traffic situations (auditoriums, classrooms, etc.) or when carts and gurneys are pushed through the doors.

Door Stop

A device to stop the swing of a door.

Hold Open

Maintains door at a particular degree of opening. A mechanical hold open may not be used on labeled fire doors, which must be self-closing.

Multi-Sized Closer

A closer whose spring design allows full adjustment of the spring power size from 1 through 6.

Latching Speed

The speed of the door during the last few degrees of closing. Allows latching and prevents slamming.

Mounting

The method by which a closer is attached to the door and frame.

Multiple Backcheck Location Valve

Valve that changes the degree of door angle where backcheck occurs.

Quik-Install™ Mounting Bracket

Unique bracket which simplifies installation and minimizes installer fatigue.

Sex Nuts and Bolts (SNBs)

Through-bolts required for all non-steel-reinforced fire doors, and recommended for non-reinforced wood and mineral core doors.

Sized Closer

A closer whose spring design allows for a fixed spring power size 1 through 6.

Spring Power

A measurement of closing force, or the ability to overcome draft, air pressure, weight or other resistance to door closing.

Star Punch

An eight-point hole in the closer arm, permitting spindle preloading. Provides full functioning of backcheck and delayed action valves.

Universal Mounting

The ability of a closer to accommodate either hand for regular, top jamb or (using a bracket) parallel arm mounting.

How To Order

DC6000

Stock

Quantity	Series/Mounting/Size	Finish	Misc. Options
50	DC6210	689	M54

Ordering Examples Where to find ordering information and quick codes

Series/Mounting/Size	Page 17
Arm	Page 18
Finish	Page 18
Handing	Page 18
Door Thickness	Page 18
Miscellaneous Options	Page 19

Job Specific

Quantity	Series/Mounting/Size	Finish	Hand	Thickness	Options
50	DC6413	626	RH	D138	M71-M73

Split Finish

	Quantity			Finish
		Series/Mounting/Size	Cover	Arm	Hand	Misc. Options
	10	DC6210	626	689	RH	M54

NOTE:

• Before installing a door closer, verify the accessibility, fire, and life-safety requirements that are in effect. This includes the mounting height and projection into the clear opening. Check the adopted state and local building codes and consult the Authority Having Jurisdiction (AHJ)
• To maintain the warranty and ensure proper operation of the product, follow the installation instructions & templates and install on the inside of the building.
• Consult NFPA 80 for the hinge requirements on a fire door.
• Failure to use fasteners supplied with closer may void factory warranty.
• Optional fasteners are available for a variety of applications. Consult the door and frame manufacturer to ensure the proper fasteners are used to maintain certifications.
• Sizing charts are based on 1-3/4" x 7' standard weight doors swinging to 110°. Other application conditions (e.g. larger door heights or weight) may require larger size closer.

Series/Mounting/Size

Description	Mounting	Non-sized	Size 1 Specify	Size 2 Specify	Size 3 Specify	Size 4 Specify	Size 5 Specify	Size 6 Specify
	Regular arm	DC6200	—	—	—	—	—	—
DC6200 Closers	Parallel arm	DC6210	—	—	—	—	—	—
Multi-sized; full adjustability from	Top jamb	DC6220	—	—	—	—	—	—
size 1-6	Track (Pull Side)	DC6230	—	—	—	—	—	—
	Track (Push Side)	DC6240	—	—	—	—	—	—
	Regular arm	—	DC6401	DC6402	DC6403	DC6404	DC6405	DC6406
	Parallel arm	—	DC6411	DC6412	DC6413	DC6414	DC6415	DC6416
DC6400 Closers Sized; 1⁄2-size	Top jamb	—	DC6421	DC6422	DC6423	DC6424	DC6425	DC6426
adjustability	Track (Pull Side)	—	—	—	DC6433	DC6434	DC6435	DC6436
	Track (Push Side)	—	—	—	DC6443	DC6444	DC6445	DC6446

Copyright © 2004-2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Quick Codes

DC6000

Arm

Arm	Specify Quick Code
Regular non-hold open	(standard)
Hold open	A1*
Heavy-duty parallel with hold open	A2*
Heavy-duty parallel non-hold open	A3
Heavy-duty backstop non-hold open	A4
Heavy-duty backstop with hold open	A5*
Deep reveal (3-3/8"-7-1/4")	A6
Deep reveal with hold open	A8*
Heavy-duty regular non-hold open	A10
Spring stop non-hold open (specify door width)	A11
Spring stop heavy-duty with hold open (specify door width)	A12*
Heavy-duty parallel arm with extra clearance	A13
Heavy-duty friction hold open arm (specify hand)	A14*
Push side track with hold open	A1*

^* Hold open arms cannot be used on fire doors.

Handing

Hand	Specify
Left Hand/Right Hand Reverse	LH
Right Hand/Left Hand Reverse	RH

Blade Stop

Spacer	Specify Quick Code
1/2"	M77
5/8"	M78

Torx® Tool Kit Package

Description	Specify
Bits and driver	597F24

Finish

Old Designation	Description	Specify Quick Code
USP	Primed	600
US3	Bright Brass	605*
US4	Satin Brass	606*
US9	Bright Bronze	611*
US10	Satin Bronze	612*
N/A	Dark Oxidized Satin Bronze, Equivalent	613E
US26	Bright Chromium Plated	625*
US26D	Satin Chromium Plated	626*
SBL	Silver Aluminum	689
DBL	Dark Bronze	690
LBL	Light Bronze	691
FBL	Black	693
GBL	Satin Brass	696
BSP	Black Suede Powder Coat
WSP	White Suede Powder Coat	WSP

^* Metal cover is required for these finishes.

For split finish on closer cover and arm, specify cover finish first, then arm finish. (e.g., DC6200 x 625 x 689).

Door Thickness

Door Thickness	Specify
1-3/4" (44mm)	(standard)
2" (51mm)	D200
2-1/4" (57mm)	D214

Quick Codes

DC6000

Miscellaneous Options

	Description	Specify Quick Code
Torx® machine screws		M04
Sex nuts and bolts (SNBs) (1-3/4" minimum thickness)		M54
Backcheck intensity and location valves		(standard)
Delayed action		M71
Full cover		(standard)
Full metal cover (Handed)		M73
Extreme temperature fluid		(standard)
Corrosion protection		M75
1/2" spacer		M77
5/8" spacer		M78
Drop plates - order by number (formerly M80, M81 and M102 quick codes)
Closer Series	Old Quick Ship #	Drop Plate With Full Cover
DC6210, DC6410 (Parallel)	M80	597F58
DC6220, DC6420 (Top Jamb)	M80	188F65
DC6230, DC6430 (Pull Side)	M81	597F59
DC6240, DC6440 (Push Side)	M102	597F59
	Heavy-duty parallel arm flush transom bracket (499F30) used with A2, A3, A4, A5, A13 & A14 arms	M79
Parallel arm flush transom bracket (parallel or A1)		M82
Parallel arm offset bracket		M83
Mortise arm bracket (for regular arm mounting)		M84
Angle support bracket		M85
Spacer (691F78) (formerly M86 quick code)		(standard)
	Security package (available with A2, A3, A4, A5 and A10 optional arms). Covers are handed.	M87
Deep reveal reinforcement kit (available with A11 & A12 arms)		M103
Flush partition bracket (available with A11 & A12 arms)		M104
Lead-lined metal cover		M108

Specifications

DC6000

ANSI A156.4 Certified Closer Cross Reference

ANSI Number	Function	Series	PT 4A 15% Power Adjustment	PT 4B 35% Power Adjustment	PT 4C 50% Power Adjustment	PT 4D Adjustable Backcheck	PT 4F Delayed Action	PT 4G Dead Stop	PT 4H Fully Adjustable
CO2011	Hinge Side	DC6200	S	S	S	S	O	N/A	S
(PT 1)	Mounting	DC6400	S	S	S	S	O	N/A	N/A
CO2051	Hinge Side	DC6200-A1	S	S	S	S	O	N/A	S
(PT 1)	Mounting	DC6400-A1	S	S	S	S	O	N/A	N/A
CO2021	Parallel Arm	DC6210	S	S	S	S	O	O	S
(PT 1)	Mounting	DC6410	S	S	S	S	O	O	N/A
CO2061	Parallel Arm	DC6210-A1	S	S	S	S	O	O	S
(PT 1)	Mounting	DC6410-A1	S	S	S	S	O	O	N/A
CO2041	Top Jamb	DC6220	S	S	S	S	O	N/A	S
(PT 1)	Mounting	DC6420	S	S	S	S	O	N/A	N/A
CO2081	Top Jamb	DC6220-A1	S	S	S	S	O	N/A	S
(PT 1)	Mounting	DC6420-A1	S	S	S	S	O	N/A	N/A
CO2231	Push Side	DC6240	S	S	S	S	O	O	S
(PT 1)	Mounting	DC6440	S	S	S	S	O	O	N/A
CO2241	Push Side	DC6240-A1	S	S	S	S	O	O	S
(PT 1)	Mounting	DC6440-A1	S	S	S	S	O	O	N/A
CO2251	Pull Side	DC6230	S	S	S	S	O	O	S
(PT 1)	Mounting	DC6430	S	S	S	S	O	O	N/A
CO2261	Pull Side	DC6230-A1	S	S	S	S	O	O	S
(PT 1)	Mounting	DC6430-A1	S	S	S	S	O	O	N/A

ANSI Performance Requirements: (PT 1) — 2,000,000 cycles — closer without backcheck feature. ANSI Performance Requirements: (PT 1) — 1,500,000 cycles — closer with backcheck feature. N/A = not available S = standard O = option available

ANSI Options:

DC6200 includes PT4-A, B, C, D, H. Optional: PT4-F, G, J. DC6400 includes PT4-A, B, C, D. Optional: PT4-F, G, J.

Specifications

DC6000

Suggested Specification

Door closers shall be of rack and pinion construction with a cold headed heat-treated steel spindle and a steel piston precision machined and heat treated. The case shall be of cast iron with seamless cold headed steel spring tube. A two-piece or seamed spring tube shall not be acceptable. Springs shall be tempered chrome silicon. Closers shall have a heavy-duty, forged steel main arm.

Optional arms shall include parallel, hold open, heavy-duty, heavy-duty hold open, heavy-duty reversible backstop, heavy-duty reversible backstop with hold open, heavy-duty spring stop, heavy-duty spring stop with hold open, deep reveal, top jamb track and stop mounted track.

The following size options shall be available:

• Fully adjustable spring power to accommodate sizes 1 through 6.
• Spring power shall be adjustable by one half size over minimum for each size.

All sizes shall be accommodated in one closer body. Closing shall be controlled by two valves — one to control closing speed and one to control latching speed. Valves shall be concealed against unauthorized adjustment and be non-critical with "O" ring seals.

(Door closers shall have an adjustable delayed action feature, controlled by a separate valve.)

Closers shall be furnished with an adjustable backcheck intensity valve. Valve shall be accessible without removing the closer from the door.

Closers shall be furnished with a backcheck location valve, providing a choice of locations where backcheck begins in the door opening cycle between 70° and 90° of door opening. This valve shall be functional for all regular, top jamb, parallel arm, and track type mountings.

Closers shall be surface applied with rectangular cover, and shall be devoid of manufacturer's trademarks. Closers shall not project over 23/4", and shall be capable of mounting on 1-3/4" top rail or inverted mounting on 13/4" top jamb. Full cover and full metal cover with security fasteners shall be available. When required, metal covers shall be available in plated finishes. Regular arm and top jamb mounted closers without hold open shall be regularly furnished with power adjustment arm bracket capable of providing a 15% power adjustment. A Quik-Install™ mounting bracket to attach the closer shall be regularly furnished. Closers not having a mounting bracket shall not be acceptable. Hydraulic fluid shall be of a type requiring no seasonal valve readjustment due to extreme temperature variations. Closers mounted top jamb and parallel arm shall allow for full 180° door opening.

Closers with non-hold open arms shall be listed by Underwriters Laboratories for swinging fire doors and for positive pressure listed openings.

All closers shall be available in architectural finishes to match corresponding door hardware.

Certification:

ANSI/BHMA A156.4, Grade 1 ADA/ANSI A117.1 UL10C positive pressure up to 3 hours UL-cUL

Closers shall carry a 30-year limited warranty.

Closers shall be Corbin Russwin (DC6200) (DC6400) series.

The ASSA ABLOY Group is the global leader in access solutions. Every day, we help billions of people experience a more open world.

ASSA ABLOY Opening Solutions leads the development within door openings and products for access solutions in homes, businesses and institutions. Our offering includes doors, frames, door and window hardware, mechanical and smart locks, access control and service.

For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.

In U.S.

Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com

In Canada

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca
