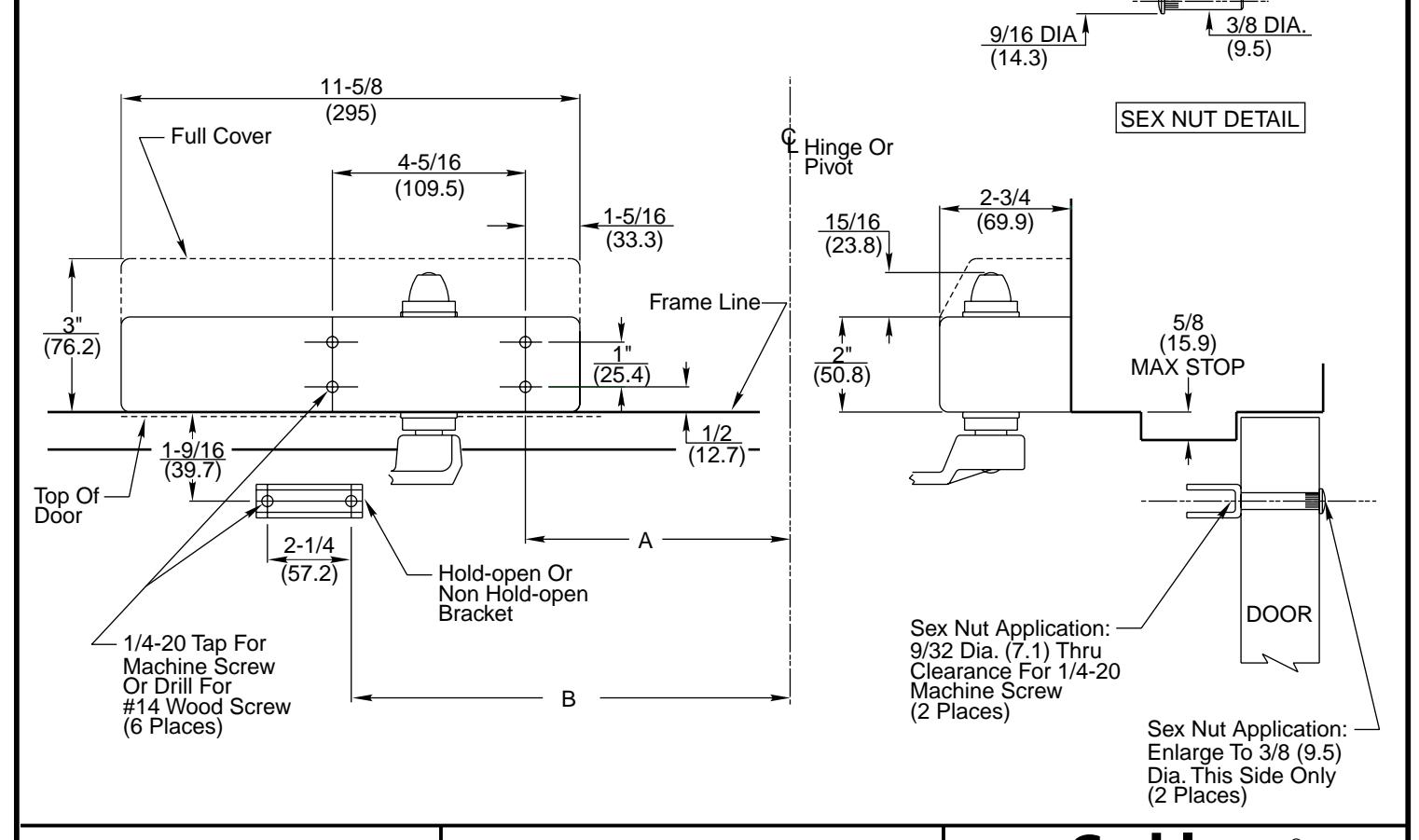

MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

CLOSER TO BE INSTALLED IN A TRUE HORIZONTAL CAUTION: POSITION TO ENSURE PROPER CLOSER PERFORMANCE.

Hinge

1-21/32 (42.1) For 1-3/4 (44.5) Inch Doors (Length may vary for other door thicknesses)

Opening

		Maximum	Α	В	Condition
OTES: Dimensions given in inches and (mm). Minimum 1-3/4 (44.5) required for top iamb and top rail.		110°	8-7/8 (225.4)	13-3/8 (339.7)	Butts, Offset Pivots, And Swing Clear
		180°	5-7/8 (149.2)	10-3/8 (263.5)
	Ł	140°	7-3/8 (187.3)	11-7/8 (301.6)	Hinges
					Center Hung

NO

• 1 [
• 2.1 jamb and top rail.
• 3. Dimensions "A" & "B" apply to centerline of hinge/pivot for butt, swing clear, offset and center hung pivots.

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC6220 Series DC6420 Series Surface Door Closer Top Jamb Mounting (with or without A1, A6, or A8)
