For 20" Wide Doors
Hold-open Stop Α В
85° 90° 7-7/8 (200) 6-7/8 (175)
90° 95° 7-1/4 (184) 6-1/4 (159)
95° 100° 6-3/4 (171) 5-3/4 (146)

MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors unless door manufacturer has a listed alternative means for fastening door hardware.

Closer To Be Installed In A True Horizontal Position To Ensure Proper Closer Performance.

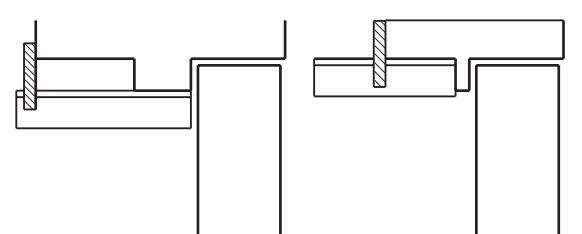

RH SHOWN LH OPPOSITE

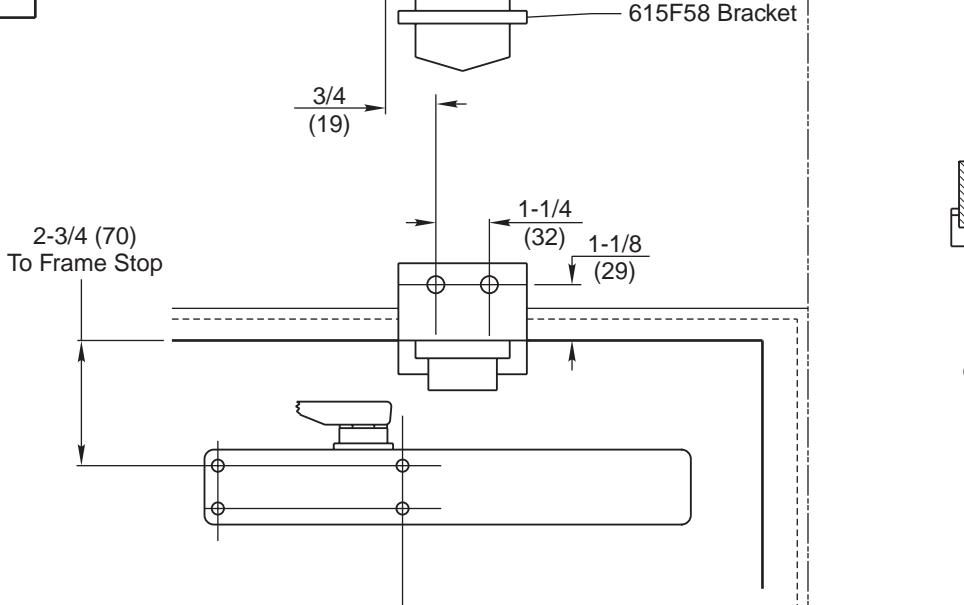

Corbin Russwin DC6000 Series DC6210 Surface Door Closer with A11, A12 Arms Push Side Mounting 615F59 Kit and 615…_T31033 diag

(70)

(51)

7/16

(13)

Hinge

3/8

Corbin Russwin DC6000 Series DC6210 Surface Door Closer with A11, A12 Arms Push Side Mounting 615F59 Kit and 615…_T31033 imag

This page for Frame Reveals 1-7/8 to 4-5/8 (48mm to 117mm) See page 2 for other Frame Reveals.

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC6210 With Spring Stop Arm A11 or A12 Push Side Mounting Standard Reinforcing Bracket 615F58 Stop Installation for Door 24 in (61 cm) wide

Page 1 of 2

Corbin 🗷 ASSA ABLOY

www.corbinrusswin.com

TEMPLATE NUMBER

-800-543-3658

T31033-1

01-08

MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors unless door manufacturer has a listed alternative means for fastening door hardware.

Corbin Russwin DC6000 Series DC6210 Surface Door Closer with A11, A12 Arms Push Side Mounting 615F59 Kit and 615…_T31033 diag

Closer To Be Installed In A True Horizontal Position To Ensure Proper Closer Performance.

RH SHOWN

Corbin Russwin DC6000 Series DC6210 Surface Door Closer with A11, A12 Arms Push Side Mounting 615F59 Kit and 615…_T31033 diag

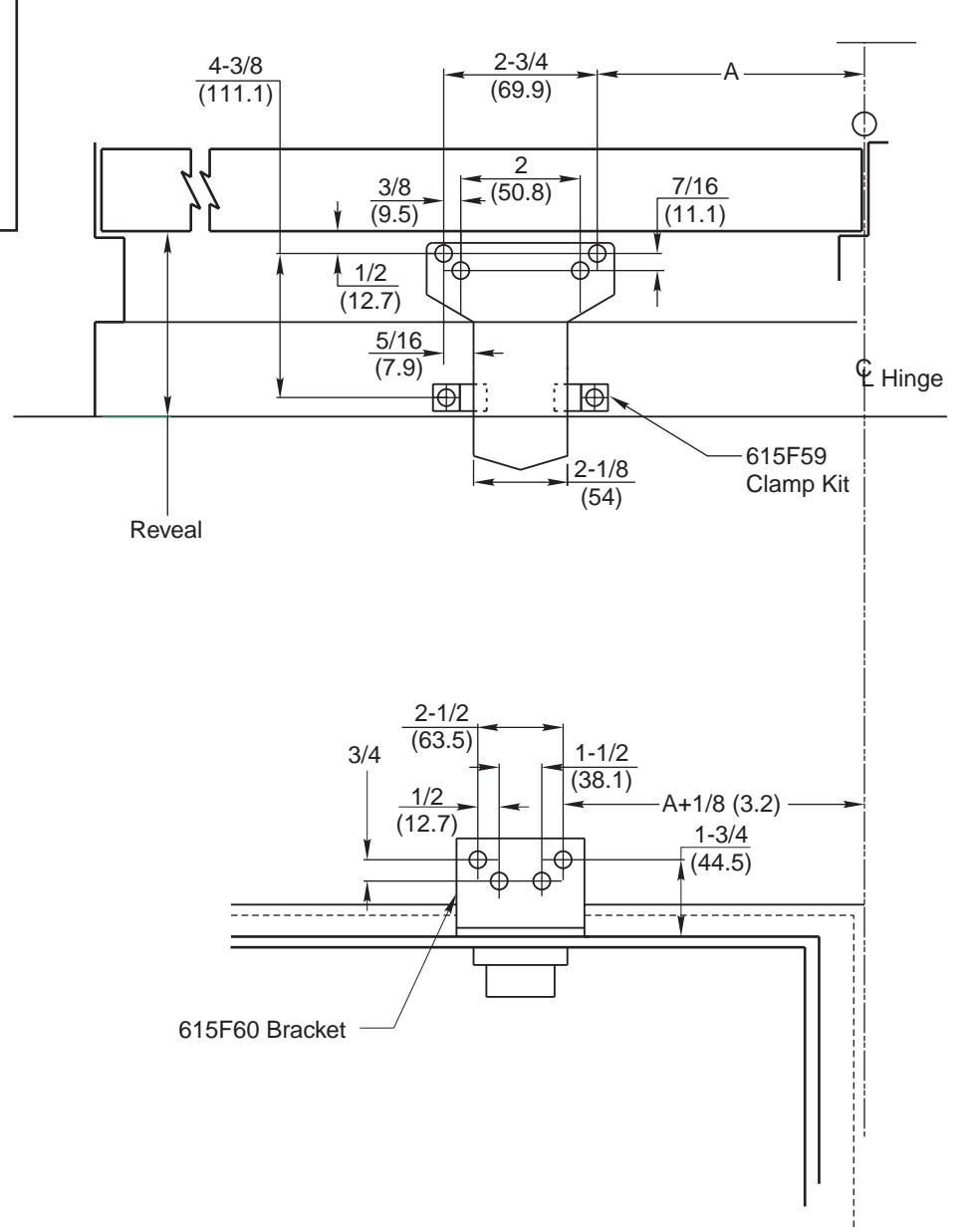

Frame Reveals Over 4-5/8 (Uses 615F59 Clamp Kit)

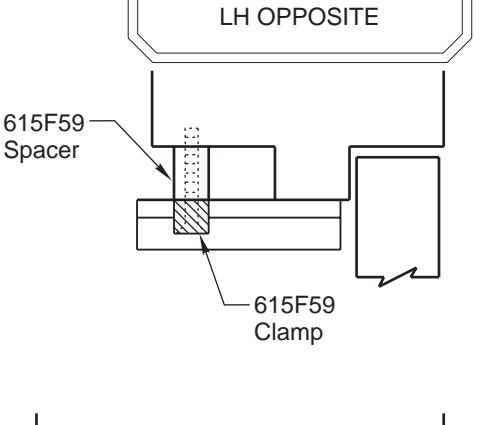

615F59

Clamp

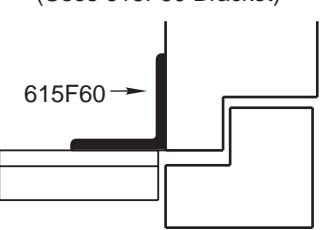

Flush Partitions (Uses 615F60 Bracket)

Corbin Russwin DC6000 Series DC6210 Surface Door Closer with A11, A12 Arms Push Side Mounting 615F59 Kit and 615…_T31033 imag

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC6210 With Spring Stop Arm A11 or A12 Push Side Mounting Optional Brackets 615F59 & 615F60 Stop Installation for Door 24 in (61 cm) wide

Page 2 of 2

-800-543-3658 Corbin Z ASSA ABLOY www.corbinrusswin.com

TEMPLATE NUMBER T31033-2

01-08
