MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

CAUTION:

NOTES:

• 1. To obtain extra closing force, add 3" (76.2) to dimensions marked by (*). This will limit degree of door opening to 110°.
• 2. Dimensions given in inches and (mm).
• 3. Minimum Top Rail: 4-9/16 (115.9)
• 4. Parallel arm bracket shown is for non hold-open applications. Bracket mounting for hold-open applications is identical.
• for butt or swing clear hinges; offset or center pivots.

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC6210 Series DC6410 Series

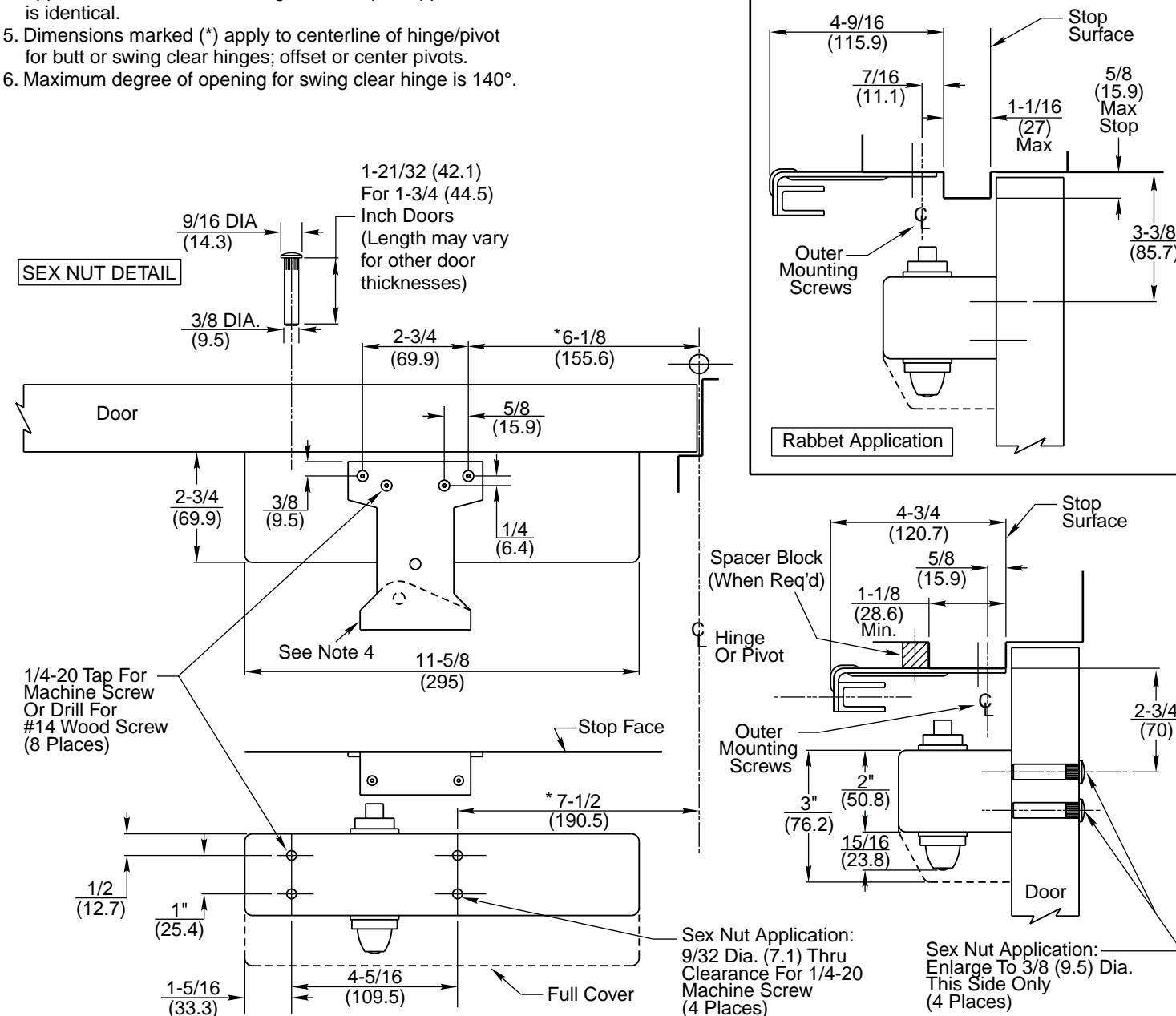

Surface Door Closer Parallel Arm Mounting (with or without A1)

Corbin

CLOSER TO BE INSTALLED IN A TRUE HORIZONTAL

POSITION TO ENSURE PROPER CLOSER PERFORMANCE.
