MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

Opening
Maximum 		Α В Min
Door Width 		Application
90° 12-3/4
(324) 		11-5/8
(295) 		27-3/4
(705) 		NON
A.D.A.
180° 8-11/16
(221) 		7-9/16
(192) 		23-5/8
(600) 		Ł

NOTES:

  • 1. Dimensions "A" & "B" apply to centerline of hinge/pivot for butt, swing clear, offset and center hung pivots.
  • 2. Maximum degree of opening for center hung pivot is 140°
  • 3. Dimensions given in inches and (mm).
  • 4. Minimum Top Rail: 4-3/16 (106.4)

CAUTION: Closer To Be Installed In A True Horizontal Position To Ensure Proper Closer Performance.

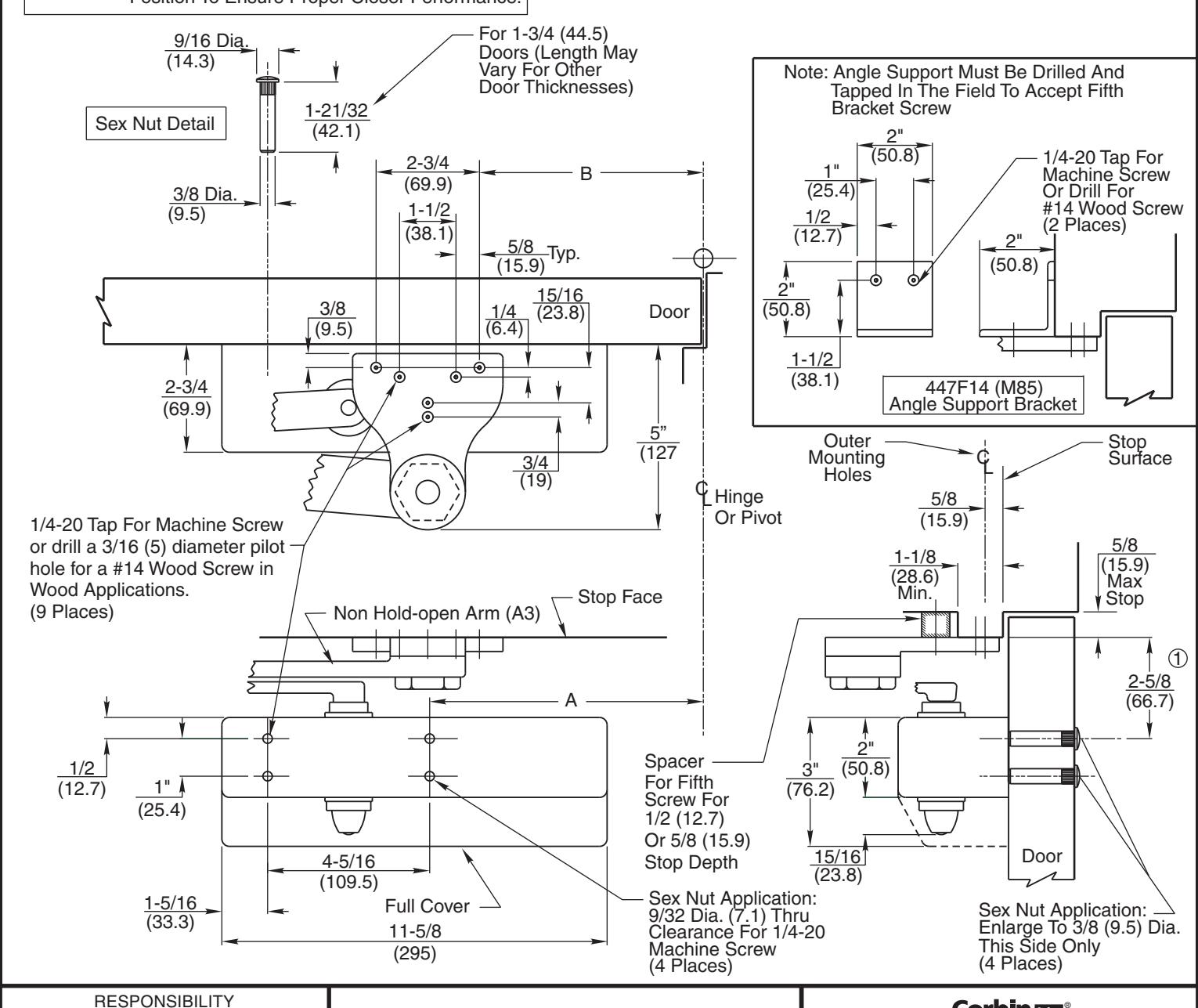

Corbin Russwin DC6000 Series DC6210, DC6410 Surface Door Closer with A3 Arm Parallel Arm Mounting Template_T30716 diagram on

DC6210 Series By A3

DC6410 Series By A3

Surface Door Closer

Parallel Arm Mounting

By Heavy Duty Arm

DOOR AND FRAME MANUFACTURERS ARE

RESPONSIBLE FOR PROVIDING ADEQUATE

CONSTRUCTION OR REINFORCEMENTS FOR

PROPER INSTALLATION OF HARDWARE SHOWN

ALL ARCHITECTURAL BUILDERS HARDWARE MUST

BE INSTALLED ON PROPERLY REINFORCED

DOORS AND FRAMES, REGARDLESS OF TYPE,

MATERIAL OR METHOD OF CONSTRUCTION

T30716

SUPERSEDES

TEMPLATE NUMBER

assa abloy

www.corbinrusswin.com

T30716-1

DO NOT SCALE DRAWING

04-10
