Mounting Information

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

OPENING
MAXIMUM 		А В
85° 13-3/4 (349) 12-7/16 (316)
90° 12-13/16 (325) 11-1/2 (292)
100° 11-1/4 (286) 9-15/16 (252)
110° 9-15/16 (252) 8-5/8 (219)

RH Shown LH Opposite

CAUTION:

Closer to be installed in a true horizontal position to ensure proper closer performance.

Notes:

  • 1. Dimensions "A" & "B" apply to centerline of hinge/pivot for butt, swing clear and offset pivots.
  • 2. Dimensions given in inches and (mm).
  • 3. Minimum top rail: 4-3/16 (106.4).

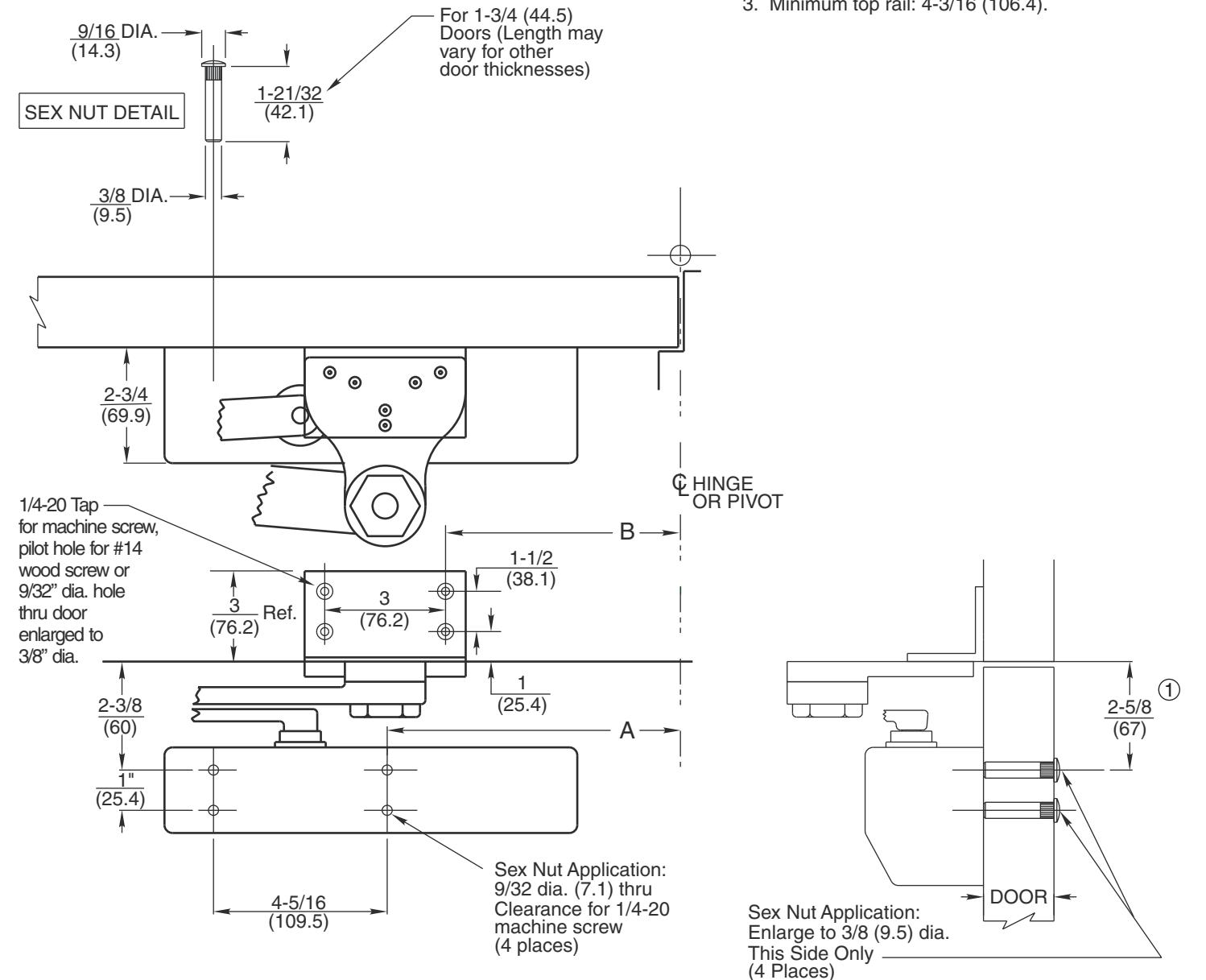

Corbin Russwin DC6000 Series DC6210, DC6410 Surface Door Closer with A2, A4, A5 Arms Heavy Duty Parallel Arm Mou…_T31030 diag

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

DC6210 Series by A2, A4, A5 DC6410 Series by A2, A4, A5

Heavy Duty Arm Flush Transom Bracket 499F30

Corbin Russwin DC6000 Series DC6210, DC6410 Surface Door Closer with A2, A4, A5 Arms Heavy Duty Parallel Arm Mou…_T31030 diag
