MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

Door Thickness

Α

7-1/4 (184)

3-3/16 (81)

В

11-5/8 (295)

7-9/16 (192)

Opening

Maximum

90° 180°

RH SHOWN LH OPPOSITE

С

Minimum

27-7/8 (708)

23-5/8 (600)

Sex Nut

NOTES:

  • 1. Dimensions given in inches and (mm).
  • 2. Maximum degree of opening for center hung pivot is 140°
  • 3. Minimum Top Rail: 3" (76.2)
  • 4. Dimensions "A" & "B" apply to centerline of hinge/pivot for butt or swing clear hinge; offset or center pivots.

COVER PLATE "D" Dim.
Full (Std.) 597F58 3/8 (9.5)
Slim (Opt. M76) 188F65 1/8 (3.2)

Closer To Be Installed In A True Horizontal

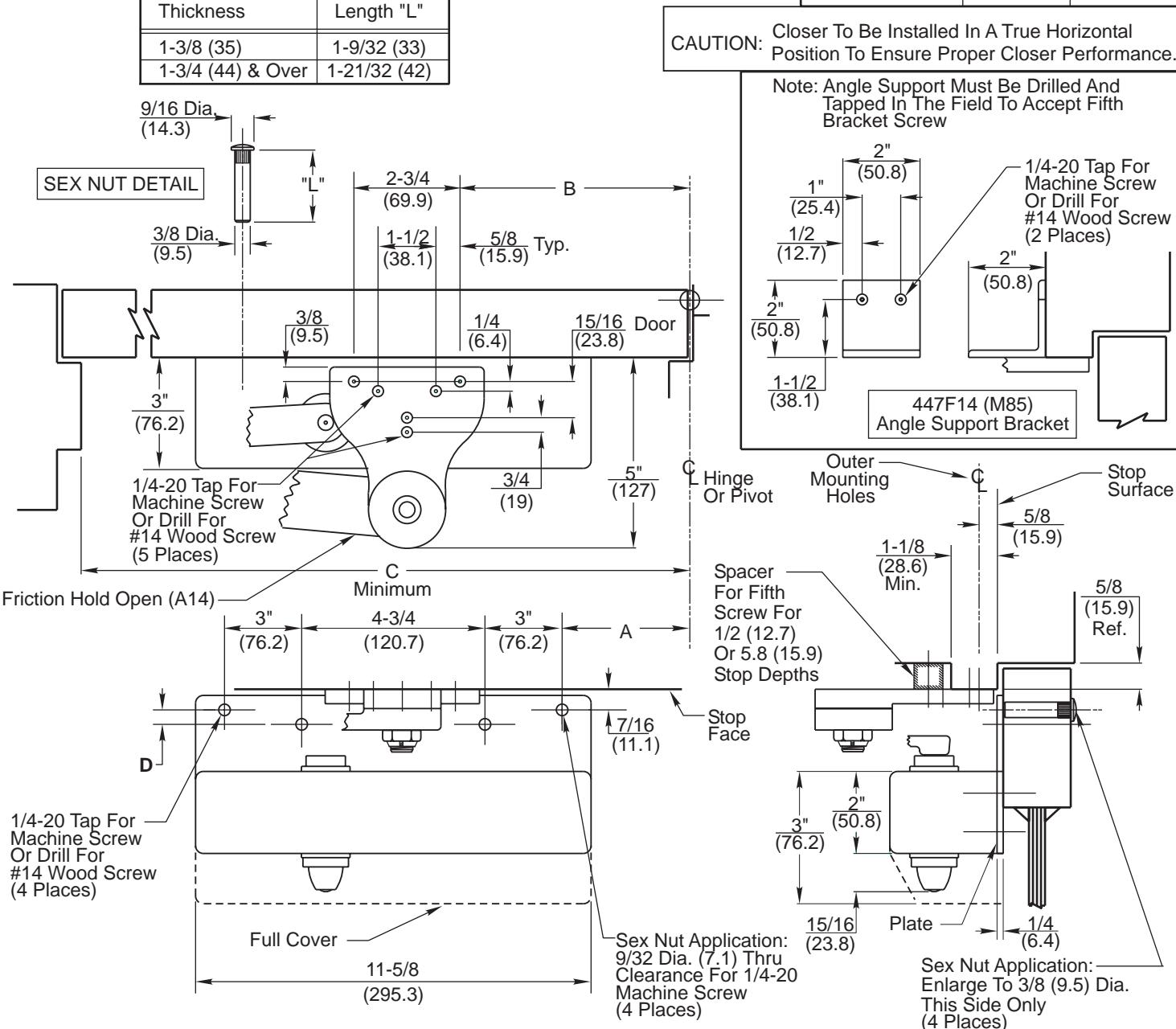

Corbin Russwin DC6000 Series DC6210, DC6410 Surface Door Closer with A14 Arm Parallel Arm Mounting 597F58 Plate …_T31020 diag

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC6210 Series By A14 DC6410 Series By A14 And Plate 597F58/188F65 Surface Door Closer Parallel Arm Mounting By Friction Hold Open and Plate

Corbin www.corbinrusswin.com

Do Not Scale Drawing Supersedes Dr Date Template Number T31020 09-05
