MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

Top Rail А В Minimum Clearance
Required Over Door
Non Hold-open Hold-open
2-1/2 & OVER (63.5) 2-13/16
(71.4) 		7/8
(22.2) 		1-1/2
(38.1) 		1-11/16
(42.9)

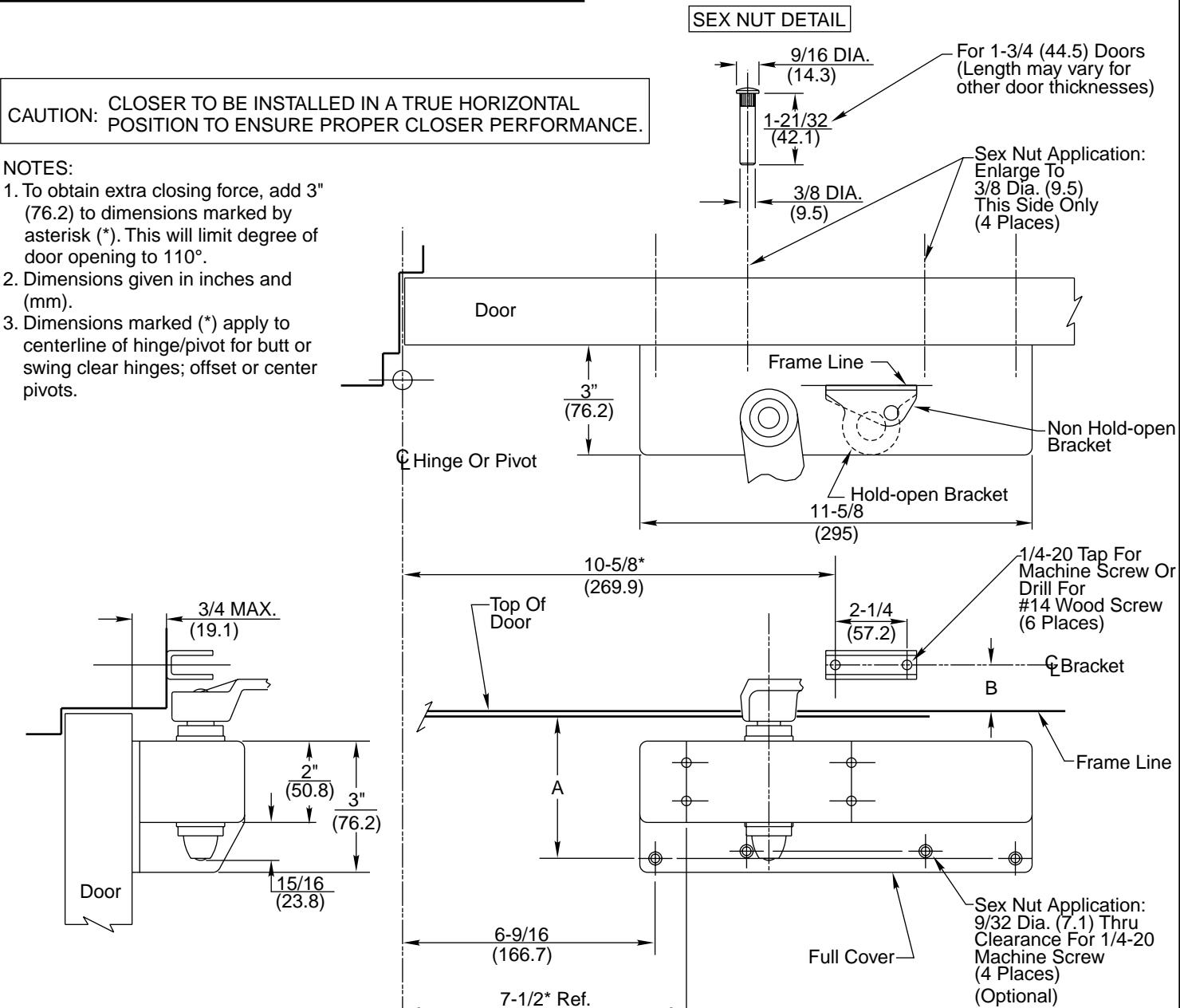

Corbin Russwin DC6000 Series DC6200, DC6400 Surface Door Closer with or without A1 Arm Regular Mounting with Con…_T30994 diag

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC6200 Series DC6400 Series Surface Door Closer Regular Mounting (with or without A1) For Mounting with Concealed Door Holder

(190.5)

www.corbinrusswin.com Do Not Scale Drawing Supersedes Dr T30994 01-05
