Corbin Russwin DC5200 Cam Action Door Closer Sell Sheet_46022 diagram on page 1

The DC5200 is designed to make doors easy to open while maintaining enough force to close doors securely. The single closer and track assembly can support up to four mounting positions and has a unique adjustable arm to simplify installation.

Corbin Russwin DC5200 Cam Action Door Closer Sell Sheet_46022 image on page 2

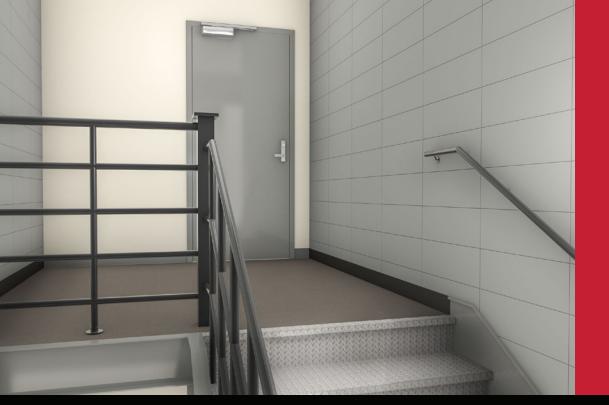

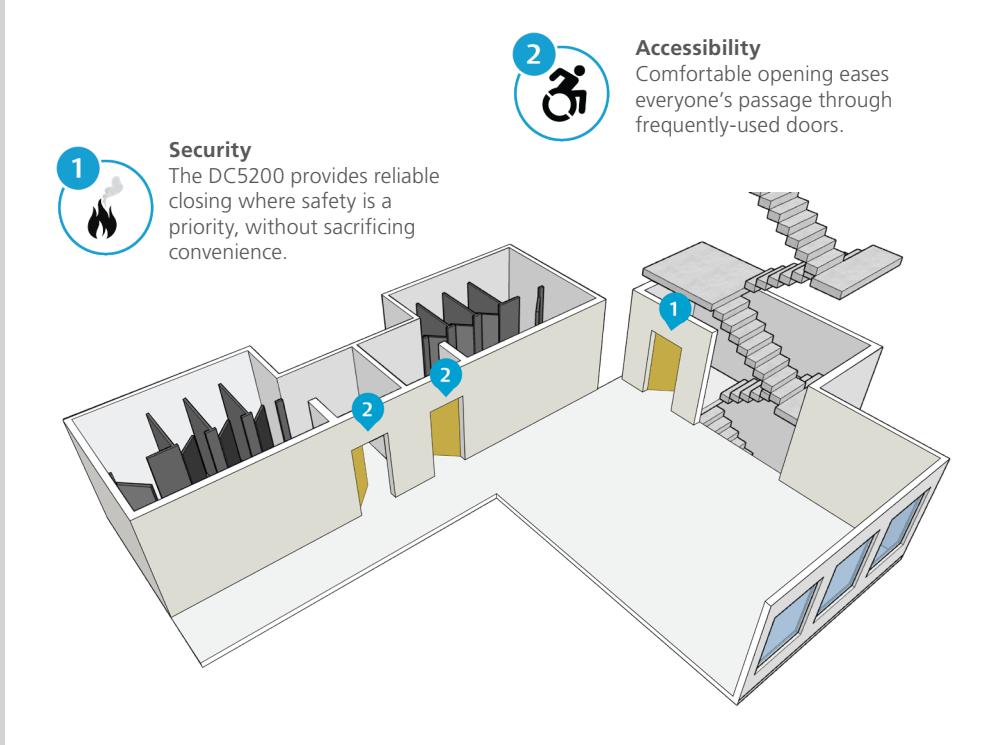

Ideal for applications where both security and accessibility are a priority.

ADDITIONAL FEATURES

  • Adjustable spring size 1 through 6
  • Door weight: 250 lbs.
  • Non-handed
  • Cast aluminum body
  • Forward facing valves
  • 30-year warranty

Corbin Russwin DC5200 Cam Action Door Closer Sell Sheet_46022 image on page 2

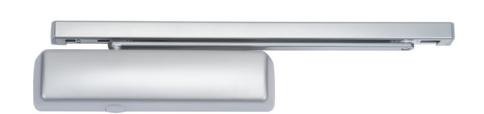

Corbin Russwin DC5200

Corbin Russwin DC5200 Cam Action Door Closer Sell Sheet_46022 diagram on page 2
