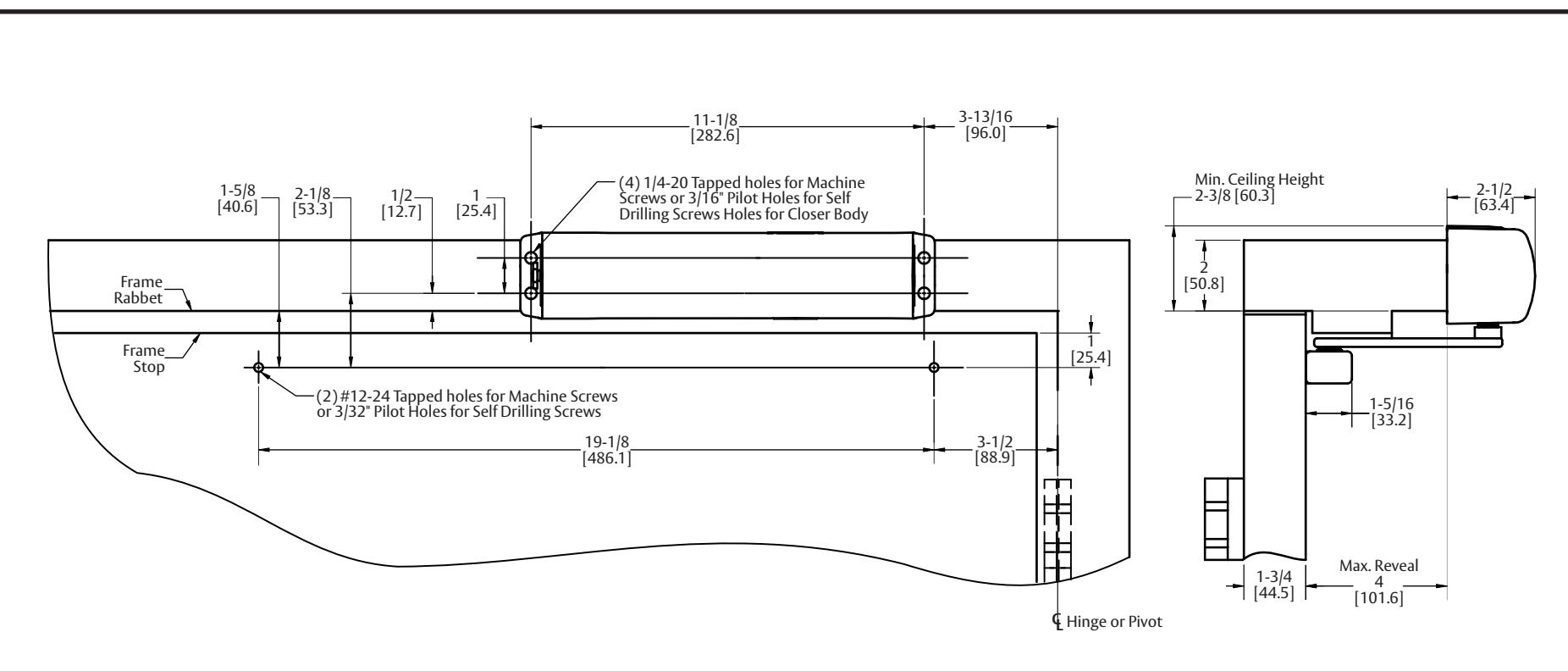

Corbin Russwin DC5200 Cam Action Door Closer Push Side Application Frame Mounted Template_T31280 diagram on page 1

NOTES:

  • Do not scale drawing. Blocking in wood frames must be securely fastened to header to support closer body.
  • 3. Hollow-metal doors require channel or box-type reinforcement when through-bolt mount is specified.
  • Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" [2.66mm] unless otherwise noted.
  • Max. degree of opening: 110° (conditions permitting). Right hand door shown, Left hand opposite.
  • Minimum ceiling clearance for closer cover: 2-3/8" [60.3 mm].
  • Auxiliary stop required.
  • 9. All diménsions in inches [mm].

DC5200 Cam Action Door Closer Push Side Application Frame Mounted

Corbin 77

ASSA ABLOY

TEMPLATE NUMBER T31280

DATE 10/23

Approved 2023-10-10
