NOTES:

• 1. Do not scale drawing.
• 2. Blocking in wood frames must be securely fastened to header to support closer body.
• 3. Hollow-metal doors require channel or box-type reinforcement when through-bolt mount is specified.
• 4. Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" [2.66mm] unless otherwise noted.
• 5. Max. degree of opening: 140° [conditions permitting].
• 6. Right hand door shown, Left hand opposite.
• 7. Minimum ceiling clearance for closer cover: 3-1/2" [88.9 mm]
• 8. To install the closer on a frame that is less than 3" [76.2mm], refer to template T31278, available for download from CorbinRusswin.com.
• 9. All dimensions in inches [mm].

*Minimum Ceiling Height

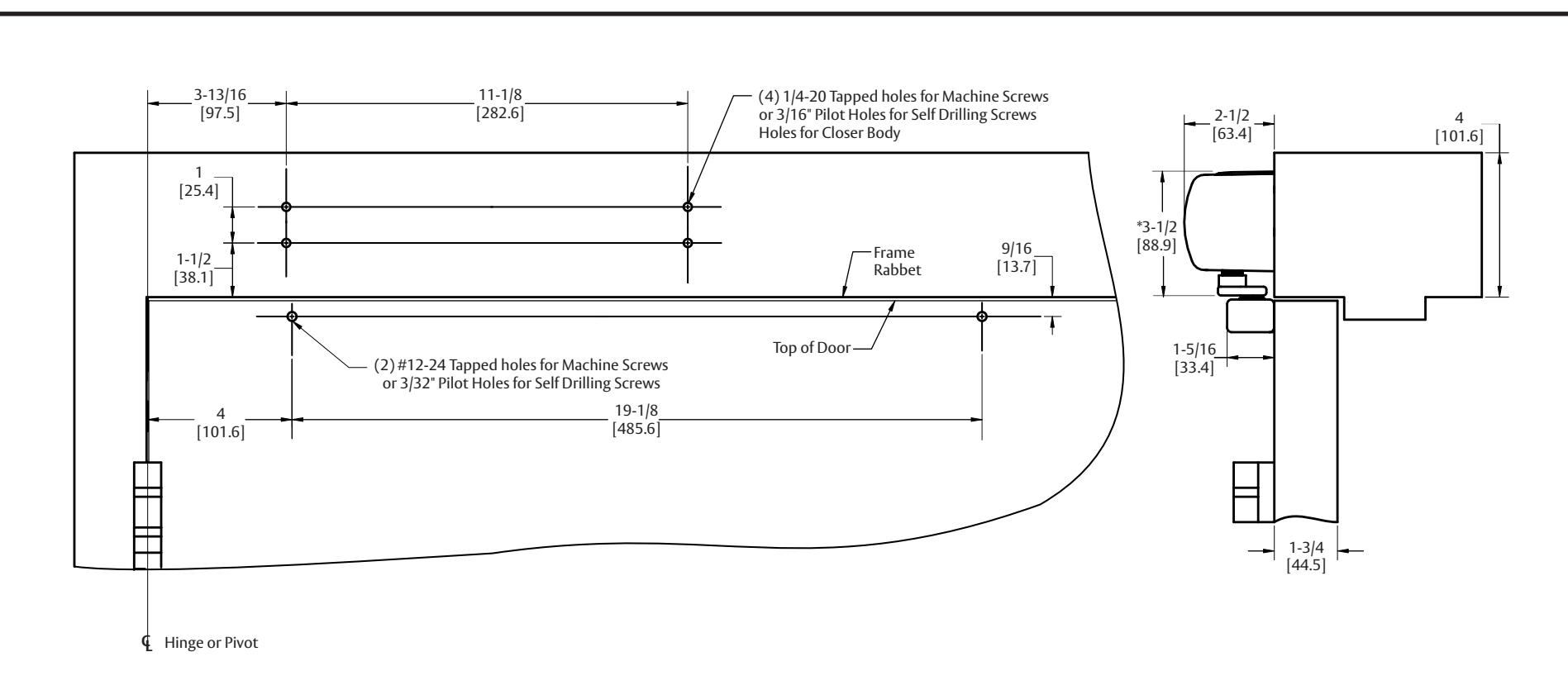

DC5200 Cam Action Door Closer, Pull Side Application, Frame Mounted; Frame Face 3" [76.2mm] or Greater

TEMPLATE NUMBER REV DATE

T31276 1 10/23

Approved 2023-10-10
