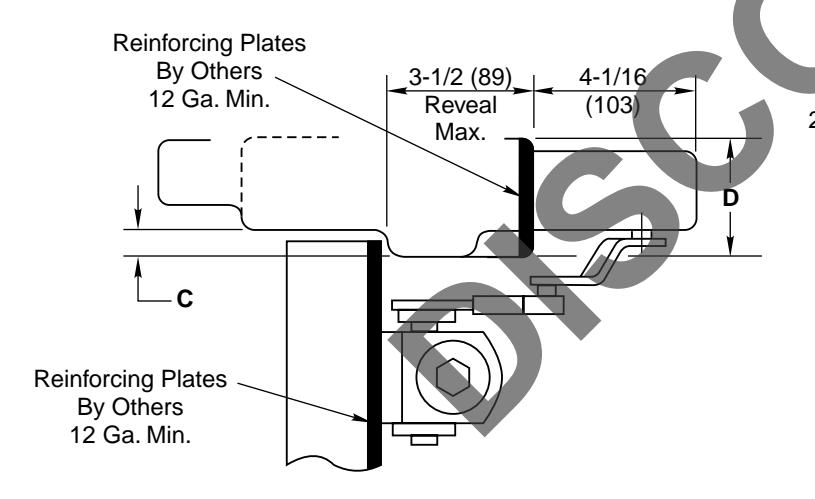

Closer Cover Dimensions 2-3/16" x 13" x 2-1/8" Projection (55.5) x (330) x (54)

С D
1/2 (12.7) 2-1/2 (63.5)
5/8 (16) 2-5/8 (67)
3/4 (19) 2-3/4 (70)

NOTES:

  • 1. Do not scale drawing.
  • 2. All dimensions are given in inches (mm).
  • 3. Right hand door shown.
  • 4. Door hanging means: Standard 4", 4-1/2", 5" Butt Hinges or 3/4" Offset Pivots.
  • 5. Other hanging means require special installation instructions. Contact factory.

Safegard With Detector DC46935 Push Side Mounting 85° Thru Maximum Degree Hold Open
