Corbin Russwin DC46900 Series DC46930 (with Detector) Safeguard Door Closers 85 Thru Maximum Degree Hold Open P…_T30661 diagr

NOTES:

  • 1. Do not scale drawing.
  • 2. All dimensions are given in inches (mm).
  • 3. Right hand door shown.
  • 4. Door hanging means: Standard 4", 4-1/2", 5" Butt Hinges or Swing Clear Hinges or 3/4" Offset Pivots.
  • 5. Other hanging means require special installation instructions. Contact factory.
  • 6. For 90° Hold Open 3-3/8" (85.7) clearance required between pull side of door and wall.

Swing Clear - 135° Max.

Butt Size (W) Maximum Opening
Flush 1/8" Reveal
4-1/2 150° 145°
5 170° 165°
6 180° 175°

Determine Hold Open Degree and Select "B" and "C" Dimensions Below

H.O. Range В С
85° – 135° 4-1/2
(114.3) 		11-1/2
(292)
130° – 180° 2-1/2
(63.5) 		9-1/4 (235)

CAUTION: Do not exceed 135° in 85° - 135° range "B" and "C" taken from centerline of butts or pivots.

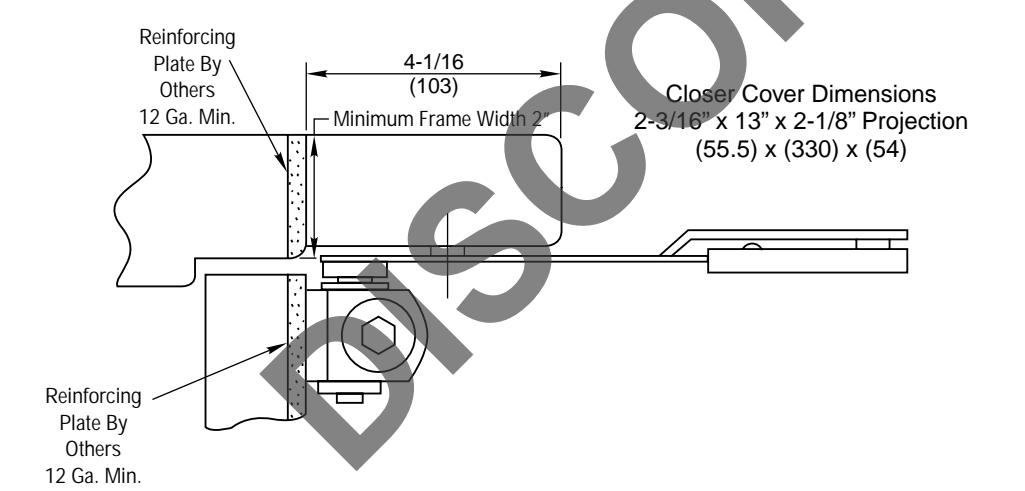

Safegard With Detector DC46930 Pull Side Mounting 85° Thru Maximum Degree Hold Open

Corbin Russwin DC46900 Series DC46930 (with Detector) Safeguard Door Closers 85 Thru Maximum Degree Hold Open P…_T30661 image

Do Not Scale Drawing

T30661 Dr.

T30661-1

Date 4-01
