NOTES:

• 1. Do not scale drawing.
• 2. All dimensions are given in inches (mm).
• 3. Left hand door shown.
• Hollow metal doors require channel or box type reinforcement whenthru bolt mount is specified.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
• 6. Prepare all mounting holes for:
  • 1/4-20 Machine Screws
  • . No. 14 Wood Screws or
  • Optional 3/8 (9.5mm)Sex-Nuts

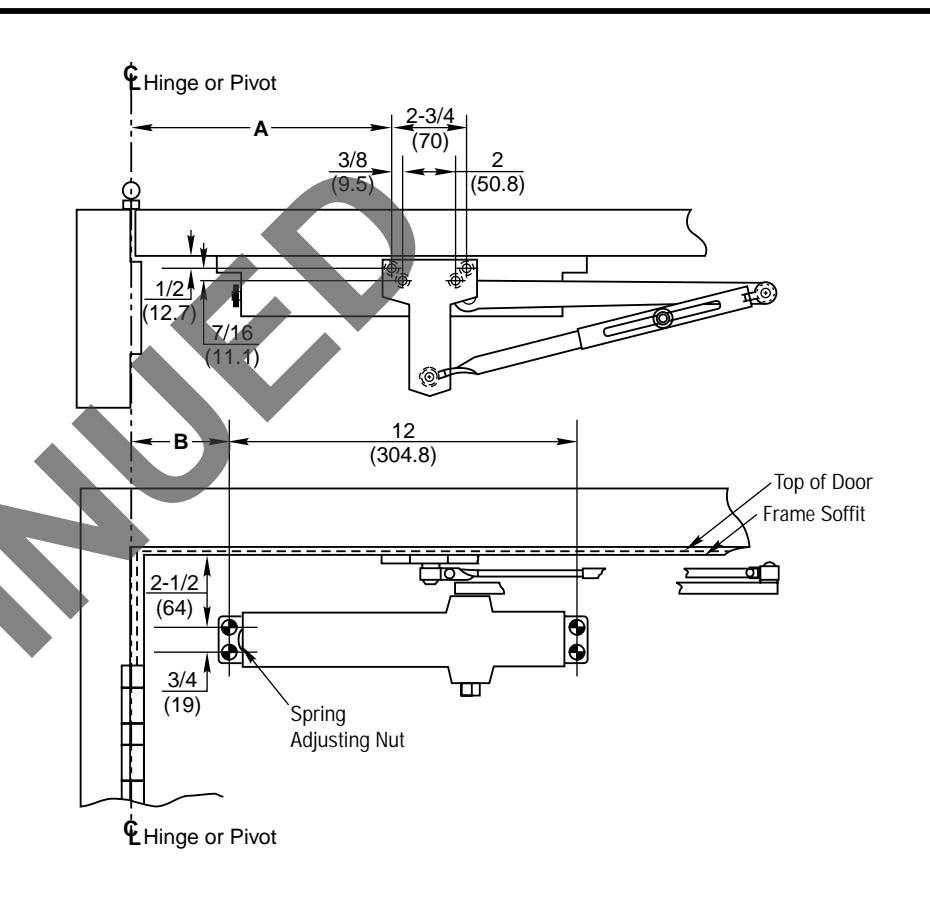

Door Opening	A Soffit Plate	B ⊕ Closer
Up to 120°	9-1/2 (241)	3-3/4 (98)
121° – 180°	6-7/8 (175)	1-1/4 (32)

Safegard Without Detector DC46928

Holder Pull Side/Closer Push Side 85° Thru Maximum Degree Hold Open
