Corbin Russwin DC3000 Series DC3220 Surface Door Closers Top Jamb Mounting Template

Original Source Document Full PDF Version

MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) tupe doors.

RHSHOWN OPPOSITE


TEMPLATE CROSS REFERI					ENCE
	DESCRIPTION				TEMPLATE
	DC3220,	DC3620	х	M80	T30622
	DC3220,	DC3620	х	M80	T30623

CLOSER TO BE INSTALLED IN A TRUE HORIZONTAL POSITION TO ENSURE PROPER CLOSER PERFORMANCE. CAUTION:


DESCRIPTION	C
DC3620	10-3/8 (263.5)
DC3220	11-5/8 (295.3)
FULL COVER	11-3/0 (583.3)

	OPENING MAXIMUM	A	В	HINGE CONDITION
	110°		13-3/8 (339.7)	HINGES
	180°	5-7/8 (149.2)	10-3/8 (263.5)
Æ	140°		11-7/8 (301.6)
6	140°		11-7/8 (301.6)	CENTER HUNG

1-21/32 (42.1)-FOR 1-3/4 (44.5)

NOTES:

DIMENSIONS GIVEN IN INCHES AND (MM).
MINIMUM 1-3/4 (44.5) REQUIRED FOR TOP JAMB AND TOP RAIL.
DIMENSIONS "A" & "B" APPLY TO CENTERLINE OF HINGE/PIVOT FOR BUTT, SWING CLEAR, OFFSET AND CENTER HUNG PIVOTS.

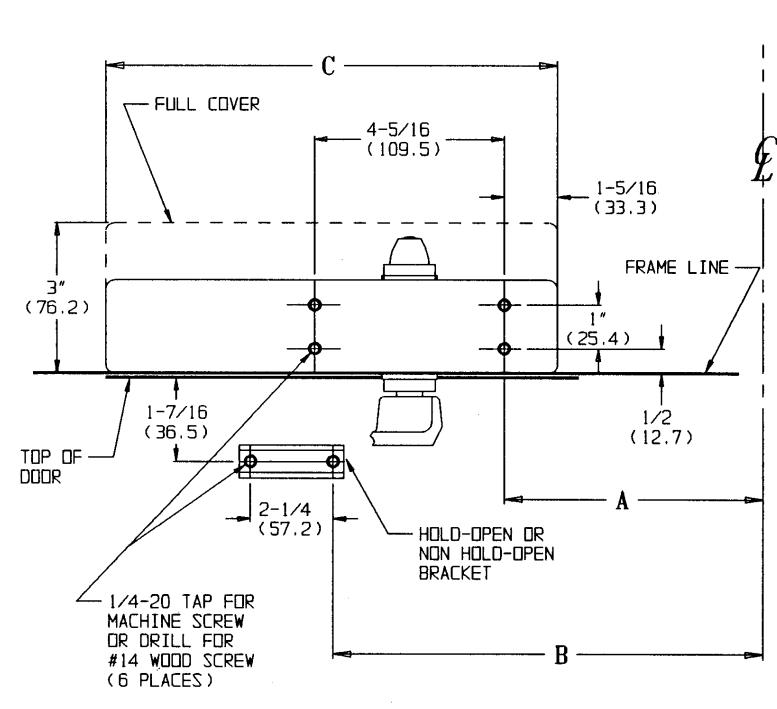

Corbin Russwin DC3000 Series DC3220 Surface Door Closers Top Jamb Mounting Template_T30621 diagram on page 1

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction

DC3220 SERIES DC3620 SERIES

SURFACE DOOR CLOSER TOP JAMB MOUNTING

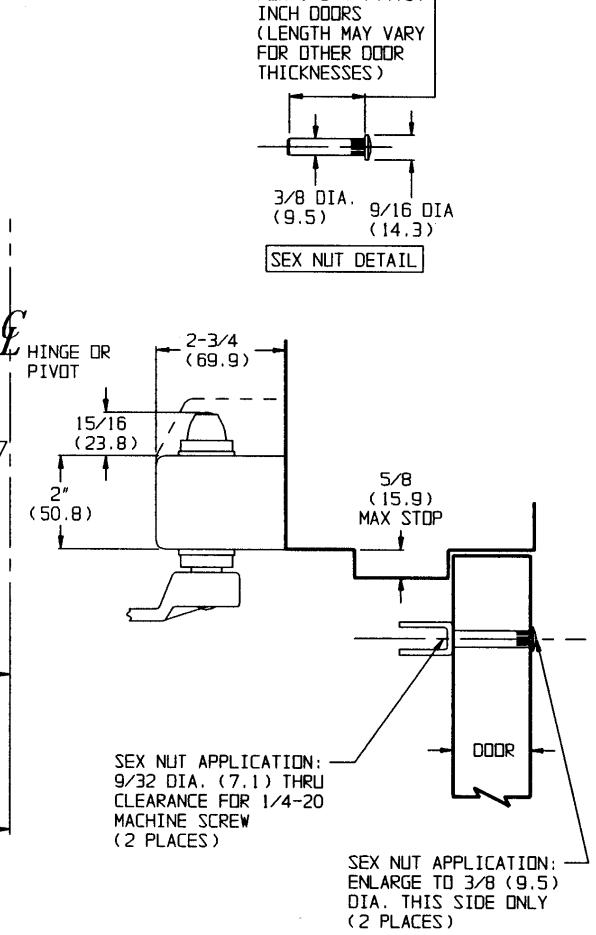

Corbin Russwin DC3000 Series DC3220 Surface Door Closers Top Jamb Mounting Template_T30621 diagram on page 1

www.corbinrusswin.com DO NOT SCALE DRAWING

VT30377 ΚJ TEMPLATE

5/10/93
