MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) tupe doors.

RH SHOWN OPPOSITE

TEMPLATE CROSS REFERE NCE
DESCRIPTION TEMPLATE
DC3220, DC3620 T30621
DC3220, DC3620 x M80 T30623
DESCRIPTION С D
DC3620 x M80 2-3/8 (60.3) 10-3/8 (263.5)
DC3220 x M80 3" (76.2) 11-5/8 (295.3)
FULL COVER 3 (70.2) 11 3/0 (293.3/
OPENING
MAXIMUM 		A В HINGE
CONDITION
110° 8" (203.2) 13-3/8 (339.7) BUTTS, OFFSET
180* 5" (127) 10-3/8 (263.5) PIVOTS, AND
SWING CLEAR
₹ 140° 40° 6-1/2 (165.1) 11-7/8 (301.6) HINGES
CENTER HUNG

PLATE LOWER

CLOSER TO BE INSTALLED IN A TRUE HORIZONTAL CAUTION: POSITION TO ENSURE PROPER CLOSER PERFORMANCE.

NOTES:

  • DIMENSIONS GIVEN IN INCHES AND (MM).
  • 1" (25.4) MINIMUM TOP JAMB REQUIRED FOR MOUNTING PLATE.
  • TO MOUNT PLATE ON JAMBS NARROWER THAN 2-3/4 (69.9), DECREASE 2" DIMENSION AND INCREASE 2-7/16 DIMENSION EQUALLY.
    • FOR 1-3/4 (44.5) MINIMUM JAMBS WITH REQUIRED CLEARANCE ABOVE CLOSER, MOUNT CLOSER DIRECTLY TO JAMB WITHOUT PLATE.
    • MINIMUM TOP RAIL: ADD 5/16 (7.9) TO ARM BRACKET DIMENSION.
    • DIMENSIONS "A" & "B" APPLY TO CENTERLINE OF HINGE/PIVOT FOR BUTT, SWING CLEAR, OFFSET AND CENTER HUNG PIVOTS.

1-21/32 (42.1)-FOR 1-3/4 (44.5) INCH DOORS (LENGTH MAY VARY FOR OTHER DOOR THICKNESSES) 3/8 DIA. 9/16 DIA (9.5)(14.3) SEX NUT DETAIL

MOUNTING HOLES 2-3/4 (6.4) (69.9) 15/16 (23.8) (50.8)5/B (15.9) 4-3/16 MAX STOP (106.4)1/4 (6.4)SEX NUT APPLICATION: 9/32 DIA. (7.1) THRU CLEARANCE FOR 1/4-20 SEX NUT APPLICATION: ENLARGE TO 3/8 (9.5) DIA. THIS SIDE ONLY MACHINE SCREW

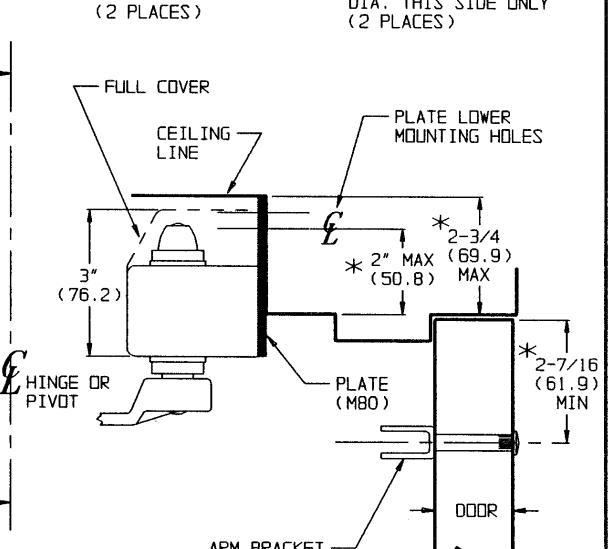

Corbin Russwin DC3000 Series DC3220 Surface Door Closers Top Jamb Mounting 188F65 Plate Template_T30622 diagram on page 1

Corbin Russwin DC3000 Series DC3220 Surface Door Closers Top Jamb Mounting 188F65 Plate Template_T30622 diagram on page 1

RESPONSIBILITY

(6 PLACES)

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type. material, or method of construction.

DC3220 SERIES BY M 8 0 DC3620 SERIES BY M80

SURFACE DOOR CLOSER TOP JAMB MOUNTING BY PLATE

Corbin Russwin DC3000 Series DC3220 Surface Door Closers Top Jamb Mounting 188F65 Plate Template_T30622 image on page 1

DO NOT SCALE DRAWING

VT30377 TEMPLATE 6/3/93
