TEMPLATE CROSS REFERENCE
DESCRIPTION TEMPLA
DC3210, DC3610 x A4, A5 & M80	T30620
DC3210, DC3610 x A3	T30617
DC3210, DC3610 x A2	T30618

1	DESCRIPTION	D
ı	DC3610	10-3/8 (263.5)
ı	DC3210	11-5/8 (295.3)
ı	FULL COVER	11 3/0 (233.37

DPENING MAXIMUM	A	В	C MINIMUM
85°	13-3/4 (349.3)	12-9/16 (319.1)	28-5/8 (727.1)
90°	12-13/16 (325.4)	11-5/8 (295.3)	27-5/8 (701.7)
100°	11-1/4 (285.8)	10-1/16 (255.6)	26-1/8 (663.6)
110°	9-15/16 (252.4)	8-3/4 (222.3)	24-3/4 (628.7)

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

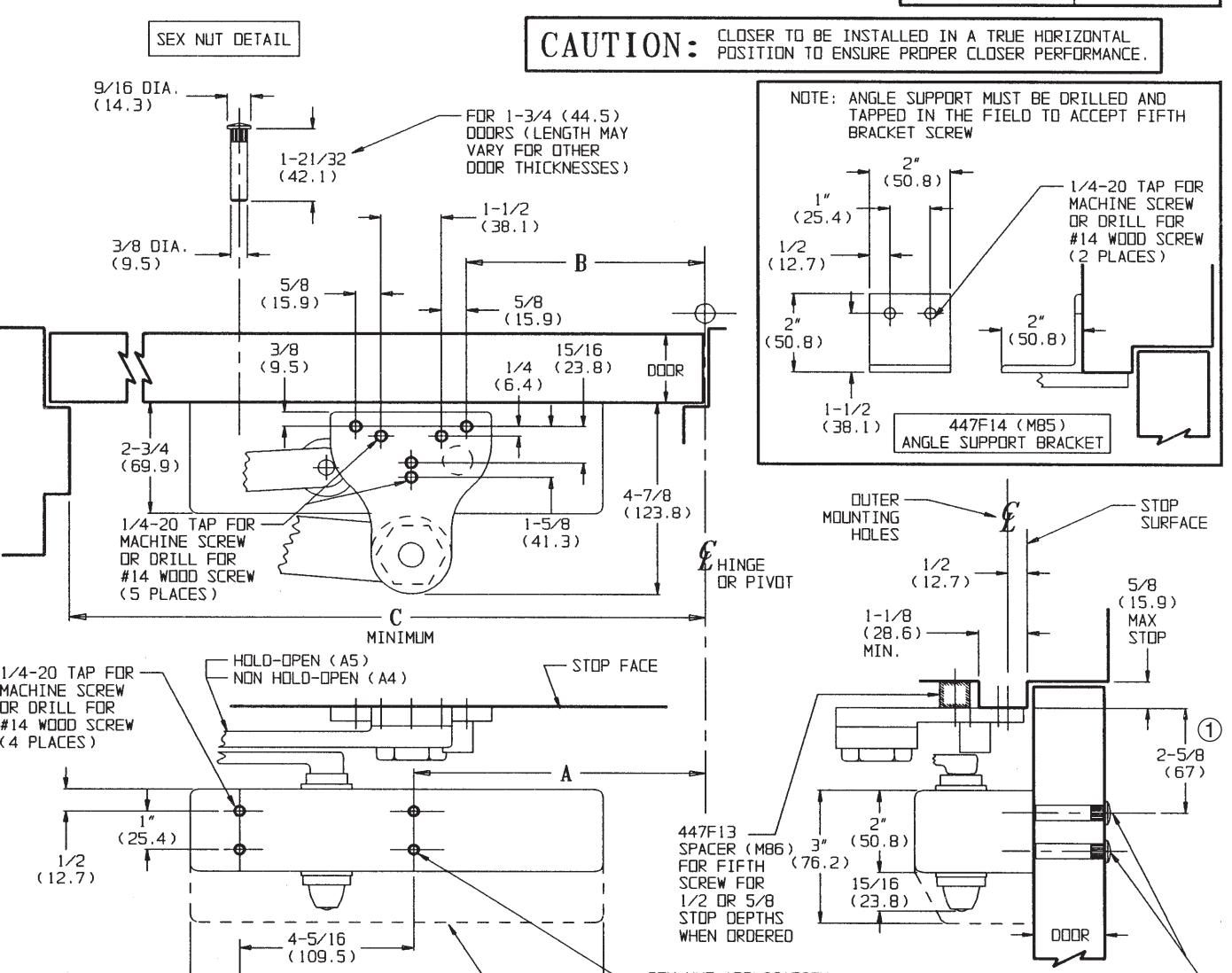

DC3210 Series x A4 & A5

DC3610 Series x A4 & A5 Surface Door Closer Parallel Arm Mounting By Backstop Arm

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES DO NOT SCALE DRAWING T30619

TEMPLATE NUMBER

T30619-1 0 -10 4 DATE
