← Corbin
|
OPENING
MAXIMUM |
A | В | APPLICATION |
|---|---|---|---|
| 180° |
*9-1/16
(230.2) |
*8-3/16
(208) |
REGULAR |
| 100 |
9-1/16
(230.2) |
7-9/16
(192.1) |
Ł |
| TEMPLATE CROSS REFER | SENCE | |
|---|---|
| DESCRIPTION | TEMPLATE |
| DC3210, DC3610 x A2 | T30618 |
| DC3210, DC3610 x A4 & A5 | T30619 |
| DC3210, DC3610 x A4, A5 & M80 | T30620 |
| DESCRIPTION | С | |
|---|---|---|
| DC3610 | 10-3/8 (263.5) | |
| DC3210 | 11-5/8 (295.3) | |
| FULL COVER | ||
RESPONSIBILITY
DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

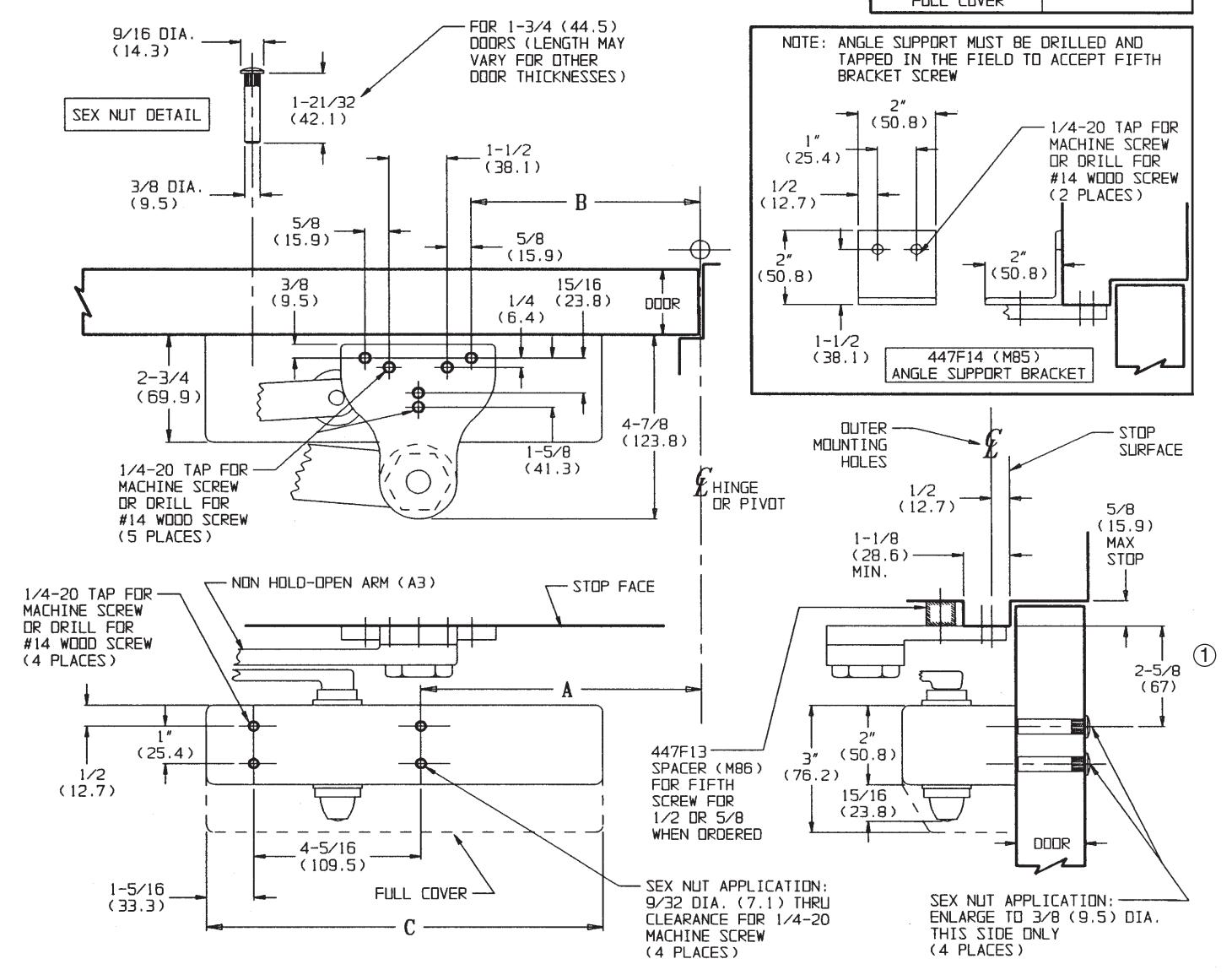

DC3210 Series x A3
DC3610 Series x A3 Surface Door Closer Parallel Arm Mounting By Heavy Duty Arm
ASSA ABLOY
www.corbinrusswin.com
SUPERSEDES DO NOT SCALE DRAWING T30617
TEMPLATE NUMBER
T30617-1 0 -10 4 DATE
