TEMPLATE CROSS REFERENCE
DESCRIPTION TEMPLATE
DC3210, DC3610 x A3	T30617
DC3210, DC3610 x A4 & A5	T30619
DC3210, DC3610 x A4, A5 & M80	T30620

DESCRIPTION	A
DC3610	10-3/8 (263.5)
DC3210	11-5/8 (295.3)
FULL COVER

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

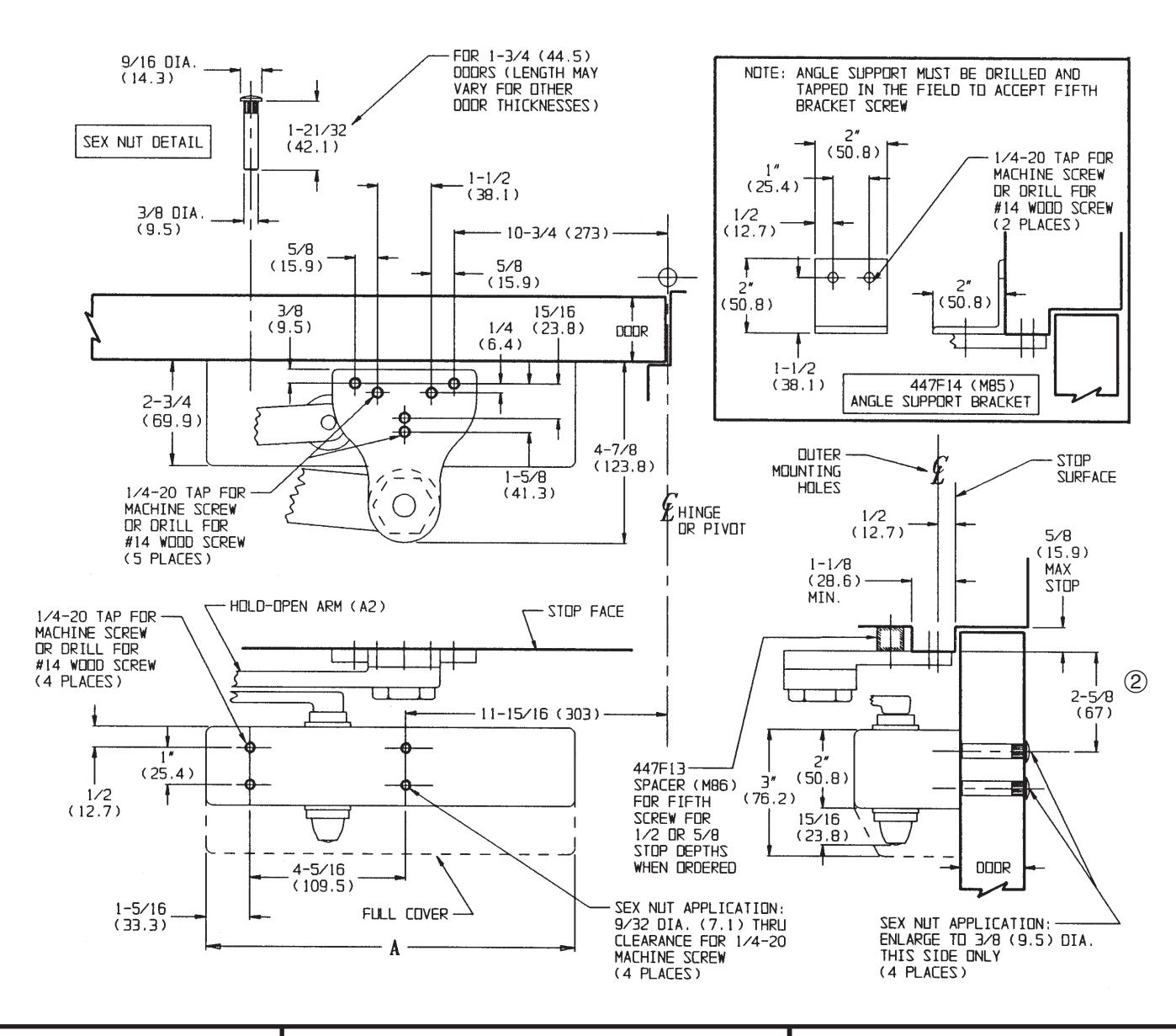

DC3210 Series x A2 DC3610 Series x A2

Surface Door Closer Parallel Arm Mounting By Heavy Duty Hold-Open Arm

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES DO NOT SCALE DRAWING T30618-1

TEMPLATE NUMBER

T30618-2 0 -10 4 DATE
